# Hierarchical Grain Engineering: The Micro-Architecture of Atomic Armor

Hierarchical grain engineering in laser cladding manipulates melt-pool thermal conditions—cooling rate, thermal gradient, and solidification velocity—to create a designed microstructure: fine equiaxed grains at the surface for toughness, columnar grains in the bulk for creep resistance, and grain boundary engineering to control carbide precipitation, so a component's mechanical properties are tailored by grain size, shape, and orientation as well as alloy chemistry.

Home

![High-precision Laser Cladding Hierarchical Grain Engineering system showing laser beam path and component integration.](https://www.intouchray.com/wp-content/uploads/2026/03/laser-cladding-hierarchical-grain-engineering.jpg)

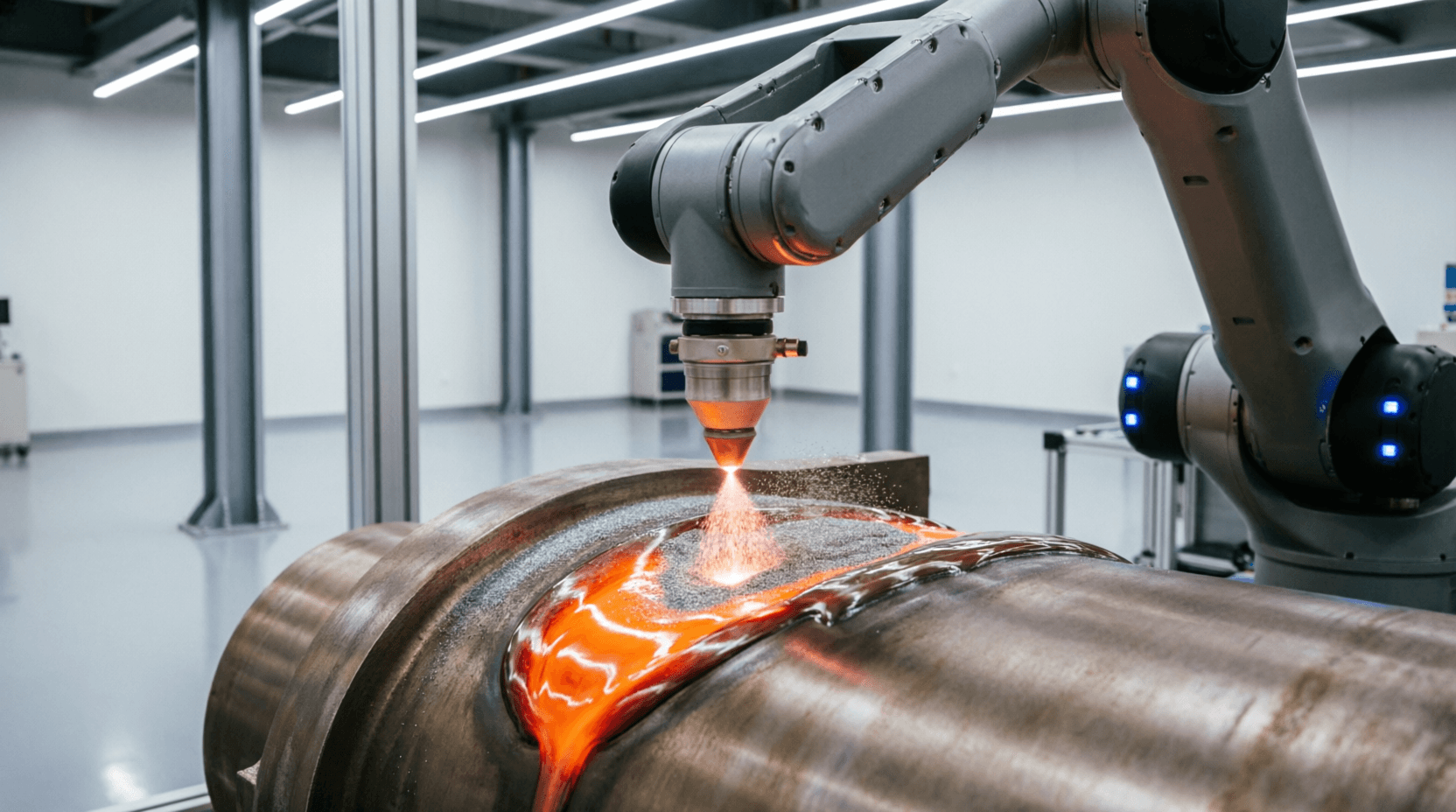

![Laser cladding machine depositing metal powder onto a large industrial component, laser melt pool gl](https://www.intouchray.com/wp-content/uploads/2026/03/intouchray-4712-450-laser-cladding-machine-depositing-metal.png)

## What Is the Physics Behind Grain Control in Laser Cladding?

Laser cladding offers unique advantages for microstructural engineering because the energy input is precisely controllable in both space and time, and three parameters govern the resulting grain structure. Cooling rate (10²–10⁶ K/s) matters first: higher cooling rates produce finer grains via increased nucleation density. Intouchray's EHLA-capable systems achieve cooling rates up to 10⁵ K/s at the clad surface, producing grain sizes of 2–5 μm ASTM 12–14 compared to 20–50 μm ASTM 6–8 for conventional laser cladding.

The thermal gradient (G) and growth rate (R) then determine solidification morphology. The G/R ratio decides the outcome: high G/R (>10⁷ K·s/m²) promotes planar/columnar growth for directional properties, while low G/R favors equiaxed grains for isotropic toughness. Intouchray's programmable scan strategies switch between these regimes within a single component by varying laser power and traverse speed across different regions. Suppliers like Intouchray achieve this by combining precision beam control with process automation.

![Laser cladding for power generation components](https://www.intouchray.com/wp-content/uploads/2026/07/laser-cladding-power-gen-process.png)Laser cladding for power generation components — Hierarchical Grain Engineering: The Micro-Architecture of At

## How Does Grain Boundary Engineering Improve the Material?

Grain boundary engineering improves material performance through post-cladding heat treatment at 980–1,050°C for Inconel 625, which promotes coincident site lattice (CSL) boundary formation. This treatment increases the fraction of "special" grain boundaries (Σ ≤ 29) from 35% to 65%. The practical result is a measurable gain in service performance: intergranular corrosion resistance improves by a factor of 4 in chloride environments. Combined with the thermally controlled solidification described above, this heat-treatment step completes the hierarchical approach, allowing the grain structure—and the boundaries between grains—to be designed deliberately rather than left to chance during the cladding process.

## Which Applications Use Hierarchical Grain Structures?

Gas turbine disks and nuclear component repair are two leading applications. For gas turbine disks, a graded microstructure is used: fine equiaxed grains (ASTM 12) at the bore provide high-cycle fatigue resistance, transitioning to coarser grains (ASTM 8) at the rim for creep resistance—all produced in a single cladding operation with programmed power decay across the radial profile.

Nuclear repair presents a different challenge. Cladding restoration of irradiated stainless steel components requires controlled grain size to match the substrate properties and avoid preferential corrosion at dissimilar microstructure interfaces. Real-time thermal monitoring ensures the as-clad grain size matches the substrate within ±1 ASTM number.

## How Is Grain Structure Verified Non-Destructively?

Electron backscatter diffraction (EBSD) on witness coupons processed simultaneously with production components provides grain size and orientation data. For production parts, ultrasonic backscatter measurement correlates grain size with acoustic attenuation coefficient, calibrated against EBSD reference standards for each alloy system. This two-tier approach means quality can be checked without cutting up finished components, while the witness coupons provide direct microstructural confirmation that the process parameters delivered the designed grain structure for every production run.

## Can Hierarchical Grain Structures Be Applied to Repair Existing Components?

Yes, hierarchical grain structures can be applied to repair existing components, but the substrate grain structure constrains the initial solidification. A buffer layer deposited at parameters matching the substrate's thermal properties ensures epitaxial grain growth across the interface before transitioning to the designed microstructure in subsequent layers. This makes the technique suitable for restoring service-worn or irradiated parts rather than only for new manufacture. For further reading on related cladding topics, see [Swarm Intelligence in Cladding Robotics](https://www.intouchray.com/swarm-intelligence-cladding-robotics/) and [Subsea Cladding: Protecting the Deep-Sea Frontier](https://www.intouchray.com/subsea-laser-cladding-extreme-pressure-protection/).

**References and standards.** The specifications discussed in this article align with frameworks maintained by the following industry bodies:

- [ISO](https://www.iso.org/standards.html) — ISO 9712 NDT personnel qualification and ISO 16810 ultrasonic testing.
- [ASNT](https://www.asnt.org) — American Society for Nondestructive Testing — SNT-TC-1A certification practice.
- [ASTM International](https://www.astm.org) — ASTM Committee E07 nondestructive-testing standards and test methods.
