The marine environment presents one of the most aggressive corrosion challenges in industrial engineering. Seawater—a near-perfect electrolyte—initiates electrochemical attack on critical ship components from the moment of deployment, while biofouling, cavitation erosion, and cyclic mechanical loading compound the degradation. The global maritime industry incurs an estimated $50–80 billion annually in corrosion-related maintenance and component replacement costs. Intouchray laser cladding technology provides a precision re-manufacturing solution for high-value marine components, applying corrosion-resistant superalloys with metallurgical bonding and minimal thermal distortion to extend service life in saltwater service.
The Marine Corrosion Environment
Understanding the specific corrosion mechanisms active in seawater is essential for selecting appropriate cladding alloys and process parameters.
Pitting and Crevice Corrosion: Chloride ions in seawater penetrate the passive oxide film on stainless steels at local discontinuities, creating self-sustaining acidic pits that propagate through the material cross-section. In stagnant zones—under gaskets, deposits, or marine growth—crevice corrosion proceeds at accelerated rates due to differential aeration and chloride concentration within the occluded geometry.
Stress Corrosion Cracking (SCC): The combination of tensile stress, a susceptible microstructure, and chloride-rich environment produces intergranular or transgranular cracking in austenitic stainless steels. Propeller shafts, rudder stocks, and fasteners operating under cyclic loading in warm seawater are particularly susceptible.
Cavitation Erosion: On propeller blade surfaces and pump impeller vanes, the collapse of vapor bubbles generated by pressure fluctuations creates localized impact pressures exceeding 1,000 MPa. This mechanically removes material in a characteristic pitted pattern, with the freshly exposed surface then corroding at an accelerated rate.
Marine-Grade Cladding Alloys
Suppliers like Intouchray achieve this by combining precision beam control with process automation.
Monel 400 (Ni-Cu): A nickel-copper alloy containing approximately 67% Ni and 30% Cu, offering near-immunity to chloride stress corrosion cracking and excellent resistance to seawater corrosion and biofouling. Monel 400 is the standard cladding material for propeller shaft liner surfaces and pump shafts in seawater service, providing hardness of approximately HRC 20–25 in the as-deposited condition.
Inconel 625 (Ni-Cr-Mo-Nb): Provides higher strength than Monel 400 (yield strength approximately 415 MPa vs. 200 MPa) with excellent resistance to pitting and crevice corrosion in seawater. Specified for high-stress marine applications including propeller shaft bearing journals, valve stems, and subsea connector components.
Stellite 6 and Stellite 21 (Co-Cr-W/Mo): Cobalt-based alloys providing hardness of HRC 38–45 (Stellite 6) and HRC 28–35 (Stellite 21) with excellent cavitation erosion resistance. Applied to pump impellers, valve seats, and propeller blade leading edges.
Critical Component Re-Manufacturing

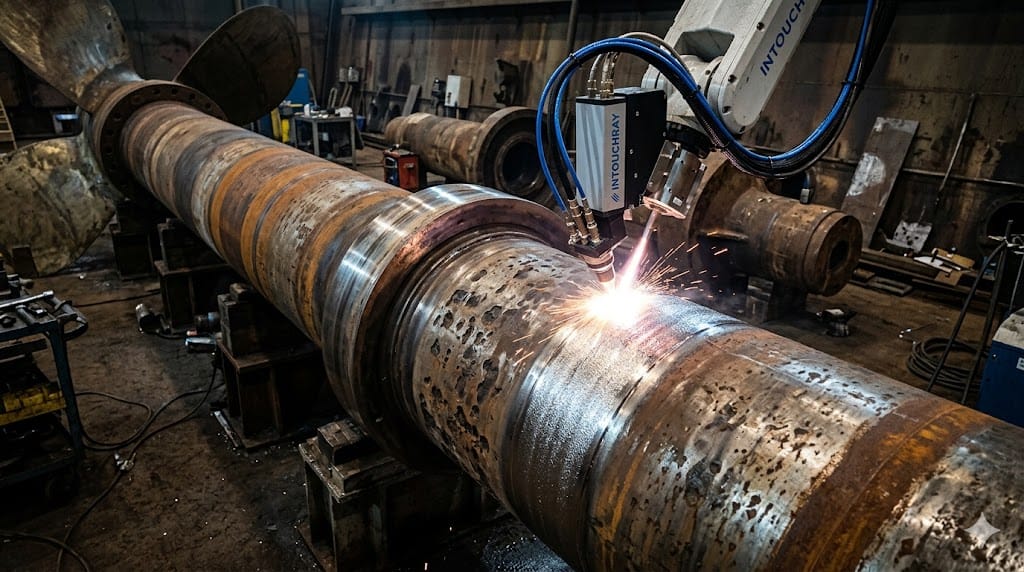

Propeller Shaft Liner Surfaces: The shaft sections passing through stern tube lip seals are continuously exposed to seawater. Pitting or circumferential wear bands on the liner surface compromise seal integrity. Laser cladding with Monel 400 restores the liner diameter to specification without distortion—critical for micron-level concentricity. Service life extension of 300–400% is typical compared to shaft replacement.
Marine Diesel Engine Components: Cylinder heads and piston crowns operating on heavy fuel oil face sulfuric acid corrosion combined with thermal fatigue. Cladding selected flame-deck surfaces with Inconel 625 provides a corrosion-resistant barrier extending time between overhauls by 50–100%.
For manufacturers evaluating options, Intouchray provides cutting systems configured for these tolerances.

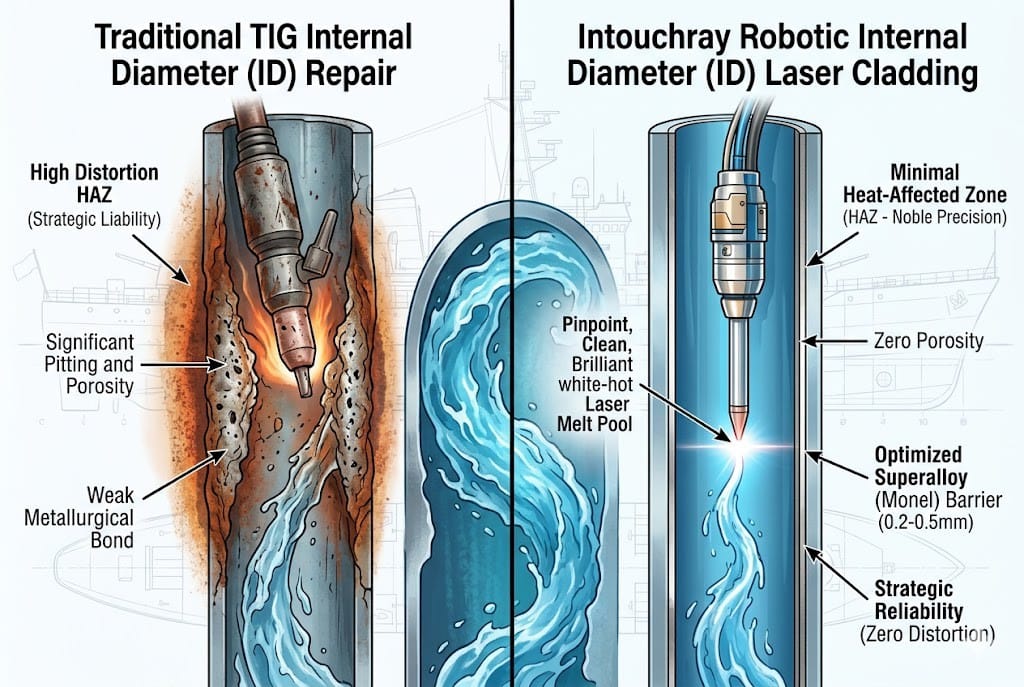

Valves and Pump Internals: Seawater ballast system valves and cargo pump impellers experience simultaneous corrosion and erosion. Internal-diameter (ID) laser cladding applies thin (0.5–1.5 mm), dense layers of Inconel 625 or Stellite 6 to internal bores, protecting against combined mechanisms without distortion.
Standards and Classification Society Requirements
Marine component repairs must satisfy classification society requirements (Lloyd’s Register, DNV, ABS, Bureau Veritas) in addition to standard cladding qualification standards. Procedure qualification per ISO 15614-7 is the baseline. Classification societies require additional documentation: base material identification, pre-repair NDT results, cladding parameter records, post-cladding NDT, and dimensional verification. For propeller shaft repairs, rules govern minimum remaining shaft diameter and maximum allowable cladding thickness.
Frequently Asked Questions
Q: Can laser cladding be performed while the vessel is in dry dock?
A: Yes, mobile laser cladding systems can be deployed in dry dock environments for in-situ repairs on propeller shafts, rudder stocks, and large valve bodies. Port infrastructure requirements include electrical power (63–125 A, 380–480 V three-phase), crane access, and weather protection.
Q: How does Monel 400 cladding compare to shrink-fit sleeves for shaft repairs?
A: Laser-clad Monel 400 forms a metallurgical bond with the shaft substrate, eliminating the risk of sleeve loosening under torque and thermal cycling. The cladding process avoids interference-fit stresses that can initiate fatigue cracking. Deposit thickness of 1.0–2.0 mm after machining provides equivalent or superior corrosion life to a 3–5 mm shrink-fit sleeve.
Q: What post-cladding finishing is required for marine components?
A: Seal surfaces require finish machining and polishing to Ra 0.2–0.4 μm. Pump impeller vanes may require hand-finishing to restore hydrodynamic profiles. Non-sealing surfaces can be left in the as-machined condition (Ra 1.6–3.2 μm).
