For decades, the shipbuilding industry relied almost exclusively on plasma and oxy-fuel cutting to process the massive steel plates required for hull construction and internal bulkheads. While these methods provided the necessary power to cut through thick carbon steel, they often resulted in significant thermal distortion, wide heat-affected zones (HAZ), and rough edges that required extensive manual grinding before welding.
Intouchray (intouchray.com) is leading the maritime industry into the “Laser Era.” By replacing traditional plasma systems with ultra-high-power fiber lasers (up to 60kW), shipyards can achieve Noble Precision (#13) on a massive scale, significantly reducing “fit-up” time and ensuring the Strategic Reliability (#19) necessary for vessels navigating the world’s harshest oceans.
1. Verticality and Edge Quality: Eliminating the Slag
In large-scale shipbuilding, a slight deviation in edge verticality across a 12-meter plate can lead to major alignment issues during block assembly.
Vertical Accuracy: Unlike plasma, which naturally creates a tapered or “slanted” edge, Intouchray’s high-power fiber lasers maintain near-perfect verticality. This allows for tighter tolerances when joining hull sections.
Dross-Free Cutting: The concentrated energy of the fiber laser vaporizes material so efficiently that dross (slag) is virtually eliminated. This removes the need for secondary grinding teams, allowing plates to move directly from the cutting bed to the assembly jig.
Technical Comparison
| Technical Parameter | Industrial Plasma Cutting System | High-Power Fiber Laser Cutting System |
|---|---|---|
| Maximum Cutting Thickness (Mild Steel) | 75 mm | 50 mm |
| Cutting Speed at 20 mm Thickness | 1.2 m/min | 4.8 m/min |
| Kerf Width | 3.5 mm | 0.3 mm |
| Dimensional Tolerance | ±1.5 mm | ±0.1 mm |
| Heat Affected Zone (HAZ) Width | 2.0 mm | 0.15 mm |
| Surface Roughness (Ra) | 12.5 µm | 3.2 µm |
| System Power Consumption | 45 kW | 18 kW |

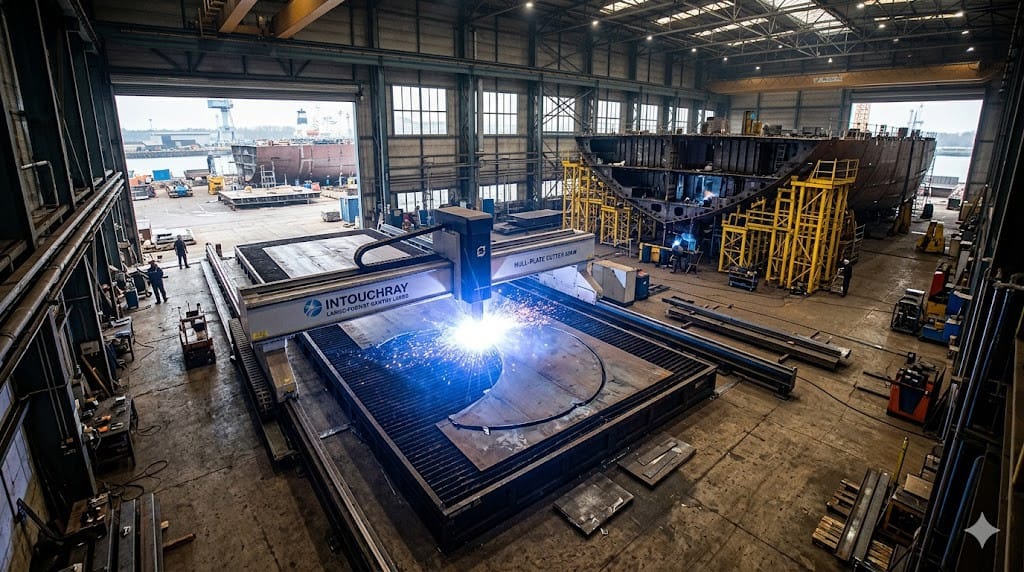

2. Large-Format Gantry Systems for Hull Plates
Shipyards process plates of extraordinary size. To accommodate this, Intouchray offers specialized large-format gantry systems.
Extended Bed Dynamics: Our systems are engineered for stability across wide spans, ensuring consistent beam quality whether cutting at the edge or the center of a 20-meter-long plate.
Nesting Efficiency: Digital control allows for the complex nesting of hull curves, stiffeners, and brackets on a single sheet, drastically reducing material waste compared to manual or older CNC plasma methods.
3. Precision Beveling for Massive Weld Joints
Every structural joint in a ship requires specific weld preparation to ensure it can withstand the immense pressure of the deep sea.
Integrated Beveling: By utilizing a 5-axis beveling head, shipbuilders can cut the final shape and the weld bevel (V, Y, or X-type) in a single continuous process.
Thermal Control: Because the laser’s heat is so localized, the risk of plate warping—a major issue with plasma—is minimized. This ensures that massive bulkheads remain flat, simplifying the robotic welding processes that follow.
Conclusion: A Sea Change in Fabrication
Article #93 marks the shift from “rough” heavy cutting to precision engineering in the maritime sector. By adopting fiber laser technology, shipyards are building faster, stronger, and more efficient vessels. In Article #94, we shift focus to the entrepreneurs of the industry: Job Shop Dynamics: Maximizing Versatility in Contract Cutting.
