Fiber Cutting Assist Gas Nitrogen Oxygen Compressed Air: A Practical Selection Guide
When evaluating a fiber laser cutting machine, buyers typically prioritize laser power, positioning accuracy, and automation features. However, one critical variable that directly dictates daily performance is often underestimated: the assist gas.
Assist gas is far more than a simple consumable. It fundamentally determines molten metal evacuation, edge stability, surface finish, and ultimately, the cost per part. Selecting the appropriate medium can yield cleaner edges, higher throughput, superior surface finishes, reduced secondary operations, and consistent production runs. Conversely, a mismatched gas choice leads to excessive dross, oxidized edges, poor aesthetics, inflated operating expenses, and process instability.
For modern sheet metal laser cutting and tube laser cutting applications, the three standard options are nitrogen, oxygen, and compressed air. Each possesses distinct chemical and physical properties suited to specific materials, thicknesses, and business models. Understanding these distinctions is vital for any manufacturer aiming to maximize their CNC laser cutter investment.
The Functional Role of Assist Gas in Laser Processing

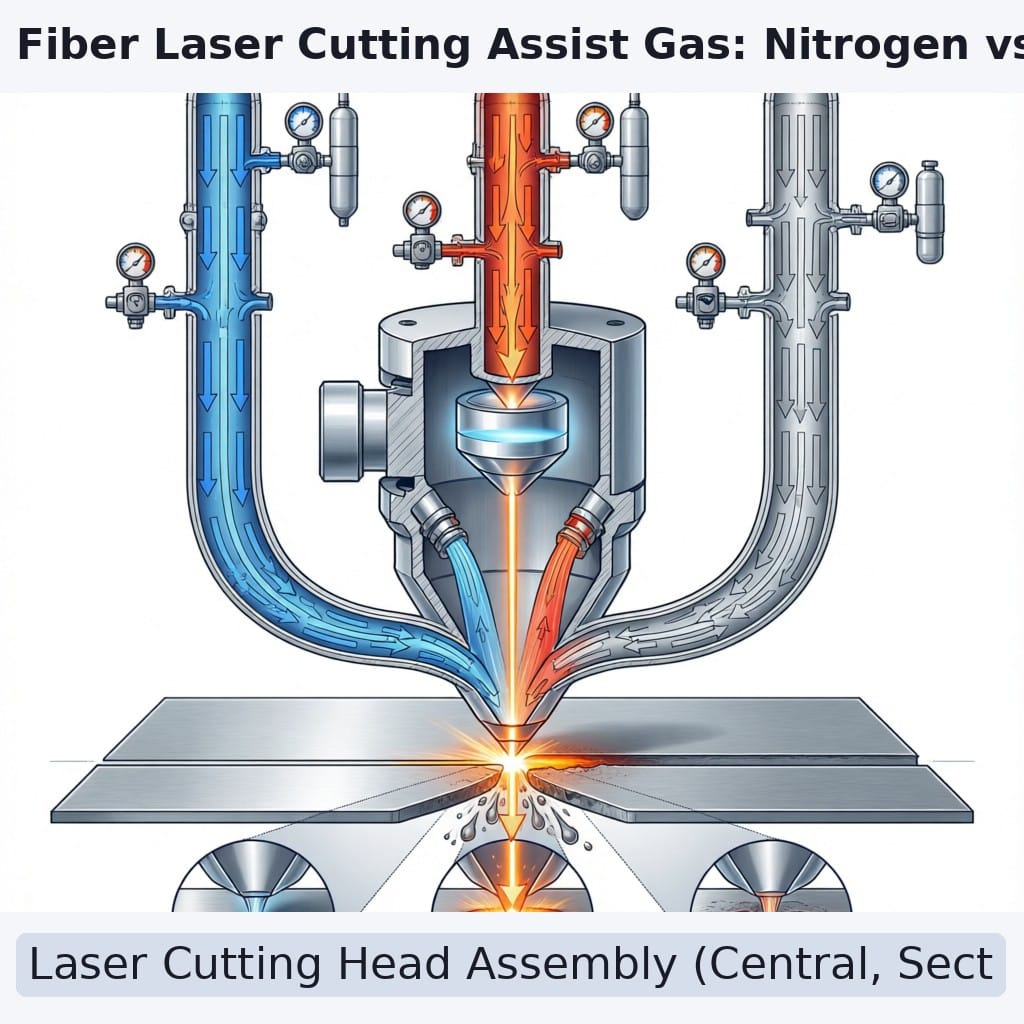

During fiber laser cutting, the focused beam delivers intense energy density that rapidly melts the workpiece. Simultaneously, high-pressure gas is delivered through the nozzle to eject this molten material from the kerf.
Process performance relies on the complex interaction between laser power, traverse speed, focal position, nozzle geometry, gas pressure, and material properties. The assist gas serves four primary functions:
- Molten Metal Evacuation: Adequate pressure prevents re-solidification within the cut zone, minimizing burr formation and ensuring dimensional accuracy.
- Process Stability: Consistent flow maintains steady cutting conditions, which is particularly crucial during high-speed processing or when piercing thick plates.
- Optical Protection: The gas stream creates a barrier against smoke, dust, and spatter, protecting the protective window and collimating lenses.
- Edge Chemistry Control: Different gases induce varying chemical reactions that dictate surface oxidation levels, weldability, and post-processing requirements.
Recognizing these roles clarifies why optimizing the cutting assist for metal is as important as selecting the laser source itself.
Evaluating Nitrogen, Oxygen, and Compressed Air
There is no universal solution for every application. The optimal choice depends on material type, plate thickness, quality standards, production volume, and budget. When sourcing equipment, discussing these variables with your cutting assist supplier ensures the system is configured correctly from day one.
Nitrogen: Achieving Oxidation-Free Premium Edges
Nitrogen is the standard for applications demanding pristine, oxide-free edges. As an inert gas, it does not react chemically with the melt pool but instead relies purely on kinetic energy to eject molten metal.
Benefits of Nitrogen Processing
The primary advantage is the prevention of oxidation. Nitrogen cutting delivers bright, smooth surfaces with excellent visual appeal, superior weldability, and ideal paint adhesion. This makes it indispensable for stainless steel fabrication, aluminum components, precision sheet metal parts, food-grade equipment, and decorative architectural metalwork.
Operational Considerations
Despite its quality benefits, nitrogen carries higher operational costs due to continuous consumption. Manufacturers must carefully evaluate local gas pricing, delivery logistics, and storage infrastructure. For facilities processing high volumes of non-ferrous metals, managing this expense is critical. Additionally, reliance on external deliveries introduces supply chain risks; any disruption can halt production. Many manufacturers now consult a specialized cutting assist manufacturer about on-site generation systems to mitigate these vulnerabilities and stabilize long-term expenses.
Oxygen: Maximizing Speed on Thick Carbon Steel
Unlike nitrogen, oxygen actively participates in an exothermic chemical reaction. When contacting heated carbon steel, it generates additional thermal energy that supplements the laser beam.
Benefits of Oxygen Processing
This extra heat significantly enhances penetration capability, making oxygen the preferred choice for thick carbon steel plates, structural beams, and heavy fabrication. For shops prioritizing throughput over cosmetic edge quality on mild steel, oxygen dramatically improves productivity.
Limitations to Consider
The trade-off is an oxidized edge. The resulting oxide layer can compromise weld integrity, reduce paint adhesion, and necessitate additional grinding or blasting. Oxygen cuts also tend to produce more slag and rougher surfaces compared to inert gas cutting. Therefore, oxygen is typically reserved for scenarios where cutting speed and thickness capacity outweigh the need for a finished edge.
Compressed Air: Balancing Cost and Performance
Compressed air has evolved into a viable industrial option thanks to advances in high-power fiber laser technology, improved nozzle aerodynamics, and better filtration systems. Historically dismissed for poor edge quality, it now offers stable performance for many general fabrication tasks.
Economic and Operational Advantages
The driving factor is cost efficiency. Unlike purchased gases, compressed air requires only electricity and compressor maintenance. For suitable applications, this drastically reduces the cutting assist price per hour. It also provides supply independence; with proper receiver sizing, factories eliminate cylinder changes and delivery scheduling, enabling uninterrupted multi-shift operation.
Application Scope
Compressed air excels in processing carbon steel sheets, medium-gauge metals, and general fabrication parts where extreme edge purity is not mandatory. While it may not replace nitrogen for aerospace-grade stainless or oxygen for 25mm structural steel, it fills a valuable niche for cost-sensitive, high-volume manufacturing.
| Parameter | Nitrogen (N₂) | Oxygen (O₂) | Compressed Air |
|---|---|---|---|
| Primary Mechanism | Kinetic ejection (inert) | Exothermic reaction | Kinetic ejection + mild oxidation |
| Edge Quality | Bright, oxide-free | Dark, oxidized layer | Slight oxidation, acceptable for many uses |
| Best Material Fit | Stainless, Aluminum, Copper | Thick Carbon Steel | Mild Steel, General Fabrication |
| Operating Cost | High (gas purchase/generation) | Moderate (lower pressure/volume) | Low (electricity + maintenance) |
| Secondary Processing | Minimal | Often required (grinding/blasting) | Variable depending on tolerance |
| Supply Dependency | External delivery or on-site generator | External delivery or on-site generator | Self-generated via compressor |
Making the Right Choice for Your Production Environment
Selecting between nitrogen, oxygen, and compressed air is ultimately a business decision as much as a technical one. Manufacturers must weigh edge quality requirements against total cost of ownership, including gas consumption, equipment maintenance, and secondary processing labor.
At Intouch, we understand that assist gas optimization is integral to system performance. With over 20 years of experience manufacturing fiber laser cutting machines, our engineering team helps customers configure gas delivery systems matched to their specific production mix. Whether you require the pristine edges of nitrogen for precision components or the cost efficiency of compressed air for structural parts, our TY-series sheet and tube platforms are designed to accommodate diverse gas strategies effectively.
Understanding the nuances of fiber cutting assist gas nitrogen oxygen compressed air selection empowers manufacturers to reduce waste, improve throughput, and protect margins. For personalized guidance on configuring your laser cutting system, reach out to our team at info@intouchray.com or visit www.intouchray.com.
