As discussed in Article #05, expanding the robotic work envelope is crucial for large-scale operations. While robotic arms on ground rails provide great flexibility, certain industries—specifically automotive and aerospace—demand a different combination of extreme scale and high volumetric accuracy. For these massive, complex components, the answer is often a Gantry-Style Fiber Laser System.

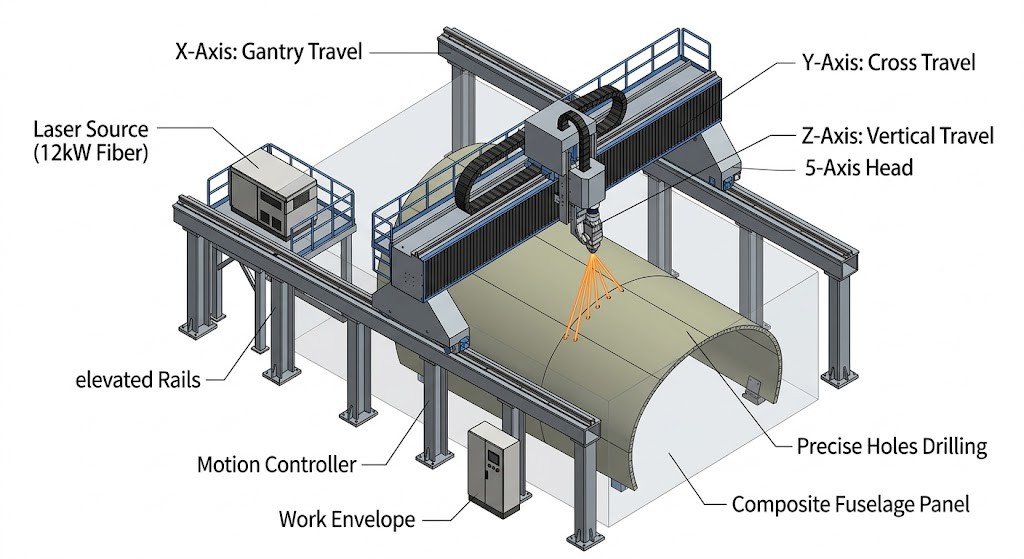

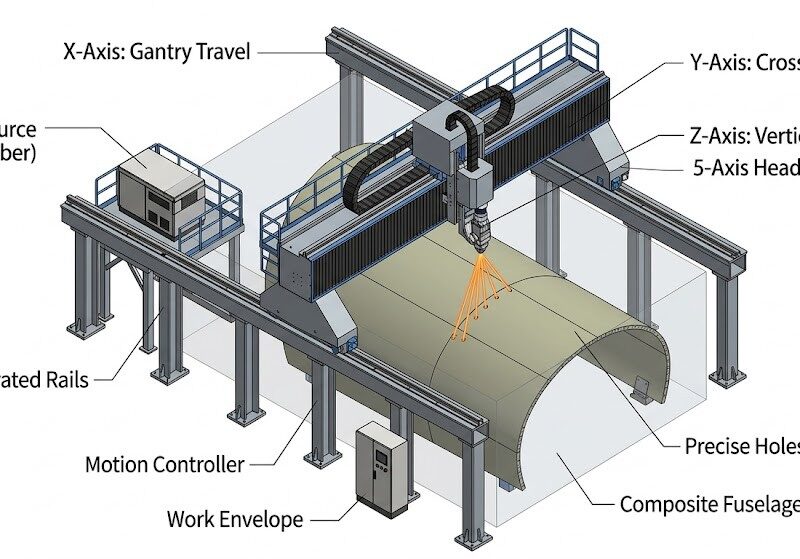

A gantry system is essentially a cartesian coordinate system scaled up to industrial proportions. It features a rigid overhead bridge (the gantry) that moves along elevated rails (the X-axis). A carriage moves across the bridge (the Y-axis), and the laser head moves up and down (the Z-axis). Often, these systems incorporate a 5-axis cutting or cladding head to handle complex 3D contours. For manufacturers using Intouchray’s high-power lasers, gantry systems offer the ultimate platform for scaling up precision.
1. The Gantry Advantage: Unmatched Volumetric Accuracy
Why choose a gantry over a long-travel robot (Article #05)? The primary driver is volumetric accuracy over an immense working space.
Because a gantry system operates on linear axes supported by massive, rigid structures, it minimizes the compound errors inherent in articulated robotic joints. A gantry can maintain sub-millimeter precision over a work envelope of 30 meters by 6 meters by 3 meters—critical for drilling thousands of precise cooling holes in an aerospace turbine component or trimming a composite aircraft fuselage section.
2. Dynamics and Speed for High-Volume Automotive
In the automotive sector, speed is paramount. High-power fiber lasers are used for ‘on-the-fly’ welding of tailored blanks or cutting complex high-strength steel (HSS) ‘B-pillars’.
A modern fiber laser gantry system can achieve astonishing acceleration (often >2G) and vector speeds (>100 m/min). This high dynamic performance, combined with precise synchronization of the laser power and motion, allows manufacturers to meet the cycle-time demands of mass production while achieving cleaner cuts than traditional stamping (complementing the nozzle centering discussion in Article #06).
3. Comparison: Robotic Arm vs. Gantry System
| Feature | Robotic Arm on Rail (7th Axis) | Gantry-Style System (X-Y-Z) |
| Volumetric Accuracy | Moderate over long distances | Very High (Sub-mm over large envelopes) |
| Dexterity/Flexibility | Very High (Complex orientations) | Moderate (Limited angular reach) |
| Acceleration/Dynamics | Moderate | High to Very High |
| Payload Capacity | Limited by arm capacity | High (Can support multiple heads) |
| Typical Working Envelope | Long cylindrical (up to ~30m) | Large rectangular (up to 40m+ length) |
| Cost | Moderate | Higher initial capital investment |
| Applications | Propellers, Shafts, Additive Mfg | Fuselages, Automotive stamping, Large Molds |
4. Application Focus: Large-Scale Aerospace Structures
Aerospace manufacturing pushes the scale boundary. Gantries are the only viable solution for certain tasks:
Fuselage Drilling & Trimming: Massive 5-axis gantries straddle an entire aircraft section to precisely drill holes for rivets or trim composite parts.
Aero-Engine Components: Precision drilling of effusion cooling holes in combustor liners or turbine blades requires dynamic gantries that maintain micron-level accuracy at high speeds.
Rocket Booster Processing: Large rocket motor cases require laser surface preparation or specialized cladding, necessitating extreme linear travel and stability.
For these critical aerospace applications, gantry systems are often paired with advanced sensors for seam tracking, adaptive control, and in-process quality monitoring—ensuring that every cut or weld meets stringent flight-safety standards.
