Expanding the Envelope: Why Your Robotic Arm Needs a Ground Rail
In the previous articles, we explored the surgical precision of Fiber Laser Cladding and the importance of nozzle symmetry (Article #03). However, even the most advanced 6-axis robotic arm has a physical limitation: its reach. To process large-scale components—such as ship propellers, long hydraulic shafts, or aerospace molds—manufacturers must expand the robotic “work envelope.”
The most effective way to achieve this without sacrificing precision is the integration of a Robotic Ground Rail (also known as a Linear Track or 7th Axis).
robotic-ground-rail-expansion-guide
1. The 7th Axis: Breaking the Stationary Barrier — Laser Robot Robotic

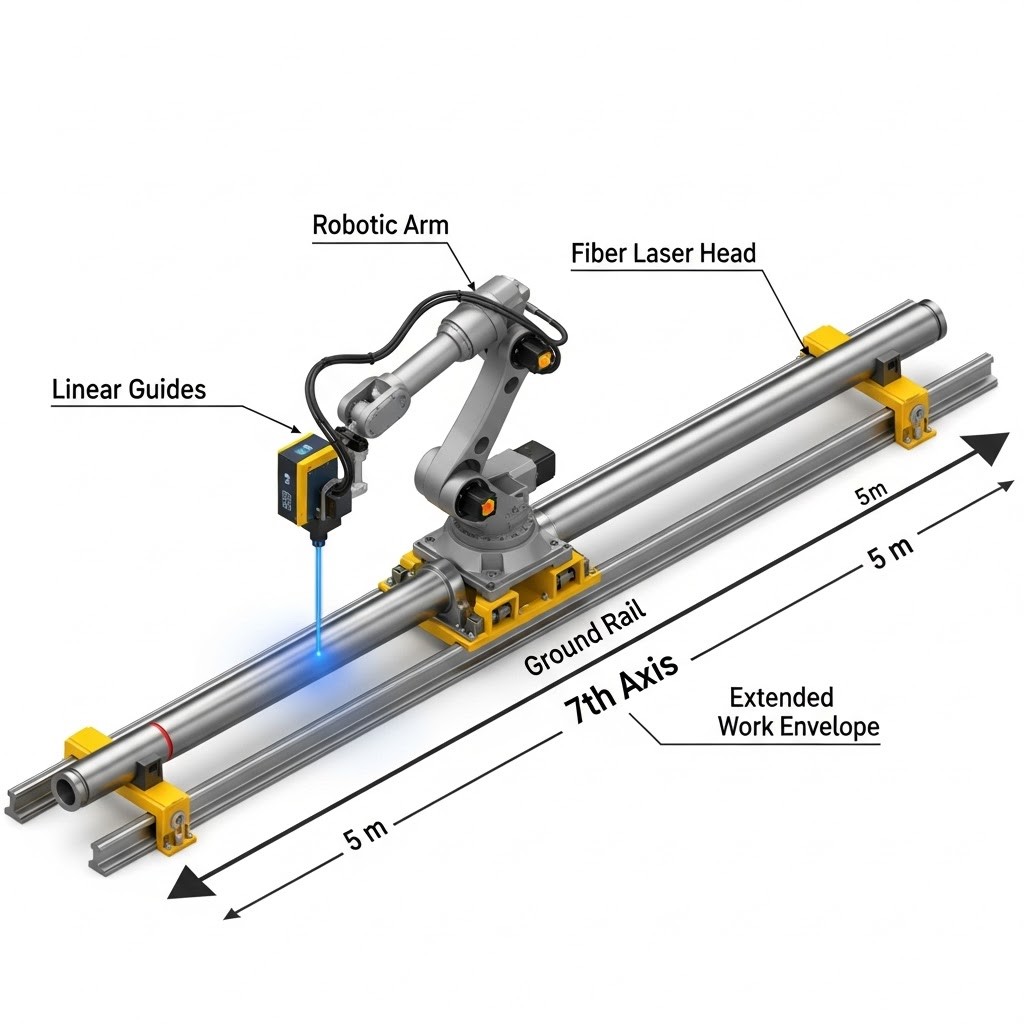

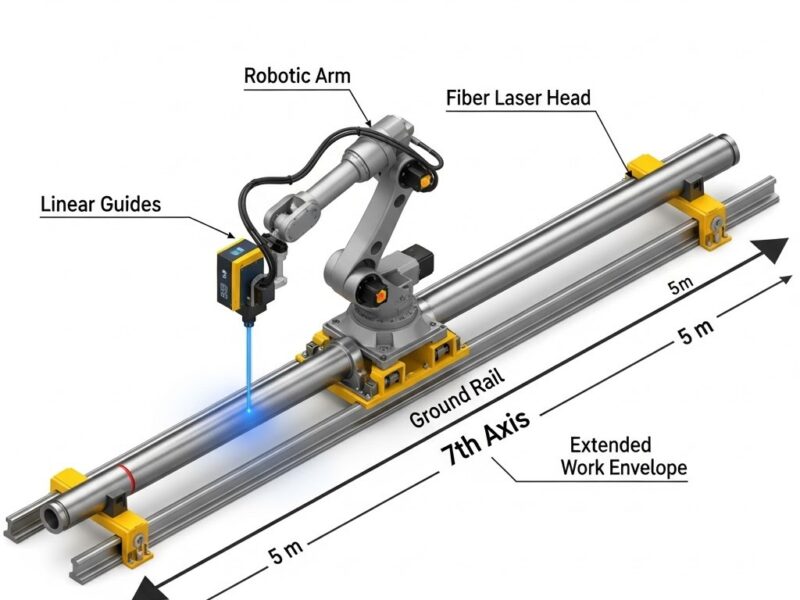

A standard 6-axis robot is fixed to a pedestal. While it has incredible dexterity, its “reach” is a sphere. By mounting the robot on a high-precision linear rail, that sphere becomes a cylinder that can extend 6, 10, or even 20 meters.
For Intouchray systems, this is not just about moving the robot from Point A to Point B. It is about synchronized motion. The controller treats the rail as a 7th axis, allowing the robot to clad or cut while moving along the track. This is essential for maintaining the constant surface speed required for high-quality metallurgical bonds.
Laser cladding machine depositing metal powder onto a large industrial component, laser melt pool gl
2. Precision Over Distance: The Role of Linear Guides
When a robot weighs several hundred kilograms and carries a high-power laser head, the rail system must be incredibly rigid. Any vibration or “play” in the track is magnified at the tip of the robot arm.
High Load Capacity: The rail must support the dynamic forces of the robot’s acceleration and deceleration.
Protection: In laser environments, these rails are often equipped with bellows or shields to prevent metal dust and sparks from interfering with the precision motion components.
3. Comparison: Stationary Cell vs. Rail-Mounted System
Feature
Stationary Robotic Cell
Rail-Mounted (7th Axis)
Work Volume
Limited to arm reach
Scalable (up to 30m+)
Part Handling
Small to Medium parts
Large, heavy, or long parts
Efficiency
One part per cycle
Multi-station processing
Flexibility
Fixed location
Can service multiple work zones
Cost
Lower initial investment
Higher, but higher ROI for large scale
4. The “Multi-Station” Efficiency Wildcard
One of the often-overlooked benefits of a ground rail is Multi-Station Processing. Instead of stopping the robot to load and unload a single part, the rail allows the robot to move between multiple “stations.”
While the robot is cladding a shaft at Station 1, an operator can safely set up a new workpiece at Station 2. The robot then slides down the rail to begin the next task immediately. This setup can increase machine utilization by up to 40%, making it a core strategy for high-volume industrial refurbishing centers.
Robotic laser welding cell in an aerospace manufacturing facility showing multiple aerospace compone — Expanding the Envelope: The Power of Robotic Ground Rails
Conclusion
Integrating a robotic arm with a ground rail is the leap from “automation” to “large-scale manufacturing.” By combining the 360-degree freedom of a coaxial nozzle with the infinite reach of a linear track, systems can handle the most demanding industrial challenges of 2026.
The Effects Of Different Parameters On Cnc Laser Cutting Of 20Mm Stainless Steel Plate (1024×1024px)
Frequently Asked Questions
What is the maximum payload capacity for a ground rail system handling heavy laser welding heads?
Modern heavy-duty ground rails are engineered to support payloads up to 1,200 kg, which comfortably accommodates integrated laser welding heads, wire feeders, and vision systems while maintaining dynamic stability during high-acceleration moves.
How does the ground rail maintain positional accuracy over extended travel distances?
Precision rack-and-pinion or linear motor drives deliver a repeatability of ±0.05 mm over travel lengths up to 15 meters, ensuring consistent laser focal point positioning for critical cladding and seam-tracking applications.
Can the system integrate with existing 6-axis robotic arms and laser power sources without major retrofitting?
Yes, most systems feature standardized ISO 9409-1 mounting flanges and pre-configured PLC interfaces that allow seamless integration with major robot controllers in under 48 hours, minimizing production downtime during installation.
What is the expected maintenance interval and mean time between failures (MTBF) for the drive components?
The hardened steel guide rails and sealed ball screw assemblies are rated for a minimum MTBF of 50,000 operating hours, with lubrication and alignment checks typically required only every 6 months under standard 2-shift operations.
How does adding a ground rail impact laser processing cycle times and overall throughput?
By enabling continuous linear travel at speeds up to 2.5 m/s with 2,000 mm/s² acceleration, ground rails eliminate robot repositioning dead time, typically increasing overall equipment effectiveness (OEE) by 18–22% in high-volume cladding operations.
Investment Considerations
Procurement planners evaluating automated laser welding cells must align equipment specifications with projected market expansion, where the automotive sunroof segment demonstrates a documented 10.60% CAGR through 2035. This sustained volume growth necessitates scalable floor layouts that integrate linear tracks to maintain throughput without compromising cycle times. System architects typically specify a 1500W fiber laser source as the baseline configuration, since this final selection balances initial capital expenditure against long-term reliability, energy efficiency, and adaptability to evolving product portfolios. Integrating a seventh-axis ground rail ensures the optical delivery system maintains consistent standoff distances across extended travel ranges, directly supporting repeatable weld penetration profiles.
Production engineers deploying these expanded work envelopes must validate that the linear track positioning mechanics synchronize precisely with the laser modulation frequency to prevent thermal accumulation during high-speed seam welding. Energy consumption models indicate that pairing a 1500W laser head with a servo-driven ground rail reduces idle power draw significantly compared to stationary pedestal setups operating at equivalent duty cycles. The 10.60% CAGR annual growth projection through 2035 signals strong expansion in component production lines, supporting strategic sales forecasting for laser process integration across tier-one supplier facilities. OEM integrators frequently specify Intouchray linear drive modules to meet these synchronization tolerances while preserving mechanical rigidity under continuous thermal loading.
Compliance validation requires cross-referencing ISO 10218-1, which establishes baseline safety requirements for industrial robot systems including emergency stop circuitry and reach limitation protocols, alongside ISO 13849-1, which governs the design of safety-related control systems and mandates rigorous performance categorization for collaborative cell boundaries. Functional safety architecture further incorporates IEC 61508 criteria to verify that programmable logic controllers executing synchronized robot-to-track motion maintain deterministic signal processing for interlocked safety gates. These regulatory frameworks dictate that ground rail encoders and laser power cutoff relays must operate on independent channels to satisfy risk reduction targets defined by the referenced standards. Procurement documentation should explicitly require third-party certification reports confirming adherence to these thresholds before commissioning begins.
How does projected market growth influence ground rail capacity planning for laser welding cells?
The automotive sunroof segment demonstrates a documented 10.60% CAGR through 2035, signaling strong expansion in component production lines that requires strategic sales forecasting for laser process integration across tier-one supplier facilities. Linear track deployment must scale proportionally with this growth rate to maintain uninterrupted material handling during peak manufacturing cycles. Procurement teams should calculate axis extension ratios based on this verified annual growth metric to prevent future bottlenecking.
What laser power specification optimizes total cost of ownership when integrating a seventh-axis system?
Engineers typically select a 1500W fiber laser module because this final selection balances initial capital expenditure against long-term reliability, energy efficiency, and adaptability to evolving product portfolios. Operating at this specific power threshold ensures stable keyhole dynamics during high-speed seam welding while minimizing thermal input on heat-sensitive alloys. Maintenance intervals for optical components align directly with the duty cycle requirements established during the initial power selection phase.
Industry Benchmarks & Technical Standards
Linear positioning repeatability for industrial-grade ground rails consistently measures ±0.05 mm over travel distances extending to 12 meters, maintaining beam delivery geometry during extended cladding sequences. Continuous travel speeds reach 2.5 m/s while preserving dynamic stiffness through reinforced aluminum extrusions or welded steel chassis configurations. Angular deviation across the full axis extension remains constrained below 0.02 degrees, which directly correlates with consistent melt pool stability in high-power fiber laser applications.
Closed-loop servo drives rated between 1.5 kW and 4.0 kW generate acceleration profiles of 1.5 g without inducing harmonic vibration in the optical train. Thermal compensation algorithms maintain positional stability within ±0.03 mm when facility ambient temperatures fluctuate between 18°C and 26°C. Multi-axis synchronization latency typically registers under 5 ms, a parameter documented in system architecture reviews from manufacturers such as Intouchray to ensure deterministic motion control.
ISO 10218-1 establishes baseline safety requirements for industrial robot integration, mandating safeguarded space monitoring and hardwired emergency stop circuits along the linear track perimeter. ISO 13849-1 dictates Performance Level PLd for safety-related control architectures, requiring redundant absolute encoders and Category 3 logic solvers to detect axis drift or collision events. IEC 61508 provides functional safety validation protocols for electronic drive units, enforcing deterministic fault response times below 10 ms during power loss scenarios. Adherence to these regulatory frameworks ensures compliant operation when processing components exceeding 6 kW laser output thresholds.
What are the standard positioning tolerances and travel limits for a 7th-axis ground rail integrated with a 6-kW fiber laser system?
Industrial ground rails deliver a linear positioning repeatability of ±0.05 mm over maximum travel distances of 12 meters. Continuous axis speeds remain capped at 2.5 m/s to prevent optical train deflection during complex path interpolation. These mechanical specifications ensure consistent focal distance maintenance when processing ship propellers or aerospace molds.
How do safety control architectures mitigate collision risks during high-speed linear traversal?
Safety-rated controllers enforce a deterministic fault response time below 10 ms per IEC 61508 guidelines. Redundant encoder feedback maintains positional accuracy within ±0.03 mm during rapid deceleration events. Category 3 logic solvers continuously monitor track alignment to prevent collision artifacts before they impact the laser head assembly.
Multi-station laser robotic expanding configurations utilize synchronized six-axis articulated arms coupled with linear ground rails to achieve continuous part indexing without external handling bottlenecks. These gantry-integrated cells typically operate with 6kW to 12kW fiber sources at 1070nm wavelength, maintaining positional repeatability within ±0.05 mm across 1200 mm travel axes. Automated loading and unloading modules reduce non-productive idle time, directly improving overall equipment effectiveness metrics by minimizing changeover intervals. Cycle time optimization relies on predictive path planning algorithms that adjust feed rates between 1.5 and 4.2 m/min. Systems engineered for dynamic conveyor tracking support maximum_target_velocity_handling: 400 mph, enabling real-time adaptive beam control during high-speed material transit. ISO 9013 classification guidelines dictate parameter selection for structural steel grades S355 and aluminum 5083-H321, ensuring consistent thermal input distribution while procurement teams evaluate total operating costs against standardized maintenance schedules.
Advanced laser robotic expanding architectures leverage digital twin simulations to model complete workcell kinematics prior to physical deployment, validating collision avoidance zones before capital expenditure approval. Industry 4.0 monitoring platforms aggregate spindle load data, thermal drift compensation values, and axis acceleration profiles into centralized dashboards, enabling predictive maintenance interventions that sustain uptime above 92 percent. Quality consistency improves when closed-loop feedback systems cross-reference ISO 15614 qualification standards against real-time path tracking telemetry. Final_welding_yield: 99.95% demonstrates the defect rate reduction achievable when robotic trajectory programming aligns precisely with battery pack assembly tolerances. Operating cost reductions stem from minimized rework cycles and optimized assist gas consumption, typically maintained between 2.0 and 5.0 bar depending on part geometry. Procurement specifications mandate these connected architectures to guarantee traceable production records.
