Intelligent Laser Cladding: The Role of Adaptive Control and In-Process Monitoring
The push for larger-scale robotic cladding (Article #05) and high-power gantry systems (Article #08) brings a critical challenge: ensuring consistent metallurgical quality over massive, complex surface areas. When cladding a 5-meter hydraulic shaft or a 3D aerospace mold, a single defect can compromise the entire component.
To achieve ‘zero-defect’ manufacturing, industrial laser systems are transitioning from passive execution to active, intelligent operation. This is made possible by combining in-process monitoring with adaptive control, ensuring that the process parameters (Article #04) are dynamically optimized in real-time.
- The Challenge of Process Instability
In laser cladding, the interaction between the high-power laser beam, the metal powder, and the substrate is dynamic and highly sensitive. Even with optimal initial parameters (Article #04), small variations can introduce instability:
Substrate Homogeneity: Minor differences in the material composition or hardness of the base metal can affect laser absorption.
Thermal Accumulation: As cladding progresses, the workpiece absorbs heat. If not managed, this “thermal buildup” changes the melt pool dynamics, leading to inconsistent layer height or dilution.
Powder Flow Variations: Subtle changes in powder feed rate or distribution (Article #03) can alter the cladding bead geometry.
Passive systems cannot react to these events. Adaptive control, however, transforms the laser from a tool into an intelligent system that senses and responds.
- In-Process Monitoring: Sensing the Melt Pool
In-process monitoring provides the “eyes and ears” of the adaptive system. Specialized sensors, integrated directly into the laser cladding head (Article #06), collect real-time data from the interaction zone.
Melt Pool Pyrometry: High-speed infrared sensors or two-color pyrometers measure the exact temperature of the molten pool.
Vision Systems (CMOS/CCD Cameras): Specialized cameras, often with coaxial illumination, capture high-resolution images of the melt pool geometry (width, length, area).
Powder Flow Monitoring: Optical sensors can verify that the powder jet (Article #03) is consistent and properly aligned with the laser focus.

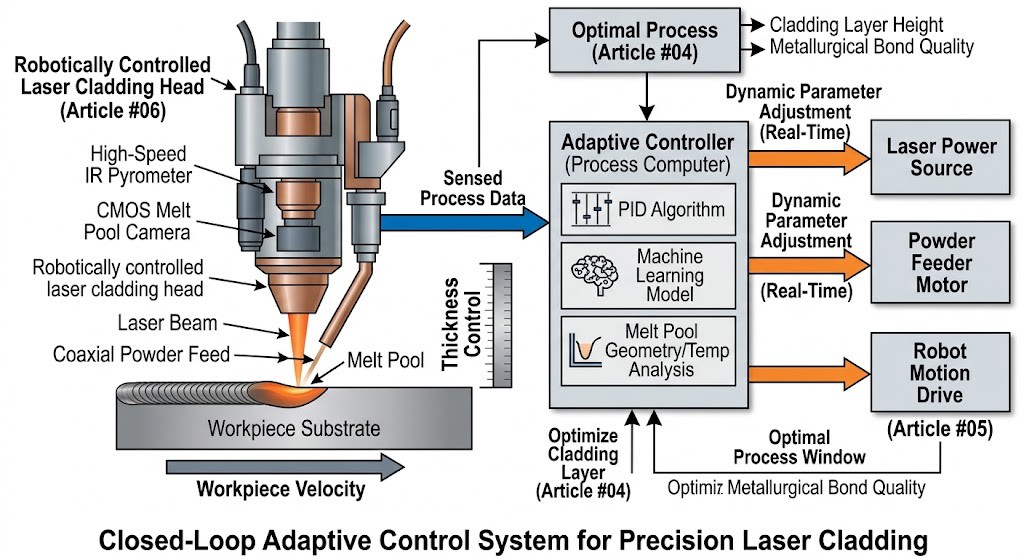

- Adaptive Control: The Intelligence to Respond
The sensor data is fed into a high-speed motion controller or a dedicated process computer (Article #08). Advanced algorithms—often using PID (Proportional-Integral-Derivative) logic or even machine learning models—compare the sensor readings against the optimal process window (Article #04).
If the system detects that the melt pool temperature is rising too high (due to thermal accumulation), it instantly executes adaptive control actions:
Dynamic Laser Power Adjustment: The controller can modulate the laser power in milliseconds (e.g., reducing 4kW to 3.8kW) to maintain the target temperature.
Traverse Speed Modulation: The system can increase the travel speed of the robot (Article #05) or gantry (Article #08) to reduce the heat input per unit length.
Powder Feed Rate Correction: The controller can adjust the powder feeder to maintain consistent layer thickness.
Conclusion: Achieving Zero-Defect Cladding
Integrating in-process monitoring with adaptive control is the defining step for industrializing large-scale laser cladding. By dynamically managing thermal buildup and compensating for process variations, manufacturers can achieve consistent metallurgical bonds, uniform geometry, and, most importantly, eliminate the costly defects that threaten high-value components. This intelligent optimization is what ensures the precision and ROI demanded by critical automotive and aerospace sectors (Article #08).
