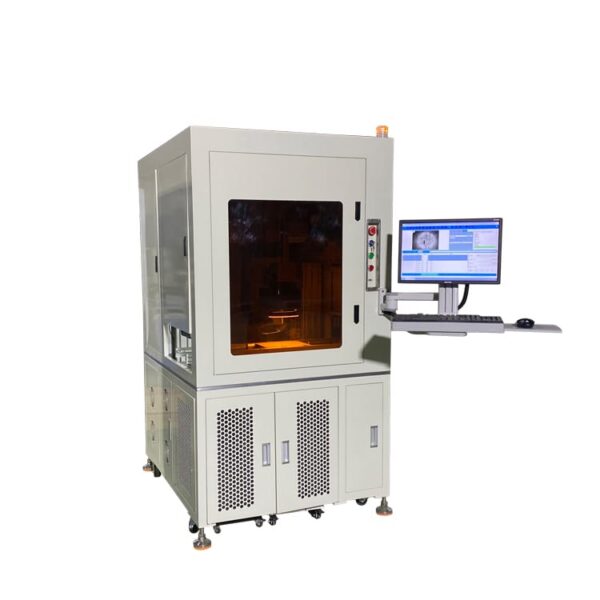

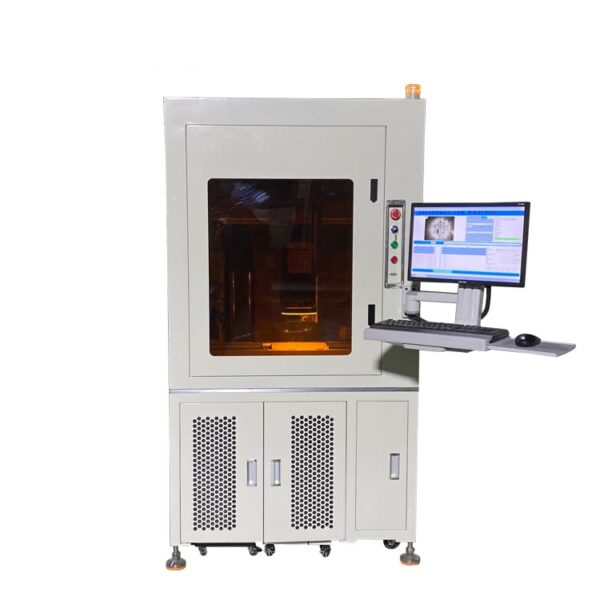

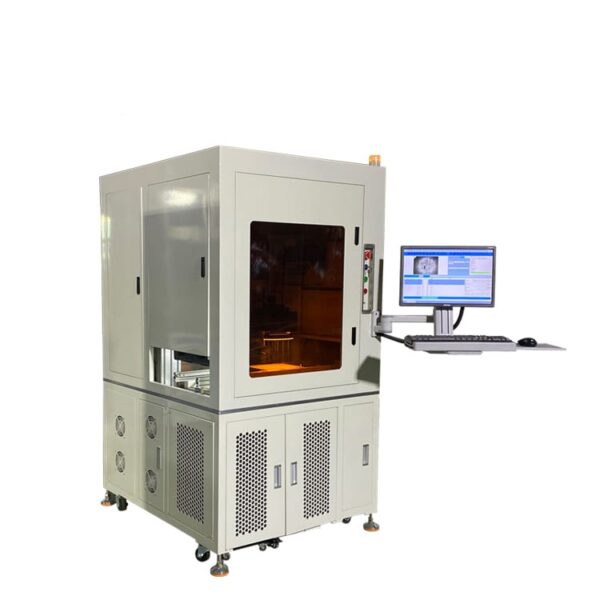

PCB Laser Marking Machine

Key Features of PCB Laser Marking Machines

1. Ultra-High Precision & Miniaturization

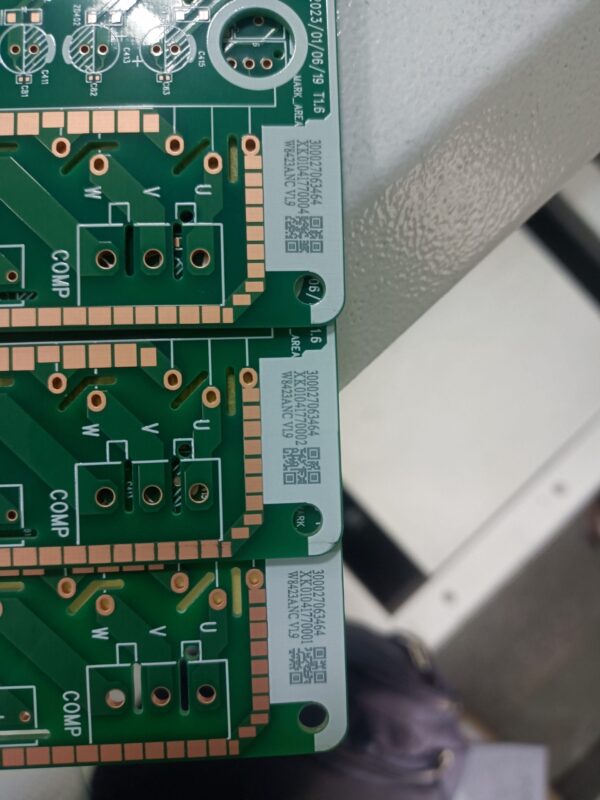

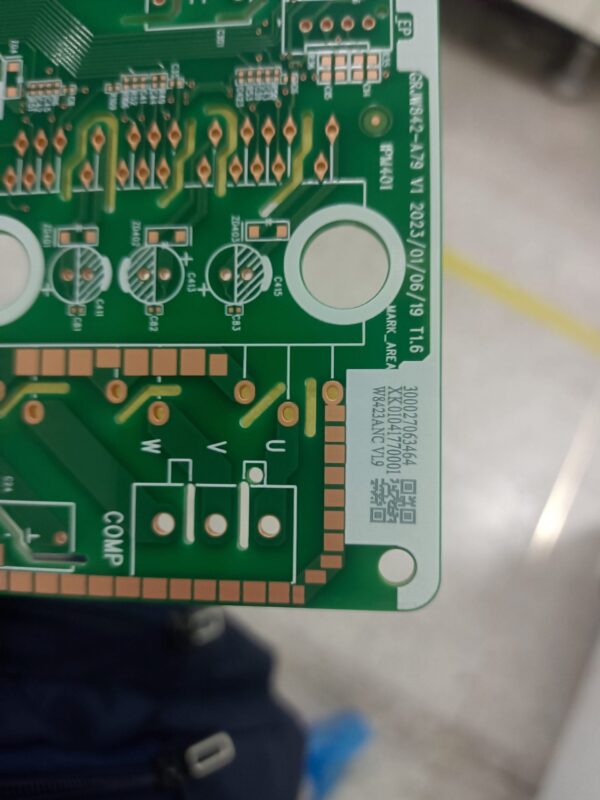

   • Achieves micron-level accuracy (as fine as 0.05 mm) for marking tiny QR codes, serial numbers, or logos on small PCB surfaces (down to 3×3 mm), ideal for modern compact electronics.
   • Advanced UV or fiber lasers ensure crisp, permanent marks without damaging delicate substrates like flexible circuits or thin copper layers.
2. Non-Contact, Zero Mechanical Stress
   • Laser marking eliminates physical contact, preventing scratches, deformation, or contamination of sensitive PCB components.
   • Suitable for fragile materials (e.g., FPC flexible boards) and pre-coated surfaces.
3. Broad Material Compatibility
   • Effective on metals (copper, aluminum), FR-4 substrates, ceramics, and composite materials used in PCB manufacturing.
   • Adapts to textured or uneven surfaces, ensuring consistent mark quality across diverse PCB types.
4. Automation & Smart Integration
   • Seamless integration with SMT production lines, robotic arms, and IoT-enabled systems for 24/7 unmanned operation.
   • High-precision CCD cameras enable automatic positioning, real-time quality inspection, and MES system data synchronization for traceability.
5. Eco-Friendly & Safe Operation
   • No consumables (inks, solvents) or hazardous waste, aligning with global environmental regulations (e.g., RoHS, REACH).
   • Eliminates toxic fumes and chemical exposure, ensuring operator safety.

Core Advantages of PCB Laser Marking Technology

1. Permanent, Tamper-Proof Markings
   • Laser-etched codes resist abrasion, chemicals (e.g., cleaning agents, acids), and environmental factors (UV, humidity), ensuring lifelong traceability.
   • Critical for anti-counterfeiting and compliance with FDA, EU, or automotive industry standards.
2. High-Speed Production & Cost Efficiency
   • Marks PCBs in 0.5–2 seconds per unit, boosting throughput by 5–10x compared to traditional silk screening.
   • Low operating costs: No consumables, minimal energy consumption, and reduced scrap rates via AI nesting software.
3. Superior Flexibility & Customization
   • Instantly switch between designs (text, barcodes, 2D codes) via CAD/CAM software, enabling rapid prototyping and mass production.
   • Supports 360° marking on cylindrical components and complex geometries with rotary axis attachments.
4. Enhanced Product Quality Control
   • Automated defect detection and real-time data logging ensure 100% traceability from raw materials to finished products.
   • Reduces human error and improves yield rates in high-volume manufacturing.
5. Future-Ready Industry 4.0 Compatibility
   • Cloud-based analytics enable predictive maintenance, remote diagnostics, and digital twin simulations for optimized workflows.
   • Integrates with MES/ERP systems for end-to-end production monitoring and smart factory automation.

Primary Industrial Applications

1. Consumer Electronics
   • Traceability marking on smartphone PCBs, wearables, and IoT devices.
2. Automotive & Aerospace
   • Durable coding on engine control units (ECUs), sensors, and avionics PCBs.
3. Medical Devices
   • Biocompatible markings on implantable device circuits and diagnostic equipment.
4. Industrial IoT & Energy
   • Serialization of power supply boards, solar inverters, and industrial controllers.

Why Choose Our PCB Laser Marking Solutions?

• Tailored Configurations: Systems from 3W UV lasers (for fine-pitch FPCs) to 300W fiber lasers (for high-speed metal PCBs).
• Smart Software Suite: Pre-loaded industry templates, AI-driven parameter optimization, and MES/ERP connectivity.
• Global Compliance: CE, ISO 13485 (medical), and IATF 16949 (automotive) certifications.
• Lifetime Support: 24/7 technical assistance, on-site training, and global spare parts logistics.
