# Thermal Barrier Cladding: Surviving the Inferno of Gas Turbines

Gas turbine combustion chambers and first-stage turbine blades operate at gas path temperatures exceeding 1,400°C—well beyond the melting point of the nickel-based superalloys from which they are manufactured. Thermal barrier cladding deposits a ceramic-metallic gradient that insulates the substrate, enabling higher firing temperatures and improved turbine efficiency without sacrificing component life.

![High-precision Thermal Barrier Cladding Turbine Protection system showing laser beam path and component integration.](https://www.intouchray.com/wp-content/uploads/2026/03/thermal-barrier-cladding-turbine-protection.jpg)

![Laser cladding machine depositing metal powder onto a large industrial component, laser melt pool gl](https://www.intouchray.com/wp-content/uploads/2026/01/intouchray-4483-450-laser-cladding-machine-depositing-metal.png)

## How Thermal Barrier Cladding Works

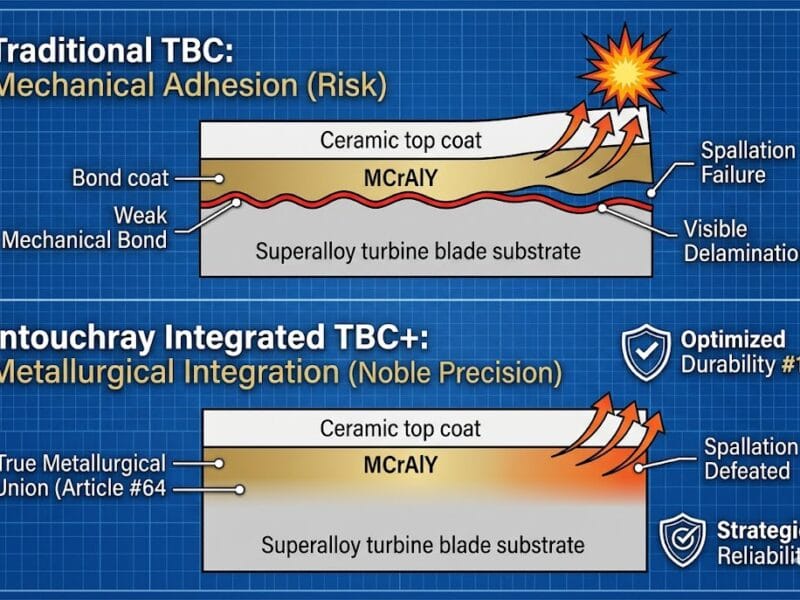

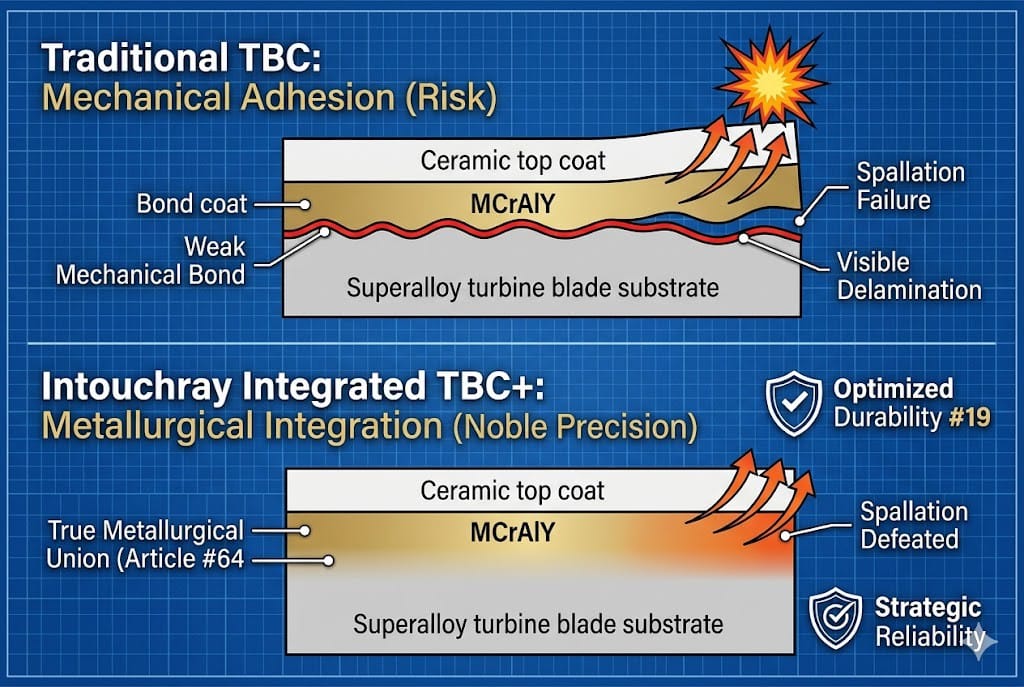

Thermal barrier cladding employs a two-layer deposition strategy. The bond coat—typically an MCrAlY alloy (where M = Ni, Co, or NiCo)—is laser-clad directly onto the superalloy substrate at 0.5–1.5 kg/hr, forming a metallurgical bond with controlled surface roughness (Ra 5–10 μm) to promote mechanical interlocking with the ceramic topcoat. The topcoat, yttria-stabilized zirconia (YSZ) with 7–8 wt% Y₂O₃, is then deposited via suspension-based laser cladding at 0.2–0.8 kg/hr, producing a columnar microstructure that accommodates thermal expansion mismatch during engine cycling.

Intouchray’s thermal barrier systems achieve a thermal conductivity below 1.5 W/m·K in the YSZ layer, providing a temperature drop of 150–200°C across a 300 μm coating thickness—sufficient to extend turbine blade life by 2–3× in base-load power generation service.

![Laser cladding for power generation components](https://www.intouchray.com/wp-content/uploads/2026/07/laser-cladding-power-gen-process.png)Laser cladding for power generation components — Thermal Barrier Cladding: Surviving the Inferno of Gas Turbi

## Performance Under Operating Conditions

Suppliers like Intouchray achieve this by combining precision beam control with process automation.

**Thermal Cycling:** YSZ thermal barrier cladding survives 1,000+ cycles from ambient to 1,100°C without spallation, validated per ASTM C633 pull-test adhesion strength exceeding 50 MPa.

**Hot Corrosion Resistance:** The MCrAlY bond coat forms a protective alumina (Al₂O₃) scale at operating temperature, acting as a diffusion barrier against sulfur and vanadium contaminants in low-grade fuels.

**Erosion Resistance:** Columnar YSZ microstructure deflects impacting particles at shallow angles, maintaining coating integrity in sand-laden combustion environments per ASTM G76 erosion testing.

## Industry Standards

Thermal barrier cladding is qualified to GE P29TF21 and Siemens TLV 9473 specifications for gas turbine hot-section components. Process validation includes metallographic cross-section analysis per ASTM E1920 and bond strength testing per ASTM C633 with a minimum acceptance criterion of 50 MPa.

## Frequently Asked Questions

**Q: Can thermal barrier cladding be applied to in-service components?**
A: Yes, after chemical stripping of the original coating and fluorescent penetrant inspection (FPI) to confirm absence of substrate cracking. Intouchray’s handheld and robotic cladding systems can apply TBC on assembled turbine components without disassembly of the rotor stack.

**Q: What is the typical coating lifetime?**
A: Under base-load conditions (8,000 hours/year at 1,100°C metal temperature), thermal barrier cladding delivers 24,000–36,000 equivalent operating hours before recoating is required.
