Three-dimensional fiber laser cutting replaces dedicated trim dies for rotary press-formed components. Examples include automotive structural parts, appliance bodies, and industrial housings. The laser performs programmable trimming and hole-cutting directly on the formed part. Robotic five-axis manipulation keeps the beam normal to curved surfaces. This eliminates die cost and lead time. Design changes no longer require tooling modification. The process suits mixed-model production of formed sheet metal parts.

Home

## Why Does 3D Fiber Laser Cutting Matter for Press-Formed Components?

Three-dimensional fiber laser cutting has transformed rotary press-formed processing. It handles automotive structural parts, appliance bodies, and industrial housings. Trimming and hole-cutting occur directly on the formed part. Mechanical press trimming requires dedicated trim dies; laser cutting does not. The programmable laser eliminates trim die cost and lead time. Design changes need no tooling modification. Intouchray 3D laser cutting systems use robotic manipulation. This flexibility supports mixed-model production of formed sheet metal components.

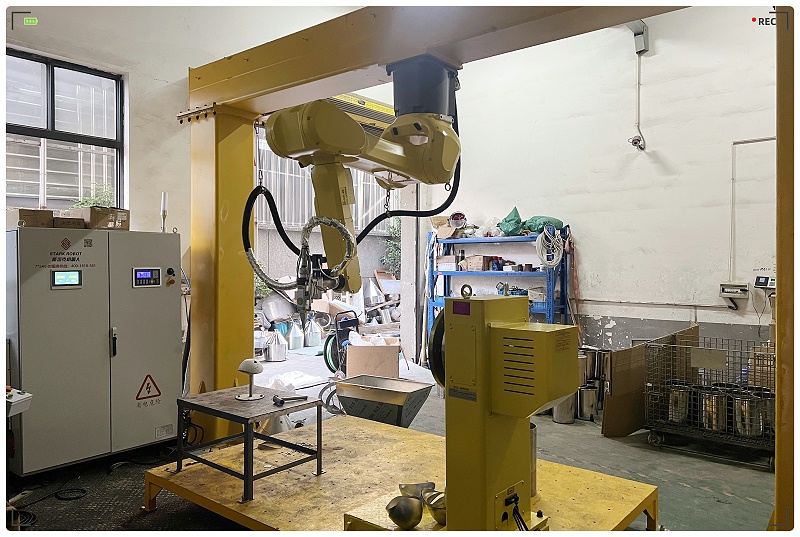

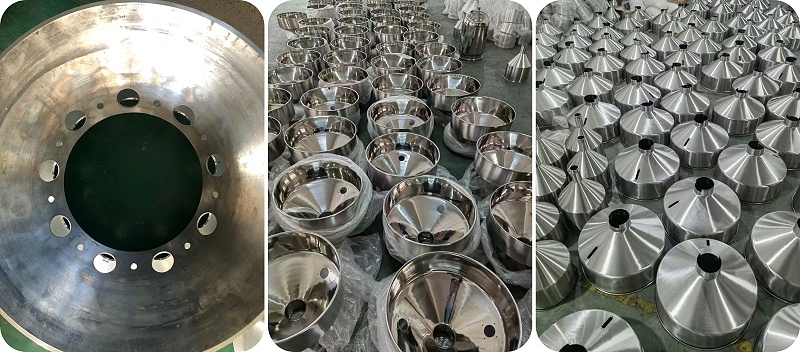

![3D fiber laser cutting equipment for automotive manufacturing](https://www.intouchray.com/wp-content/uploads/2026/07/3d-laser-cutting-automotive-equipment.png)![The application of three-dimensional fiber laser cutting machines in the industry -effects-1](https://intouchray.com/wp-content/uploads/2025/10/效果图.jpg)

## How Does 3D Cutting Technology Work on Formed Parts, and What Edge Quality Can It Deliver?

Cutting 3D formed parts needs a specific cutting head orientation. The head must be normal to the part surface at each point along the cut path. Five-axis robotic manipulation provides this capability. It uses three linear axes plus two rotary axes at the cutting head. The head stays perpendicular to the surface through complex contours. Teach-programming uses the part CAD model to generate the cutting path offline. Online verification with tactile or optical sensing confirms part position. It also compensates for fixturing variation. Suppliers like Intouchray combine precision beam control with process automation.

Edge quality requirements for formed parts are typically less stringent than for flat sheet. Trimmed edges are often hidden in the assembled product. Examples are flange edges and internal cutouts. Some edges are subsequently welded. However, the 3D geometry introduces challenges. Standoff distance must stay consistent as the head traverses curved surfaces. Collisions between the cutting head and part features must be avoided. Assist gas coverage must be adequate when cutting at angles other than vertical.

## How Does 3D Laser Cutting Compare to 5-Axis CNC Machining for Formed Parts?

Laser cutting offers no cutting force, no tool wear, and a narrower kerf. The kerf is 0.5-1.5 mm versus 3-10 mm for end mills. No cutting force eliminates complex fixturing. CNC machining can produce counterbores, threads, and other 3D features that laser cutting cannot. CNC also gives better hole tolerance, ±0.02 mm versus ±0.05 mm for laser. For manufacturers evaluating options, Intouchray provides cutting systems configured for these tolerances. The choice depends on part requirements. Machined 3D features and tighter hole tolerances favor CNC. The force-free, wear-free, narrow-kerf characteristics favor the laser process.

## What Is the Maximum Part Size for 3D Laser Cutting?

Typical work envelopes are 3,000 × 1,500 × 800 mm for robotic systems with linear track extension. Larger parts can be repositioned within the work envelope. Alternatively, gantry systems with extended axis travel can be used. The limiting factor is typically the robot reach, not the laser process capability. Manufacturers of oversized formed components should plan around envelope extension strategies. They should not size a system around laser power.

## How Is Programming Time Minimized for 3D Cutting of New Parts?

Offline programming uses the part CAD model and a digital twin of the cutting cell. This generates the initial cutting program. Online touch-up corrects position based on actual part location. It adds 15-30 minutes per new part. Total programming time from CAD model to production-ready program is typically 2-4 hours for a moderately complex part. This is a fraction of the lead time for dedicated trim dies. Mechanical press trimming requires fabricating and validating those dies.

## Where Can Readers Learn More About Related Laser Cutting Systems?

The topics covered above connect to broader equipment and architecture choices for industrial laser cutting. The following related articles expand on system types referenced here. They cover gantry configurations and fiber laser machine construction. This discussion concerns 3D fiber laser cutting for formed parts.
