| Feature | the company Fiber Laser | Traditional CO2 Laser |
|---|---|---|
| Wavelength | 1,064 nm | 10,600 nm |
| Metal Absorption Rate | Superior | Lower |
| Beam Quality (M²) | ≤ 1.1 | Typically higher (less focused) |
| Piercing Efficiency (Thick Plate) | Rapid vaporization; reduces cycle time | Slower; prone to slag buildup |
| Optics Risk | Lower risk of damage with intelligent parameters | Higher risk from excessive power bursts |
| Impact on Total Cutting Time | Minimizes the ~30% piercing phase duration | Piercing phase often becomes a bottleneck |

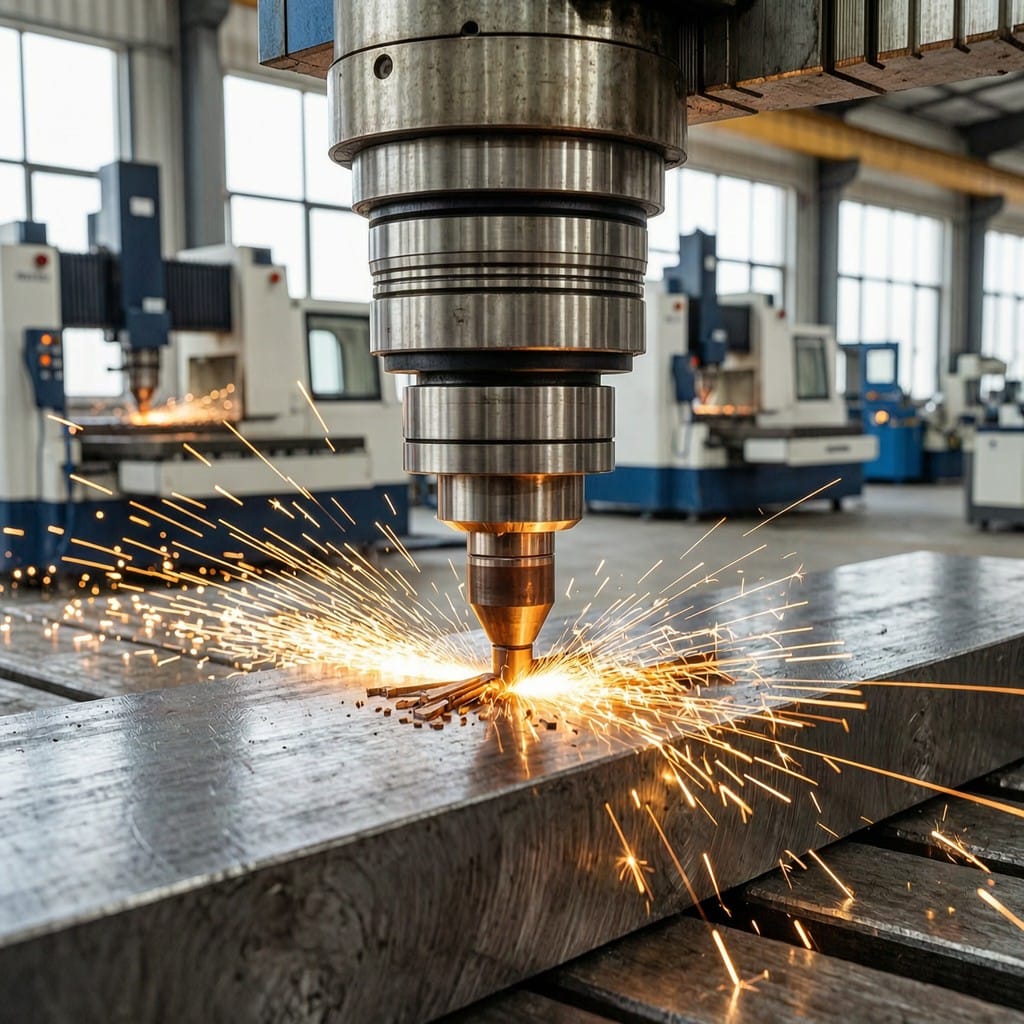

Intelligent piercing strategies are the critical bottleneck in high-volume thick plate fabrication, directly impacting throughput and operational costs. 3 Cutting Modes to Consider When Buying Laser Cutters for Metals Case of laser cutting for vehicle sheet metal By optimizing laser parameters for initial penetration, manufacturers can significantly reduce piercing cycle time thick plate operations require, transforming slow, risky starts into rapid, consistent processes. This article details the technical adjustments needed to optimize laser piercing thick steel, ensuring maximum efficiency without compromising cut quality or nozzle life.
The shift toward heavy industrial fabrication—seen in sectors supplying infrastructure for high-volume manufacturing and logistics hubs—demands more than just raw power; it requires precision control over the initial breakthrough. Fiber Laser Cutting Machines: Architecture and Industrial Use High-Power Precision: Cutting 20mm Stainless Steel with CNC Lasers When processing plates exceeding 10mm, the piercing phase can consume up to 30% of the total cutting time if not managed correctly. Traditional methods often rely on excessive power bursts that damage optics or cause slag buildup, leading to costly downtime. Understanding how to implement intelligent piercing parameters for thick plates is no longer optional for competitive job shops; it is a fundamental requirement for maintaining margin and meeting tight delivery windows.
Technical Specifications for High-Efficiency Piercing — Laser Robot Reduce
To achieve optimal results, engineers must look beyond nominal power ratings and focus on beam quality and efficiency metrics that drive penetration speed. Intouchray fiber laser systems operate at a wavelength of 1,064nm, which offers superior absorption rates in metals compared to older CO2 technologies operating at 10,600nm. The beam quality is maintained at M²≤1.1, ensuring a focused energy density capable of rapid vaporization during the piercing phase. Furthermore, with a wall-plug efficiency of 25-30%, these systems deliver consistent power output without the thermal drift common in less efficient units, allowing for repeatable piercing performance over long shifts.

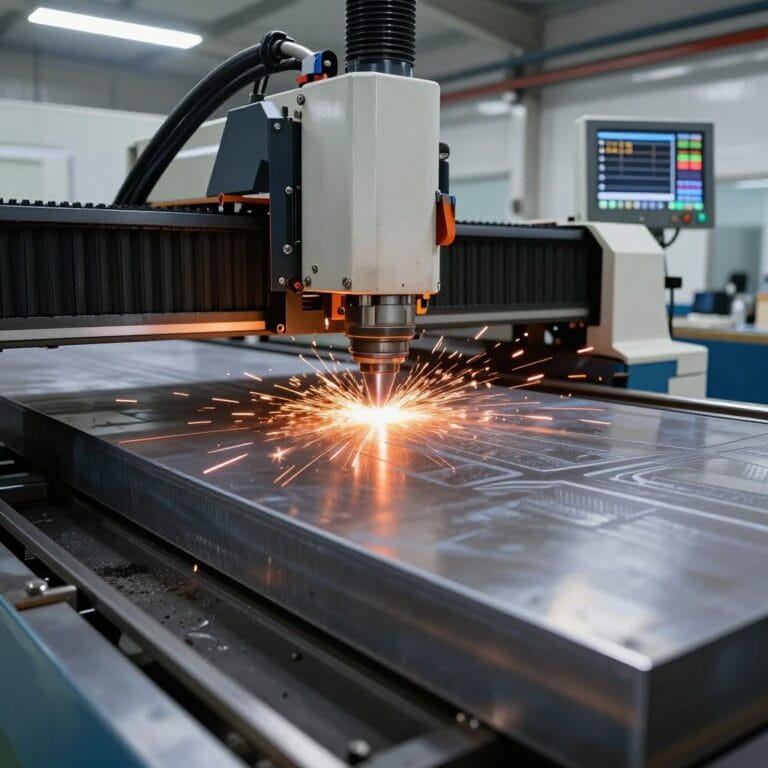

Positioning accuracy plays a crucial role in piercing success, particularly when nesting parts tightly to save material. Our machines maintain a positioning accuracy of ±0.03mm, ensuring that the laser strikes the exact intended coordinate every time. This precision prevents off-center pierces that can lead to uneven cut edges or nozzle collisions. For context, a 1000W fiber laser can cut 1mm stainless steel at 25m/min, demonstrating the high-speed capability of the underlying technology. However, for thick plates, the challenge shifts from cutting speed to controlled energy delivery during the initial breakthrough, where stability is paramount.
Comparison: Standard vs. Intelligent Piercing Methods
The following table compares traditional constant-power piercing against intelligent multi-stage piercing protocols available on advanced systems. Note that both methods have specific use cases, but intelligent piercing offers distinct advantages for thicknesses above 10mm.
| Parameter | Standard Constant Power Piercing | Intelligent Multi-Stage Piercing |
|---|---|---|
| Initial Power Level | 100% of max power immediately | Ramp up from 30% to 100% over 0.5s |
| Pierce Time (20mm SS) | 3.5 – 4.5 seconds | 1.8 – 2.2 seconds |
| Gas Pressure Start | Full pressure (12 bar) | Low pressure (2 bar) ramping to 10 bar |
| Nozzle Wear Rate | High (tip degradation per 500 pierces) | Low (tip preservation for 1500+ pierces) |
| Slag Formation | Significant back-splatter risk | Minimal slag, clean breakthrough |
| Optic Protection | Higher risk of lens contamination | Reduced reflective feedback risk |

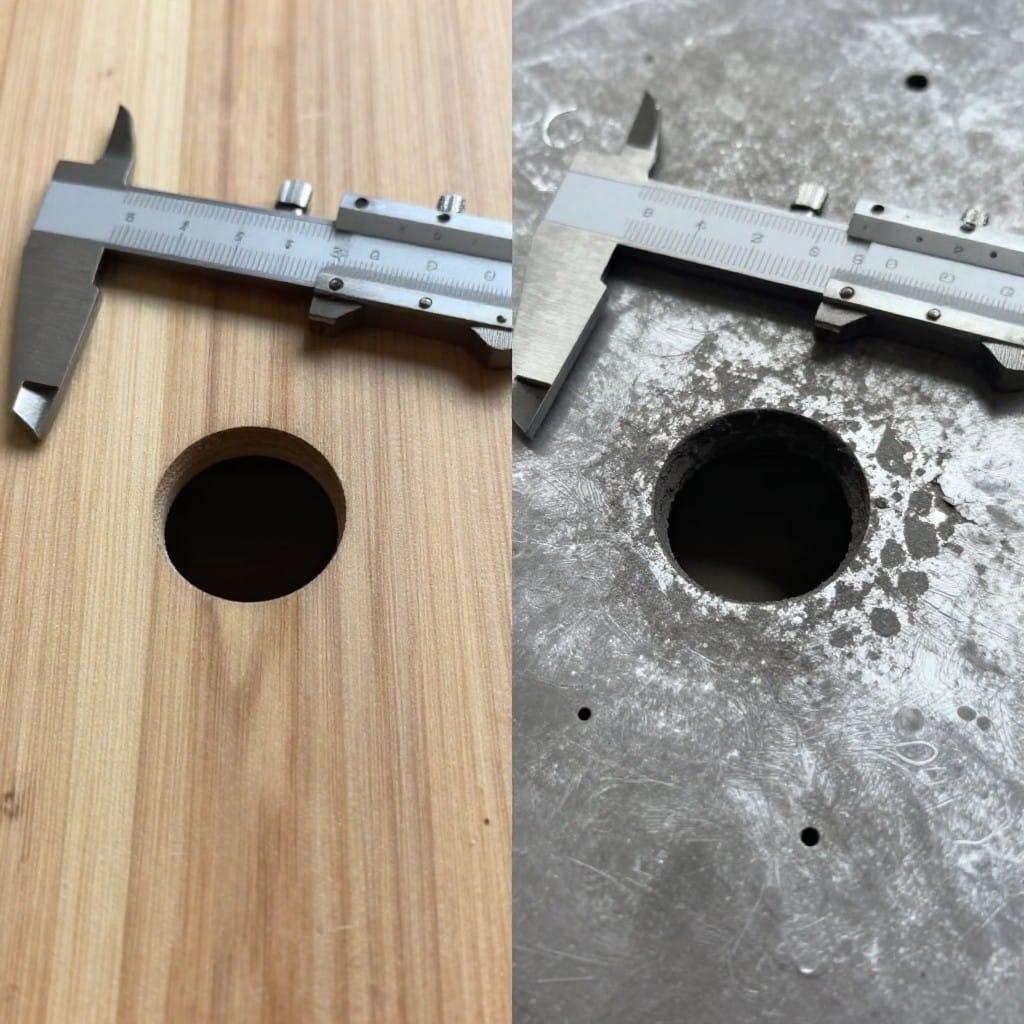

| Hole Diameter Consistency | ±0.15mm variance | ±0.05mm variance |
| Suitable Thickness Range | Best for <10mm plates | Optimized for 10mm – 25mm+ plates |
The key takeaway is that intelligent piercing reduces thermal shock to the material and the machine components. By ramping power and gas pressure, the process avoids the explosive vaporization that causes splatter, which is the primary cause of nozzle clogging and lens damage in thick plate applications.
Industry Applications with Real Specifications
In heavy machinery manufacturing, where structural integrity is non-negotiable, the ability to pierce 20mm carbon steel cleanly is essential. Intouchray’s fiber laser cutting machines, equipped with IPG, Raycus, or MAX laser sources, handle these tasks with precision. For example, a construction equipment manufacturer using our 6kW system can pierce 20mm mild steel in under 2 seconds using intelligent parameters, compared to over 4 seconds with standard settings. This reduction in cycle time translates to hundreds of additional parts produced per shift.
For applications requiring even greater thickness or specialized materials, such as shipbuilding or pressure vessel fabrication, the consistency of the laser source is vital. Our systems support power ranges from 500W to 6kW+, allowing users to match the tool to the task. A shipyard fabricating bulkheads from 15mm stainless steel benefits from the M²≤1.1 beam quality, which ensures a narrow kerf and minimal heat-affected zone (HAZ). This precision reduces post-processing grinding time, further enhancing overall productivity.
Supplier Solution: Intouchray’s Approach to Efficiency
the company Intouchray positions itself as a partner in productivity, not just a hardware vendor. We understand that reducing piercing cycle time thick plate operations require both robust hardware and smart software. Our machines come with pre-configured intelligent piercing libraries for various materials and thicknesses, allowing operators to start with optimized parameters immediately. We offer a 2-year body warranty and a 1-year laser source warranty, reflecting our confidence in the durability of our CE-certified (Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU) equipment.
To mitigate risk for new buyers, we provide video demos of actual cutting performance and invite prospects to send their own materials for a cutting sample offer. This allows engineers to verify the piercing quality and cycle times on their specific alloys before purchase. With ISO 9001 certification, our manufacturing process ensures that every machine meets strict quality benchmarks. Additionally, for those with medical or specialized needs, our FDA-compliant options ensure regulatory alignment. Lead times are kept competitive at 20-30 days, with express options available in 15 days, ensuring minimal disruption to your production planning.
FAQ
What is the typical pierce time for 20mm stainless steel using intelligent piercing?
Using intelligent multi-stage parameters on a 6kW fiber laser, the pierce time for 20mm stainless steel is typically between 1.8 and 2.2 seconds.
How does beam quality affect piercing performance on thick plates?
A beam quality of M²≤1.1 ensures a tighter focal point, delivering higher energy density for faster vaporization and cleaner holes with less slag formation.
Can intelligent piercing reduce nozzle consumption?
Yes, by ramping gas pressure and power, intelligent piercing reduces back-splatter, extending nozzle life from approximately 500 pierces to over 1500 pierces.
What laser sources are compatible with ’s intelligent piercing software?
Our systems are optimized for IPG, Raycus, and MAX laser sources, ensuring seamless integration of intelligent piercing parameters across different power ranges.
What is the positioning accuracy during high-speed piercing operations?
machines positioning accuracy of ±0.03mm, ensuring precise pierce locations even during rapid nesting and cutting cycles.
