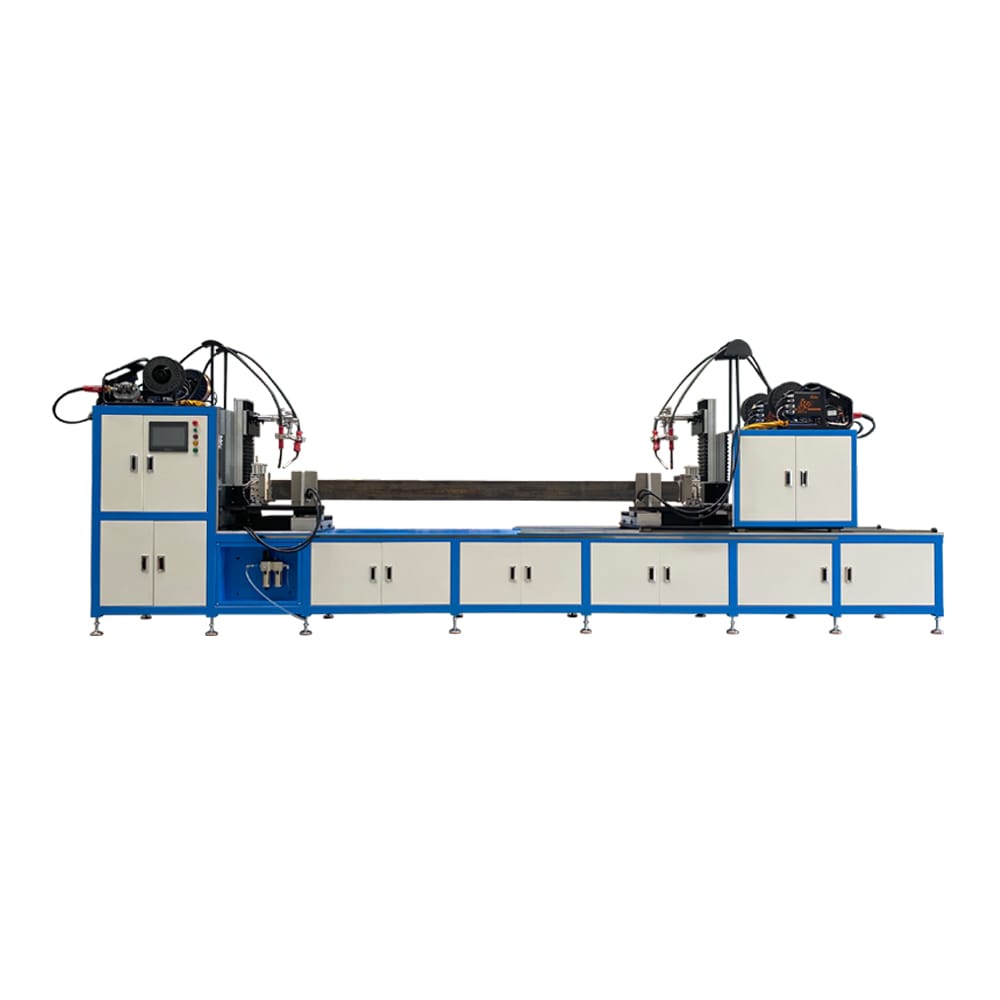

Storage rack MIG welding machine

Product Overview

This equipment is specially designed for mass production welding of metal furniture and storage equipment such as shelves, racks, and storage units. Utilizing advanced MIG (Metal Inert Gas) welding technology, it integrates a high-performance welding power source, precision wire feeder, and automated control system to achieve efficient, stable, and high-quality welding of shelves, uprights, beams, and connectors. Widely used in metal furniture manufacturing, warehousing logistics equipment, commercial display racks, and industrial shelving, it is an ideal choice for boosting productivity and welding consistency.

Features

– **Efficient MIG Welding Process**: Supports pulsed MIG/DC MIG modes, offering high deposition rates, minimal spatter, and beautiful weld seams for materials such as carbon steel, stainless steel, and aluminum profiles.

– **Automation Integration**: Can be equipped with single or multi-torch automatic welding systems, servo-driven travel mechanisms, or welding robots for automatic welding of linear seams, fillet welds, and complex paths.

– **Dedicated Tooling & Fixtures**: Equipped with quick-change tooling for precise positioning of uprights and shelves, ensuring dimensional accuracy and reducing manual handling time.

– **Intelligent Welding Power Source**: Digital welding power supply with multiple parameter storage, one-touch recall, adaptable to different material thicknesses and wire specifications.

– **Fume Extraction System**: Optional welding fume purifier improves working environment and meets environmental requirements.

Advantages

– **Dramatically Increased Productivity**: Multi-station simultaneous welding or continuous travel welding reduces cycle time by over 50%, meeting high-volume production demands.

– **Consistent Weld Quality**: Automation eliminates human variability, resulting in uniform, strong welds with enhanced load-bearing capacity and high product consistency.

– **Easy Operation**: Touchscreen HMI with intuitive parameter setting allows operators to work efficiently after minimal training.

– **Flexible Production**: Quick-change features support multiple product specifications on the same line, adapting to customized orders.

– **Energy and Material Savings**: Continuous wire feeding in MIG process maximizes wire utilization, lowering overall costs compared to manual arc welding.

– **High Safety**: Fully enclosed protective covers and light curtains ensure operator safety.

Applications

– **Metal Furniture Manufacturing**: Welding of bookshelves, wardrobes, shoe racks, display shelves, and other home storage products.

– **Warehousing & Logistics Equipment**: Heavy-duty racks, medium-duty racks, light-duty shelving, pallets, and returnable containers.

– **Commercial Display Fixtures**: Product display stands, promotion tables, hook racks, vegetable racks in supermarkets and stores.

– **Industrial Storage**: Tool cabinets, workbenches, material racks, tool carts.

– **Municipal Facilities**: Guardrails, flower stands, bulletin board frames, etc.

Technical Specifications

| Parameter | Value |

| Welding Power Source | 500A / 350A digital MIG welder |

| Applicable Wire | Solid/cored: φ0.8-1.6mm (carbon steel/stainless steel/aluminum) |

| Welding Speed | 0.5 – 2.0 m/min |

| Number of Stations | Single-station / Dual-station / Four-station (optional) |

| Control System | PLC + Touchscreen |

| Repeatability | ±0.2mm |
