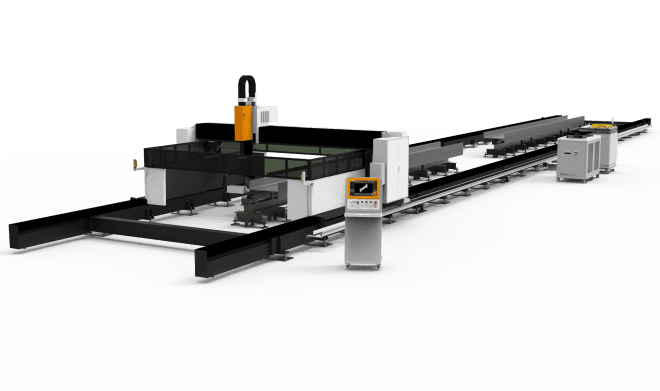

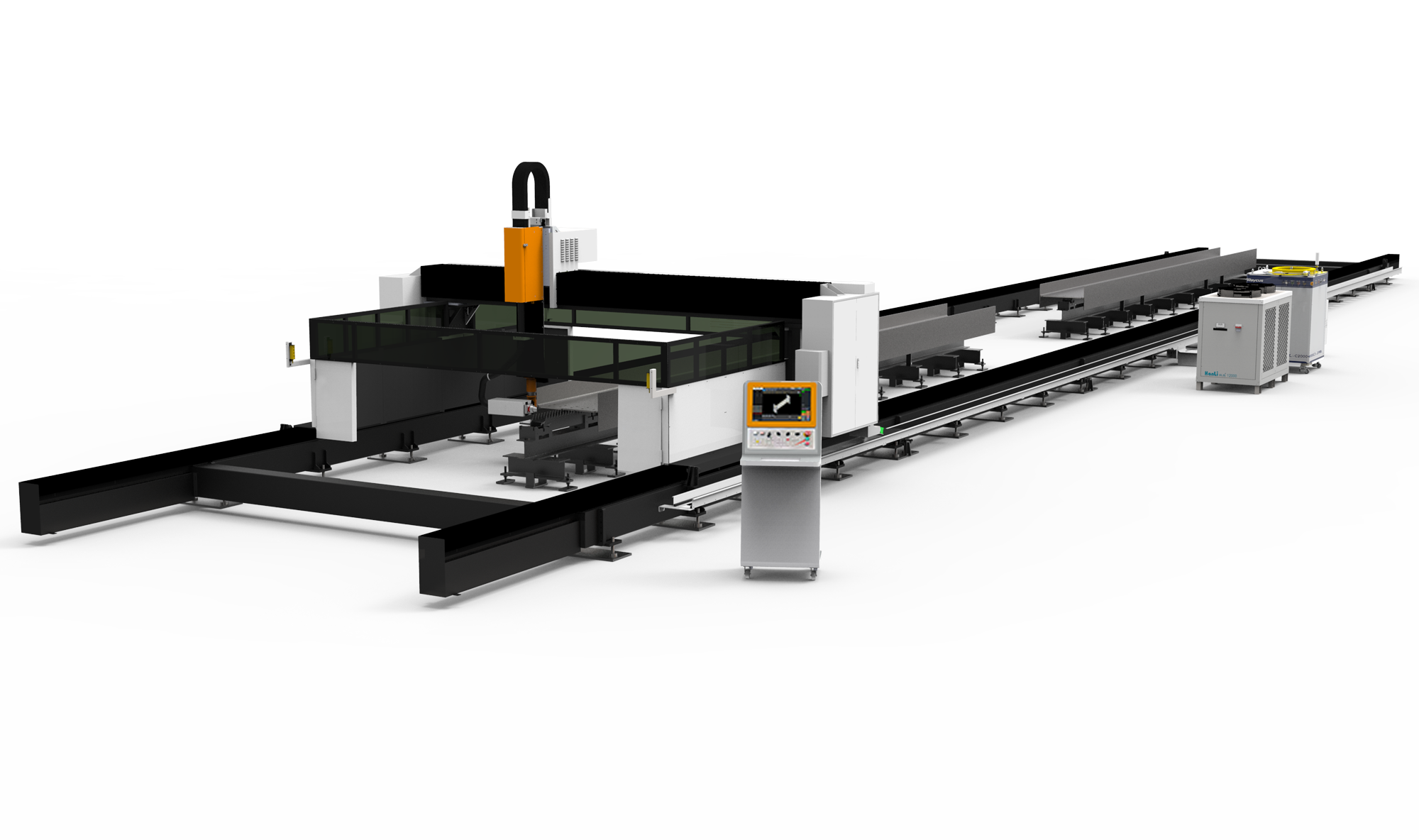

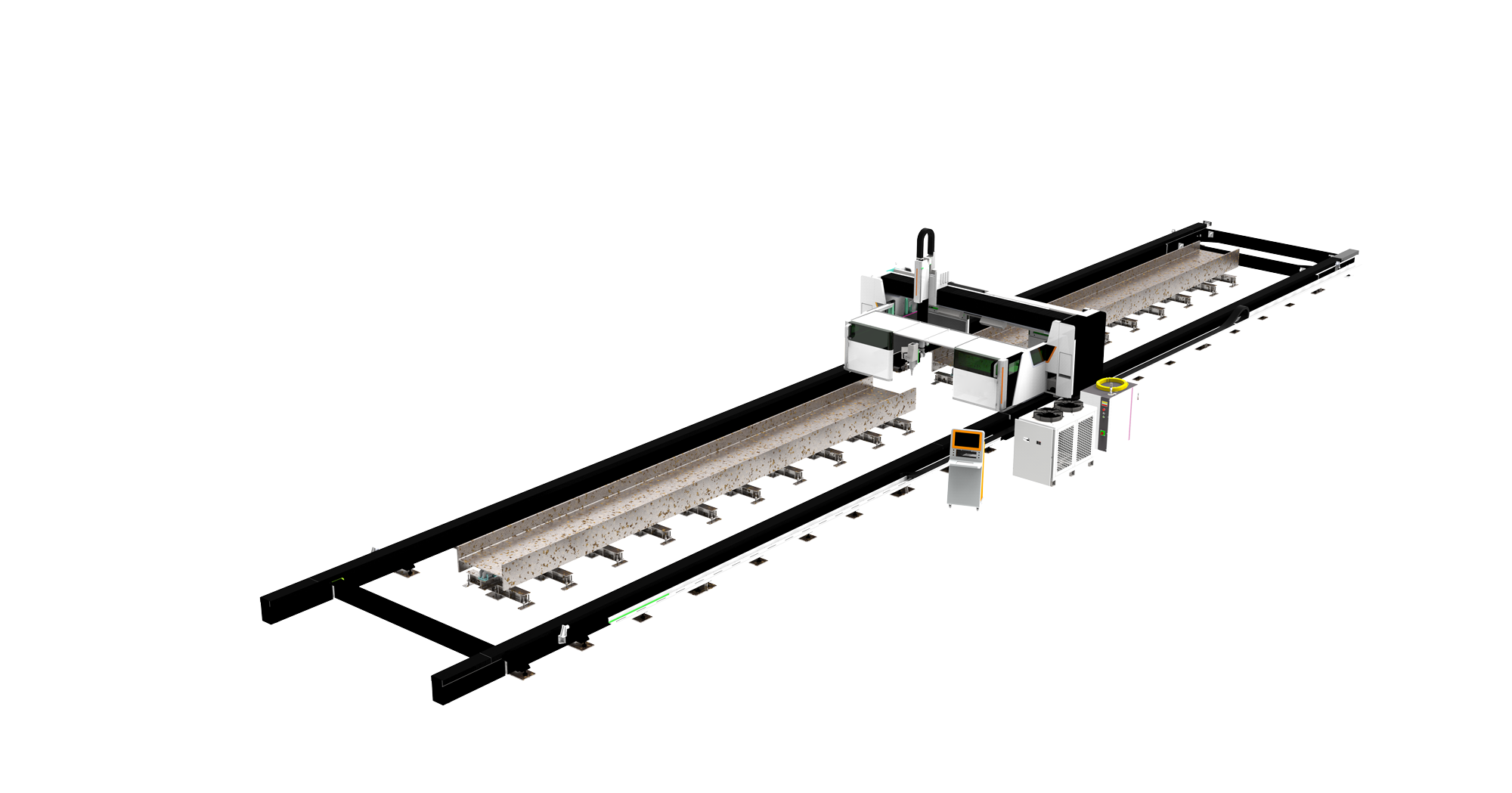

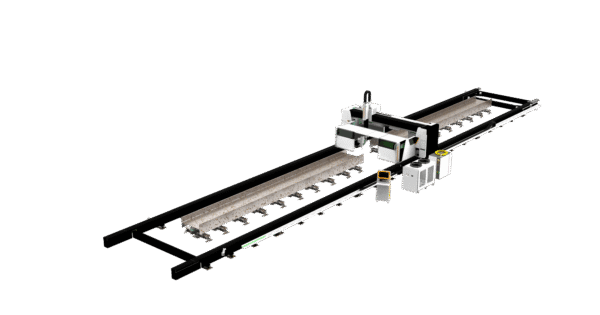

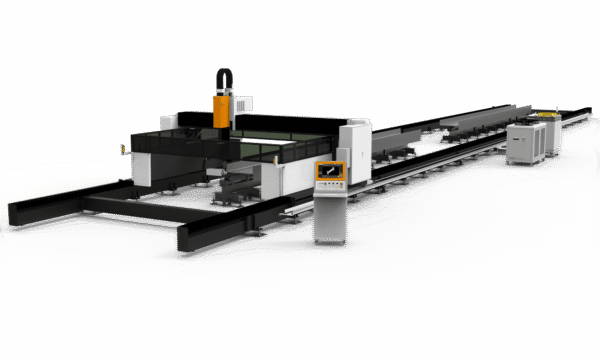

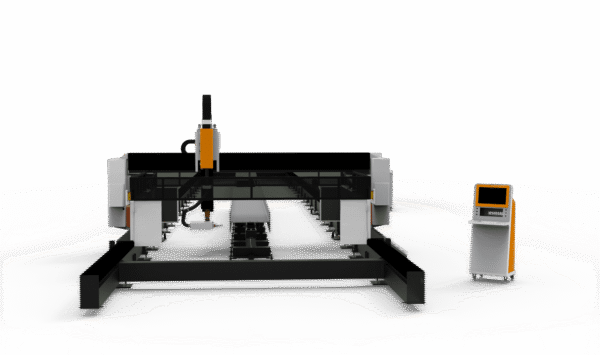

H-beam three-dimensional five-axis
laser production line
Product Parameters
| serial number | name | parameters |
| 1 | H-beam cutting range | Height B≤500mm |
| Width H≤1500mm | ||
| Length L≤12000mm*2 | ||
| 2 | Laser power | 12KW/20KW/30KW |
| 3 | X-axis travel | 28000mm |
| 4 | Y-axis travel | 3000mm |
| 5 | Z-axis travel | 1000mm |
| 6 | A/B axis travel (rotary axis) | ±90° |
| 7 | Bevel Cutting Angle | 45° |
| 8 | X/Y/Z maximum positioning speed | 60m/min |
| 9 | X/Y/Z positioning accuracy | ≤0.1mm |
| 10 | Cutting precision | ≤0. 5mm |
· Functionality Flexible Response

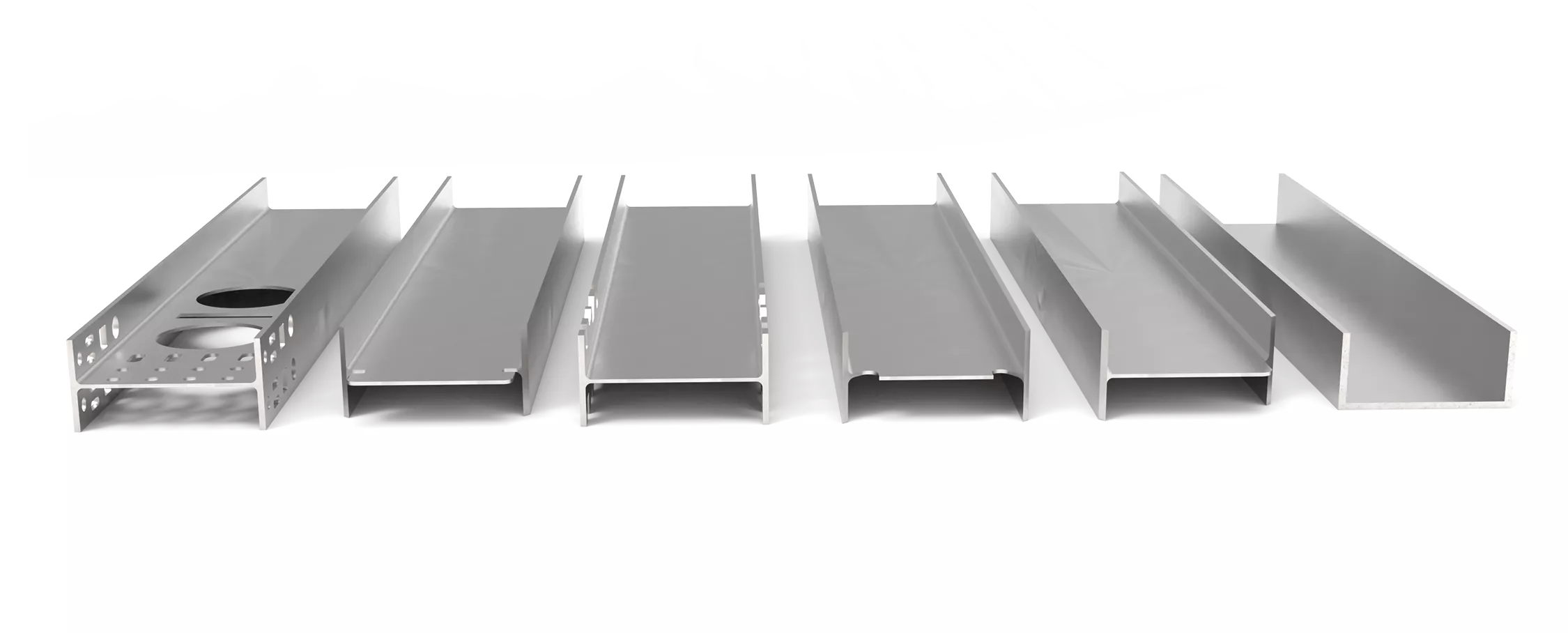

H-beams, channels, angles, unequal beams and flat plates are easy to deal with

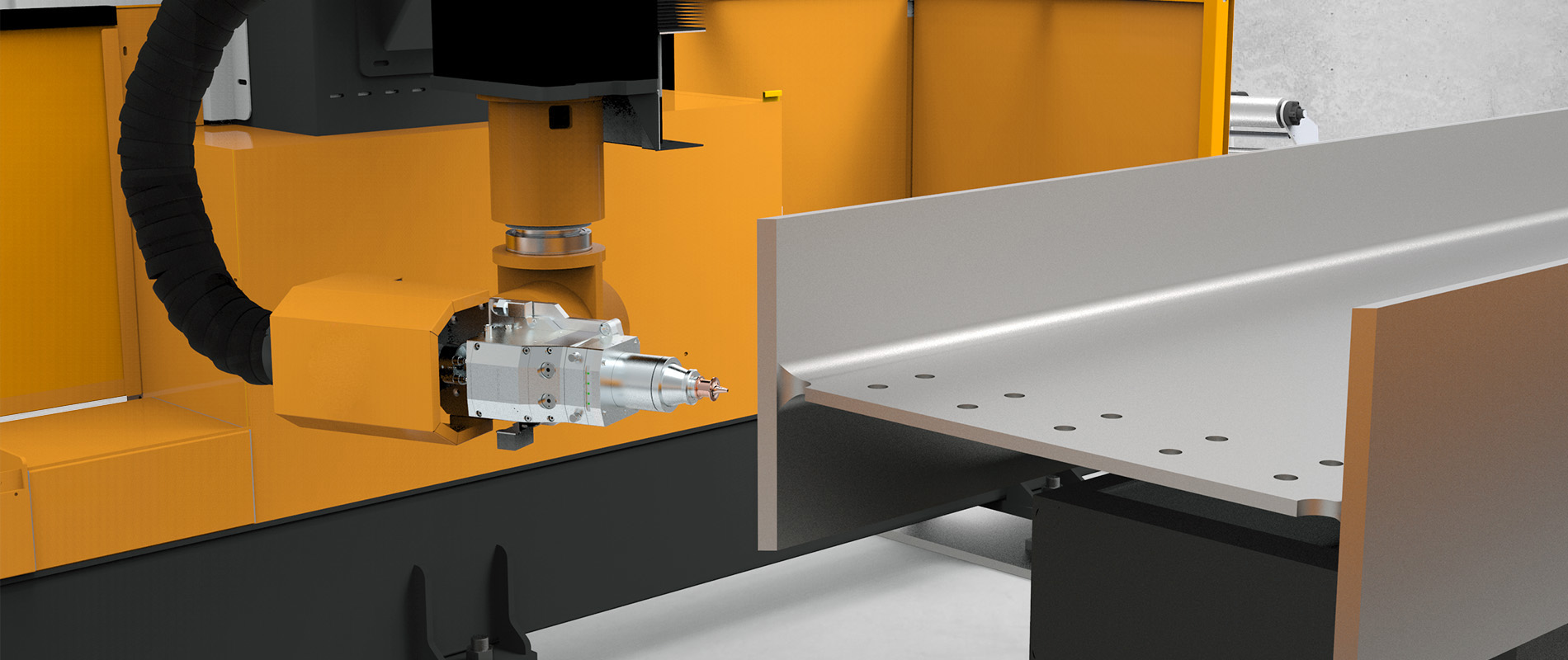

Five-axis design Flexible response
Multi-directional and flexible processing, just for your special needs
12 metre double station design
High efficiency and low cost 24H operation

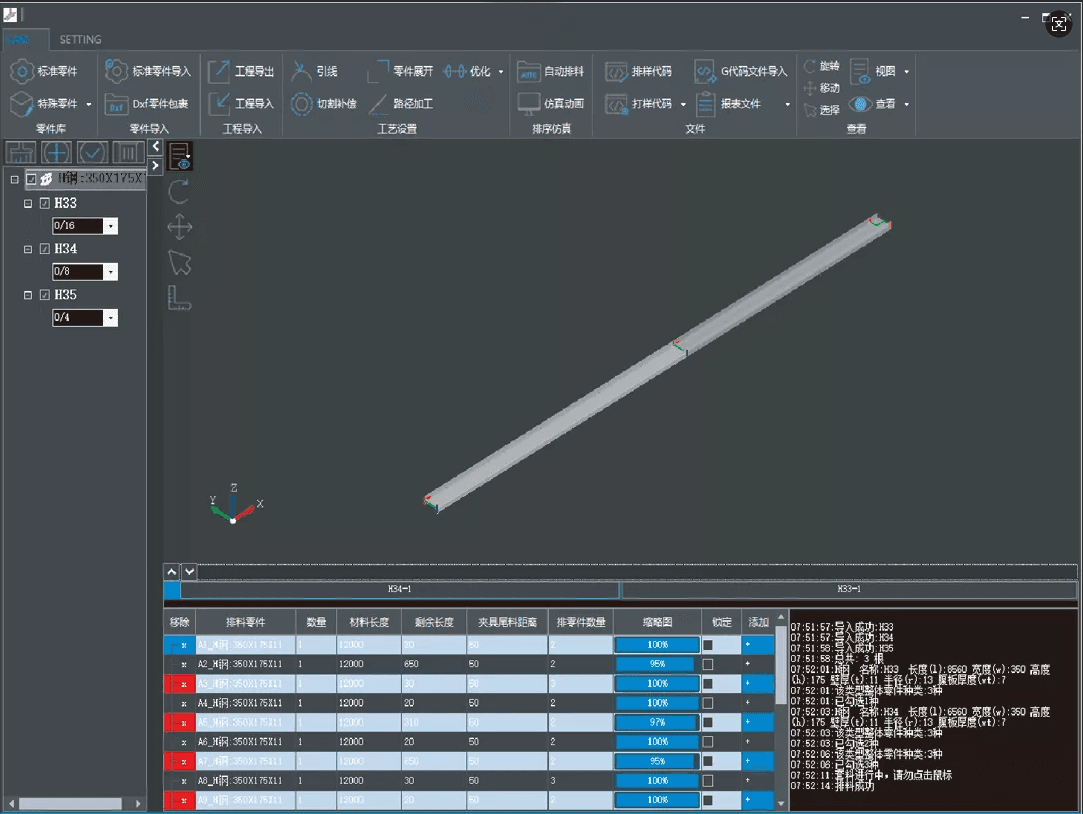

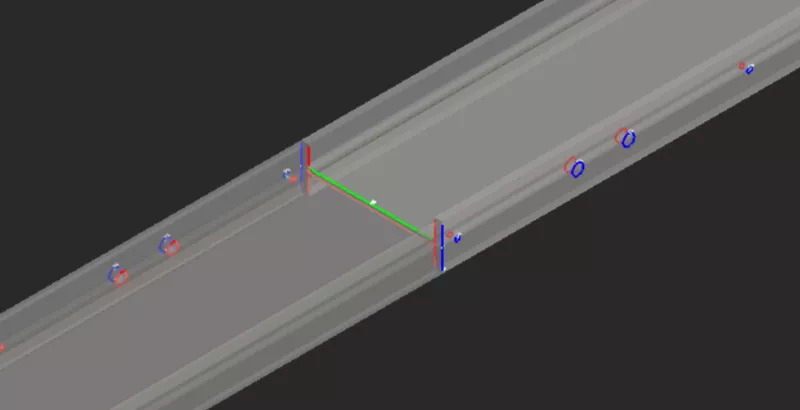

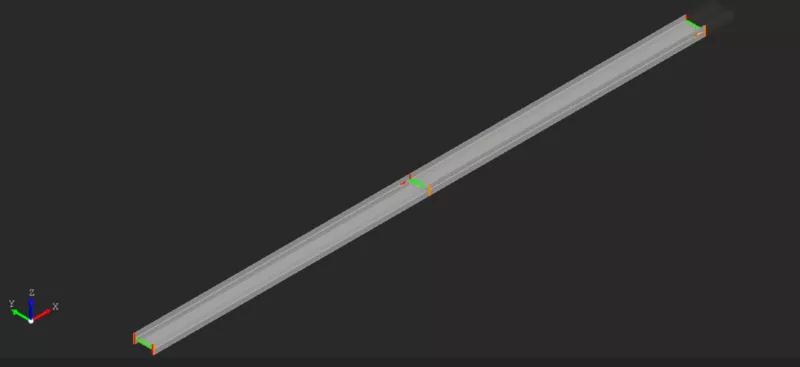

Intelligent Nesting Fast, Save, and Superior
Intelligent nesting Recycling up to 99% utilisation rate
Five-axis design Flexible response
Cut-off, bevelling, hole-cutting, scribing, locking, variable sections

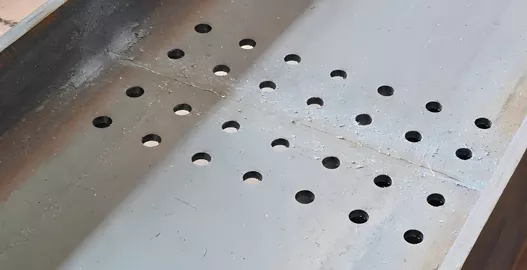

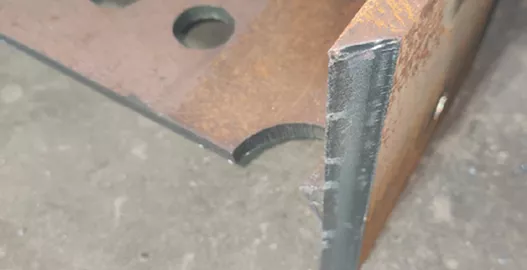

bevels perforation

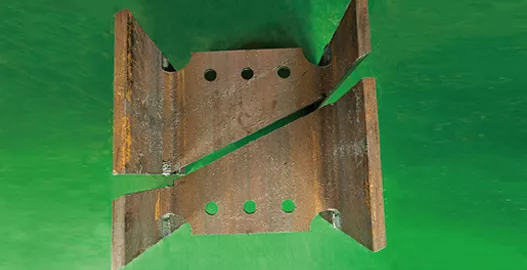

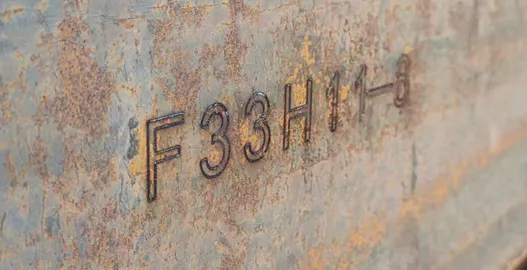

truncae marking and scribing

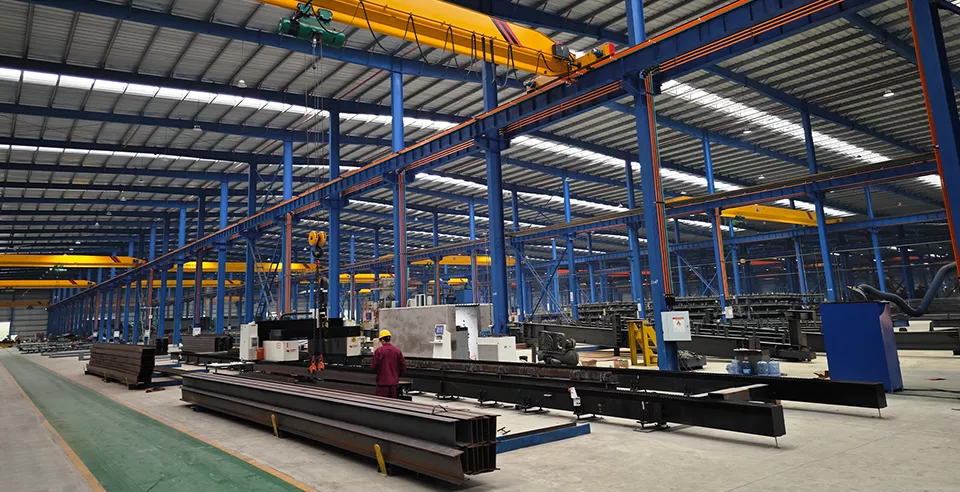

Professional Research and Development
