The medical device industry demands a level of precision that transcends standard industrial requirements. When manufacturing life-saving tools such as cardiovascular stents, orthopedic implants, or robotic surgical instruments, the margin for error is non-existent. Traditional mechanical machining often struggles with the microscopic scales and complex geometries required for modern healthcare. This has positioned Fiber Laser Micromachining as the definitive technology for high-stakes medical fabrication.
Intouchray (intouchray.com) brings Noble Precision to the surgical suite. By utilizing ultra-fine beam diameters and sophisticated motion control, we enable the production of instruments that are as reliable as they are precise, ensuring the Strategic Reliability required for human health.
1. Cardiovascular Stents: The Pinnacle of Micromachining
Manufacturing a stent requires cutting intricate mesh patterns into tiny metal tubes (often Nitinol or Cobalt-Chromium) with widths measured in microns.
Key Considerations in Medical Laser Cutting
Kerf Minimization: Fiber lasers produce an incredibly narrow kerf, allowing for the creation of ultra-thin struts that maintain structural integrity while remaining flexible enough for arterial navigation.
Burr-Free Results: The high energy density of the laser vaporizes material so cleanly that post-processing requirements—such as chemical etching or mechanical polishing—are significantly reduced.
2. Surgical Instruments and Robotic End-Effectors
As surgery moves toward minimally invasive and robotic-assisted procedures, the tools must become smaller and more complex.
Technical Analysis: Medical Laser Cutting
Complex Geometries: Laser cutting enables the fabrication of micro-hinges, serrated grippers, and needle drivers from high-grade stainless steel with tolerances that mechanical mills cannot achieve.
Material Integrity: The localized heat of the laser ensures that the surrounding material retains its biocompatibility and mechanical properties, which is critical for tools that must withstand repeated sterilization cycles.
3. Orthopedic Implants and Surface Texturing
Beyond cutting, lasers play a vital role in preparing the surface of implants to improve patient outcomes.
Applications and Industry Impact
Osseointegration: Lasers can be used to create specific micro-textures on the surface of titanium hip or knee replacements, encouraging bone growth and improving the long-term stability of the implant.
Permanent Traceability: Using integrated marking protocols (Article #108), every medical component is engraved with a high-contrast, UDI-compliant (Unique Device Identification) code that survives the harsh environment of the human body and medical sterilization.
Conclusion: Precision for Life
Article #88 illustrates that in the medical field, precision is not just a metric—it is a requirement for safety. By mastering the microscopic, Intouchray technology helps bridge the gap between engineering and biology. In Article #89, we return to the macro scale: Electrical Cabinets: High-Volume Sheet Metal Fabrication

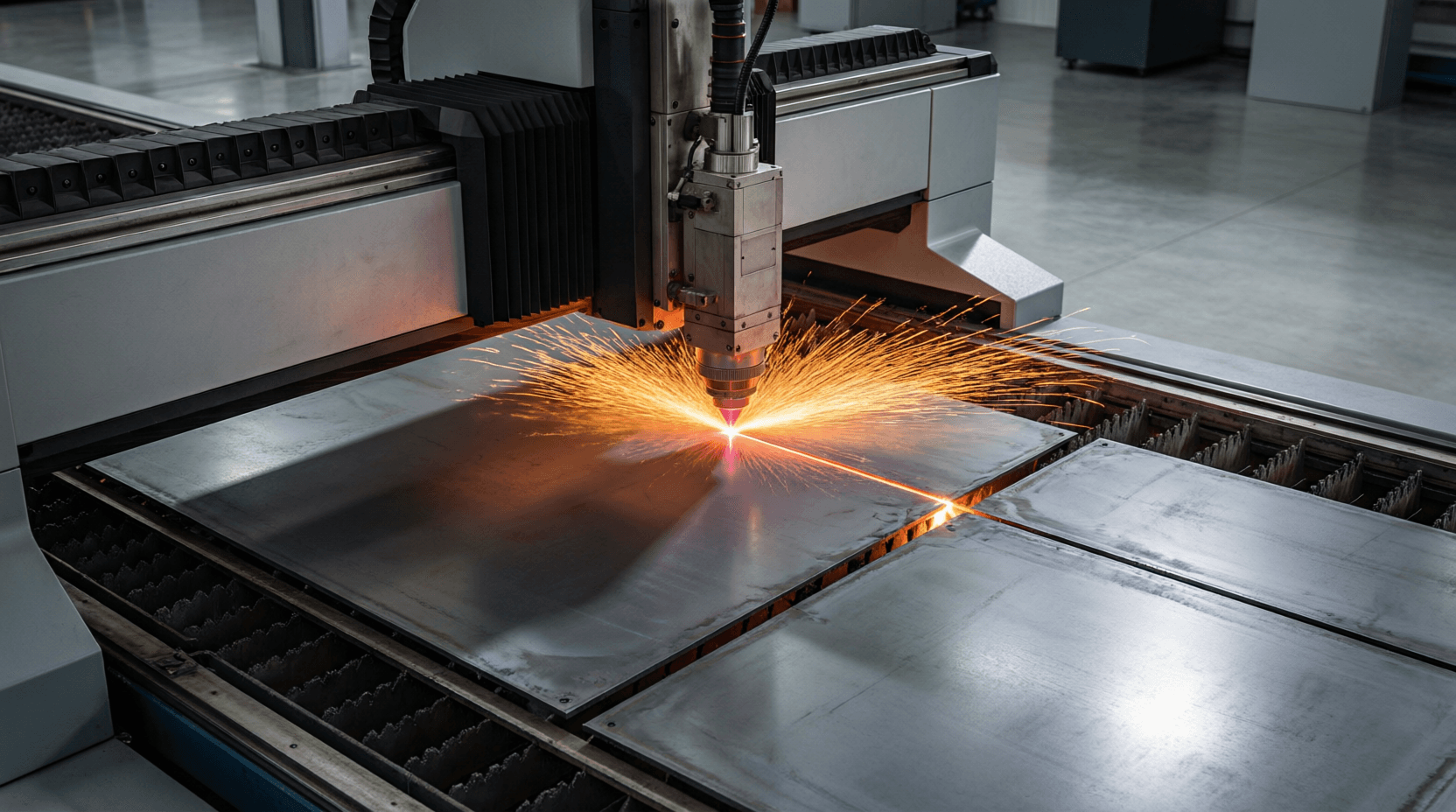

Industrial fiber laser cutting machine in a modern factory, high-power laser beam cutting through th
Performance Metrics and Benchmarks
Image Attachment
System Cutting 40Mm Thick Steel For A Bridge Project (1024×572px)
Technic al Comparison
Technical Specification
Picosecond UV Laser
Nanosecond IR Fiber Laser
Average Output Power
0.03 kW
0.15 kW
Pulse Duration
10 ps
150 ns
Maximum Cutting Speed
0.4 m/min
2.2 m/min
Minimum Kerf Width
12 µm
45 µm
Positioning Accuracy
±0.001 mm
±0.005 mm
Maximum Processable Thickness
0.6 mm
2.5 mm
Heat Affected Zone (HAZ) Width
< 2 µm
18 µm
Industrial fiber laser cutting machine in a modern factory, high-power laser beam cutting through th
Frequently Asked Questions
What is the typical tolerance range achievable with your micromachining services for medical devices?
Our micromachining services can achieve tolerances as tight as ±5 microns, ensuring high precision and accuracy in the manufacturing of medical devices.
How much does it cost to prototype a precision instrument using your laser machining technology?
The cost to prototype a precision instrument using our laser machining technology typically starts at $1,500, depending on the complexity and materials used.
What is the maximum size of the medical device components that can be processed by your laser micromachining systems?
Our laser micromachining systems can process medical device components up to 300 mm x 300 mm in size, providing flexibility for a wide range of applications.
Can you provide a lead time estimate for producing 1,000 units of a precision medical component?
The lead time for producing 1,000 units of a precision medical component is approximately 4-6 weeks, depending on the specific requirements and current production schedule.
Best Practices for Medical Laser Cutting
What is the power rating of the lasers used in your micromachining processes?
We use high-precision lasers with a power rating of up to 100 watts, which allows us to handle a variety of materials and achieve the required precision and quality.
What is the minimum feature size that can be achieved with your laser micromachining technology?
Our laser micromachining technology can achieve a minimum feature size of 10 microns, making it suitable for intricate and detailed medical device components.
