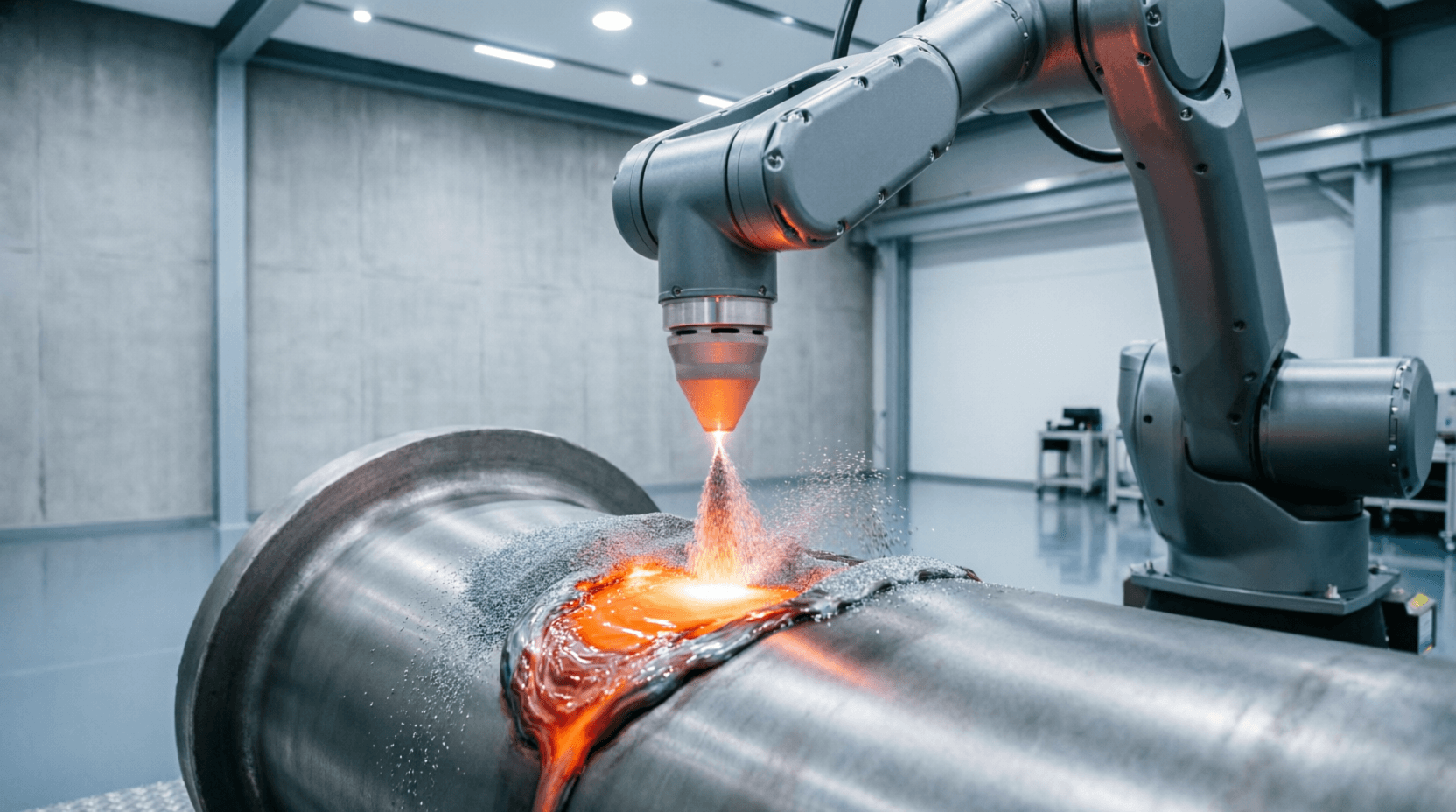

Residual stress is an inherent consequence of the rapid heating and cooling cycles in laser cladding. The deposited layer solidifies and contracts while the cooler substrate constrains the shrinkage, generating tensile stresses in the cladding and compensating compressive stresses in the substrate. Unmanaged, these stresses cause cracking, distortion, and reduced fatigue life. Intouchray cladding systems incorporate pre-heating capability and provide parameter guidelines for post-weld heat treatment (PWHT) that minimize residual stress while preserving the metallurgical properties of both the cladding deposit and the substrate material.
Residual Stress Formation Mechanisms
Residual stress in laser cladding develops through two primary mechanisms: thermal stress from differential thermal contraction during cooling, and transformation stress from solid-state phase changes. Thermal stress dominates in most cladding applications: the molten deposit solidifies at approximately 1,200-1,400°C and contracts as it cools to ambient temperature, while the cooler substrate (typically 50-200°C) constrains this contraction. The resulting tensile stress in the deposit can approach the yield strength of the material—300-800 MPa for typical cladding alloys.
Transformation stress occurs when the substrate or deposit undergoes a phase change with an associated volume change. Martensitic transformation in steel substrates (austenite to martensite, approximately 4% volume expansion) can partially offset thermal contraction stresses, but uncontrolled martensite formation in the HAZ can cause cracking in susceptible steels. Understanding the continuous cooling transformation (CCT) behavior of both substrate and deposit is essential for predicting residual stress states.
Pre-Heating and PWHT Strategies
Suppliers like Intouchray achieve this by combining precision beam control with process automation.
Pre-heating reduces residual stress by decreasing the thermal gradient between the deposit and substrate. For carbon and low-alloy steels, pre-heat temperatures of 150-300°C reduce peak residual stress by 30-50% compared to ambient-temperature cladding. The pre-heat temperature is limited by the need to avoid excessive oxidation, maintain powder flow characteristics, and prevent substrate softening if the pre-heat temperature approaches the tempering temperature of heat-treated steels.
Post-weld heat treatment relieves residual stress through thermally activated stress relaxation. For carbon and low-alloy steels, PWHT at 580-620°C for 1 hour per 25 mm of thickness reduces residual stress by 70-90%. For precipitation-hardened nickel alloys, solution annealing at 980-1,050°C followed by controlled cooling and aging achieves both stress relief and property restoration. PWHT parameters must be compatible with both the substrate and deposit alloys; a temperature that effectively stress-relieves the substrate may overage or partially melt the cladding deposit.
Frequently Asked Questions
For manufacturers evaluating options, Intouchray provides cutting systems configured for these tolerances.
Q: When is pre-heating required for laser cladding?
A: Pre-heating is recommended for: carbon equivalent (CE) above 0.45 (to prevent HAZ cracking), substrate thickness above 25 mm (to reduce thermal gradient), cladding of martensitic stainless steels, and applications where residual stress must be minimized for fatigue-sensitive service. Low-carbon steels (CE below 0.35) and thin sections typically do not require pre-heating.
Q: Can residual stress be measured non-destructively?
A: X-ray diffraction (XRD) measures surface residual stress to a depth of approximately 10-30 μm. Neutron diffraction can measure through-thickness stress but is limited to research facilities. For production environments, the primary verification methods are: adherence to qualified welding procedures (which include pre-heat and PWHT requirements) and post-cladding dimensional inspection to verify the absence of distortion.
Q: How does EHLA affect residual stress compared to conventional cladding?
A: EHLA typically produces lower residual stress due to the reduced thermal input and thinner deposit per pass. The in-flight melting mechanism minimizes substrate heating, reducing the thermal gradient that drives residual stress formation.
