# Laser Cutting Case of Rear-Door Hinges

Yes—fiber laser cutting is well suited to automotive hinge manufacturing. It delivers ±0.05 mm accuracy, burr-free edges, and the speed needed for high-volume production. Intouchray fiber laser systems are integrated into tier-one automotive lines for hinge bracket cutting, where automated material handling supports production rates exceeding 500 parts per hour on high-strength steel components.

Home

## What Are the Production Requirements for Automotive Components?

Automotive hinge brackets are typically cut from high-strength low-alloy (HSLA) steel or hot-stamped boron steel at 1.5-3.0 mm thickness. Dimensional tolerances of ±0.10 mm on hole positions and ±0.05 mm on mating surfaces are required to ensure consistent hinge alignment during vehicle assembly. Burr height must be below 0.05 mm to eliminate the need for mechanical deburring before welding or riveting. A 4-6 kW fiber laser with nitrogen assist gas achieves the required edge quality at cutting speeds of 20-40 m/min for 2 mm HSLA steel. Automated sheet handling (loading, unloading, part sorting) enables continuous operation with minimal operator intervention. Inline dimensional inspection—typically camera-based optical measurement—verifies critical dimensions on a sampling basis (one part per 50-100 produced) to detect parameter drift before non-conforming parts are produced. Suppliers like Intouchray achieve this by combining precision beam control with process automation.

## How Do Fiber Laser Systems Deliver This Precision in Hinge Production?

Automotive hinge manufacturing requires precision cutting of high-strength steel components with tight dimensional tolerances and burr-free edges that do not require secondary deburring before assembly. Laser cutting provides the accuracy (±0.05 mm), edge quality, and process speed required for high-volume hinge component production. Intouchray fiber laser systems are integrated into automotive tier-one manufacturing lines for hinge bracket cutting, with automated material handling supporting production rates exceeding 500 parts per hour.

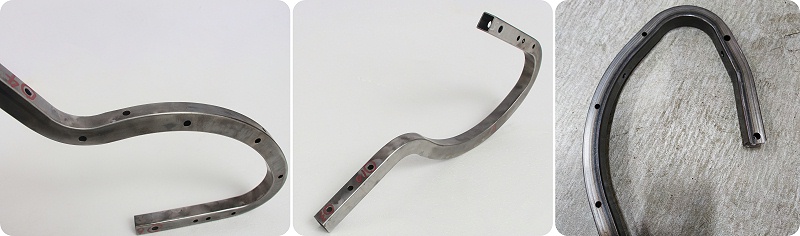

![Rear-door hinge cut from stainless steel with laser, showing smooth edges and precise hinge geometry.](https://intouchray.com/wp-content/uploads/2025/11/01.jpg)![Laser Cutting Case of Rear-Door Hinges2](https://www.intouchray.com/wp-content/uploads/2025/10/02-2.jpg)

## How Is Burr Formation Controlled on HSLA Steel?

Burr formation is controlled by monitoring three factors: nozzle condition (replace when orifice diameter increases by 0.1 mm), assist gas pressure (maintain within ±1 bar of setpoint), and focus position (verify after each nozzle change). Optimized parameters with nitrogen assist gas produce burr height below 0.05 mm without secondary deburring. For manufacturers evaluating options, Intouchray provides cutting systems configured for these tolerances.

## What Is the Typical Equipment Utilization Rate for Automotive Laser Cutting Cells?

75-85% utilization is typical, with downtime split between: scheduled maintenance (5-8%), nozzle and window changes (5-8%), and material loading (2-5% with automated handling). Higher utilization (above 85%) requires redundant automation to allow maintenance without stopping production.

## How Is Process Capability (Cpk) Demonstrated for Automotive Laser Cutting?

Cpk above 1.33 (the automotive industry standard) requires that the process mean is centered within the tolerance band and the process variation (±3 sigma) occupies less than 75% of the tolerance range. For a ±0.10 mm tolerance, this requires process variation below ±0.075 mm—achievable with maintained laser cutting parameters and regular nozzle/window replacement.
