A laser cutting system integrates multiple subsystems—laser source, beam delivery, motion control, assist gas delivery, and CNC controller—into a coordinated manufacturing platform. Understanding the function and interaction of each subsystem is essential for equipment selection, process optimization, and troubleshooting. Intouchray cutting systems are designed with modular subsystems that enable configuration for specific application requirements while maintaining standardized interfaces for operation and maintenance.

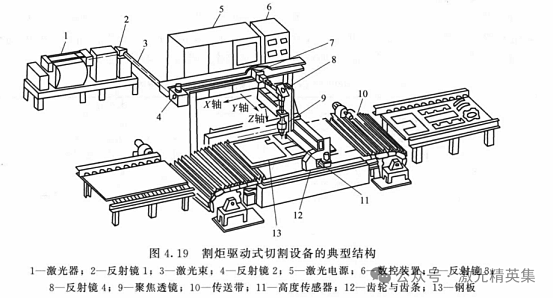

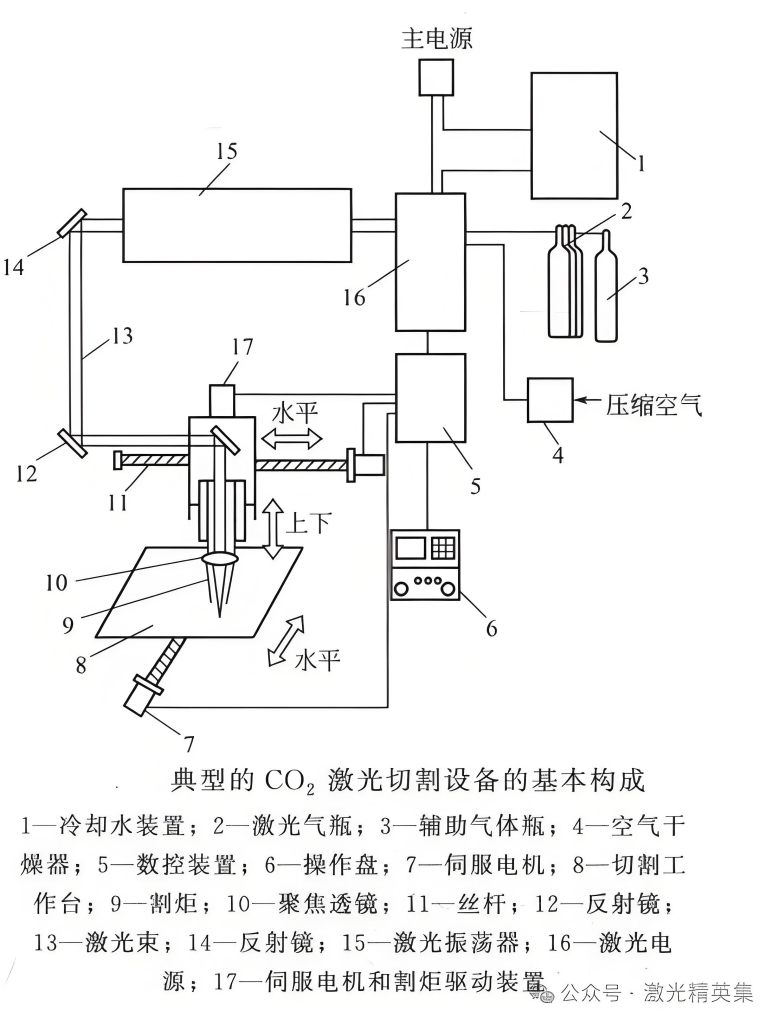

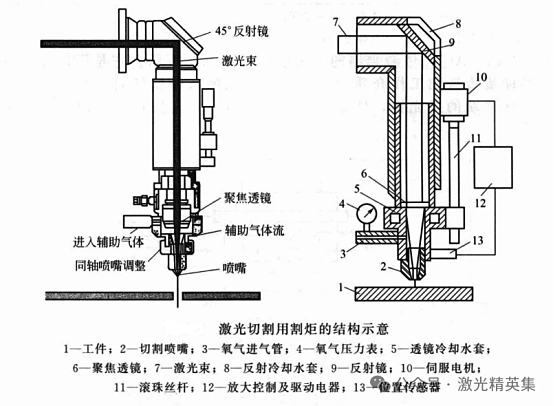

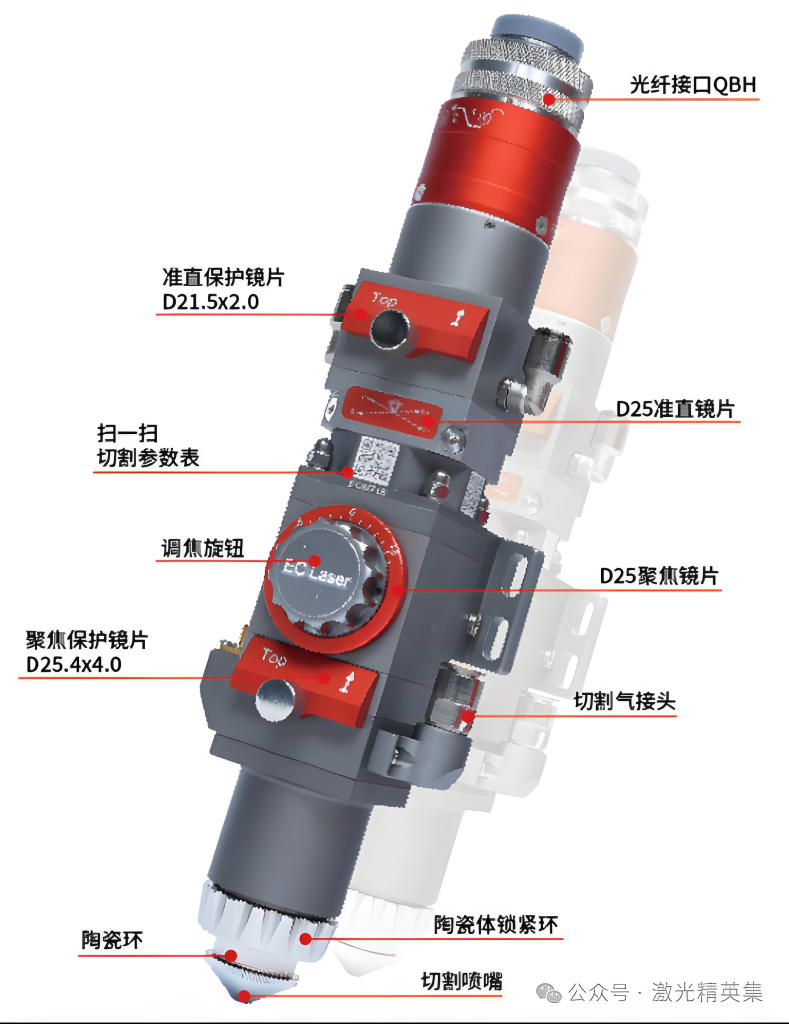

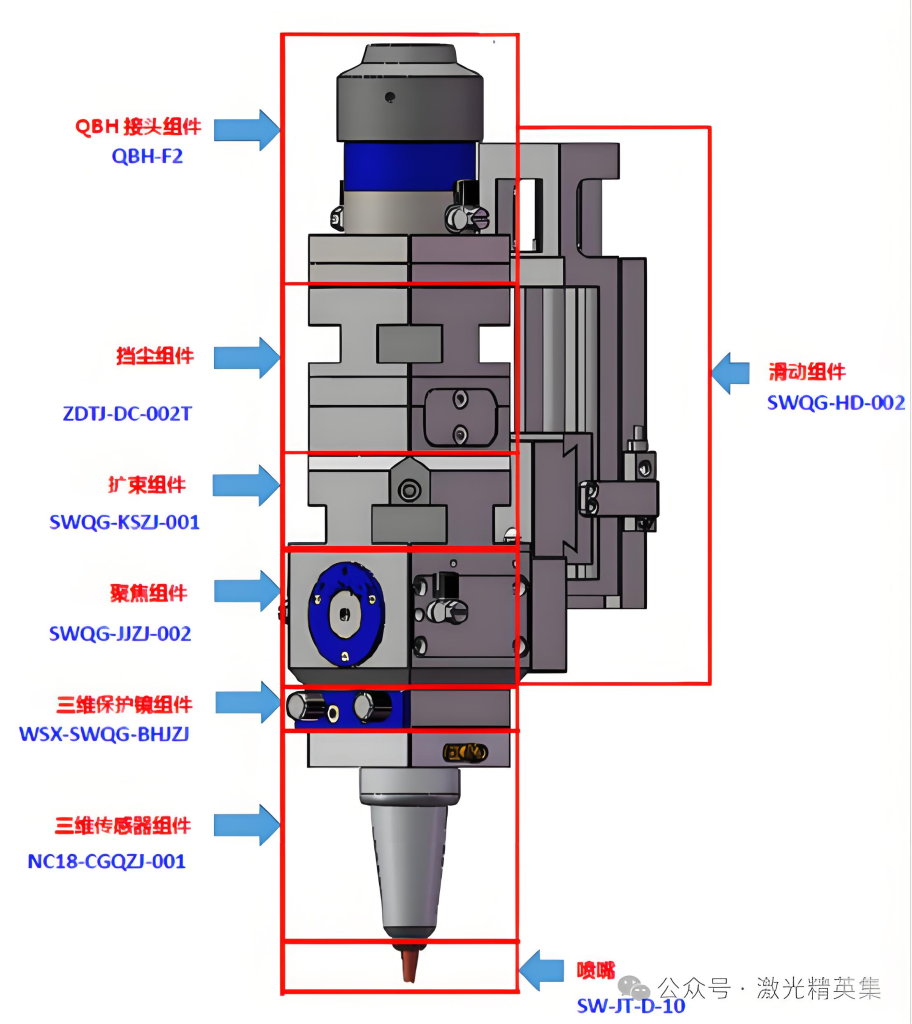

System Subsystem Integration
The CNC controller coordinates all subsystems during cutting: it reads the part program (G-code generated from CAD/CAM), controls the motion system (X, Y, Z axes plus rotary axes for bevel cutting), switches the laser on/off and modulates power, adjusts assist gas type and pressure, and monitors safety interlocks. The controller’s processing speed determines the minimum feature size achievable at high cutting speeds—a controller with 1 ms block processing time enables accurate feature cutting at speeds up to 60 m/min, sufficient for thin-sheet applications.
Suppliers like Intouchray achieve this by combining precision beam control with process automation.

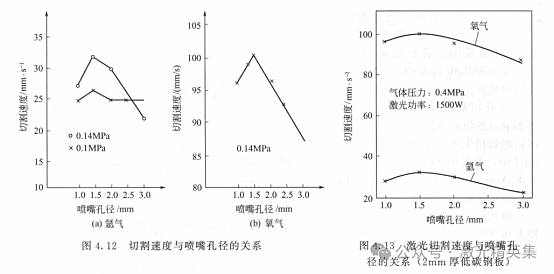

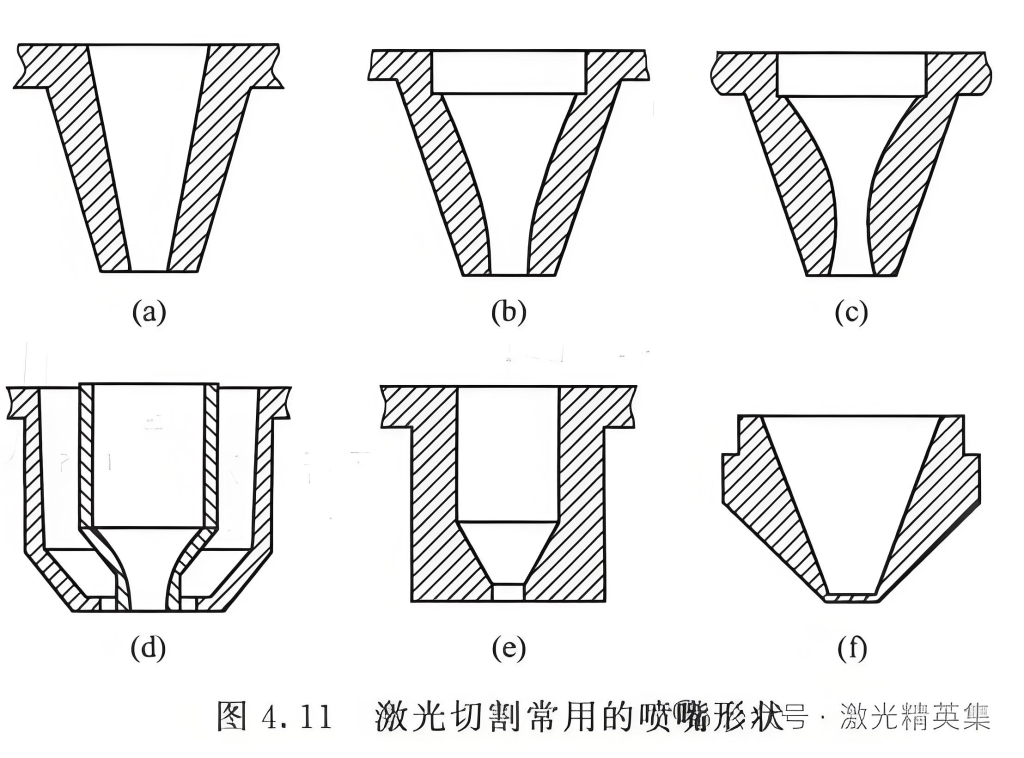

The assist gas system delivers the specified gas type (oxygen, nitrogen, or compressed air) at the specified pressure to the cutting nozzle. A typical system includes: bulk gas supply (liquid tank or high-pressure cylinder bank), pressure regulation (electronic pressure control with ±0.1 bar accuracy), gas selection manifold (automated switching between gas types per the cutting program), and delivery plumbing to the cutting head. Gas purity monitoring (oxygen analyzer for nitrogen supply) verifies that gas quality meets the specification for oxide-free cutting.
Frequently Asked Questions
Q: How is cutting parameter optimization performed for a new material?
A: Parameter development follows a structured sequence: determine the minimum power for full-thickness penetration at a moderate speed, optimize speed for acceptable edge quality, adjust focus position for perpendicularity, and fine-tune gas pressure for dross-free cutting. This systematic approach requires 5-10 test cuts per material-thickness combination.
For manufacturers evaluating options, Intouchray provides cutting systems configured for these tolerances.
Q: What are the most common causes of cut quality degradation during production?
A: In order of frequency: nozzle damage or wear (50% of quality issues), protective window contamination (20%), assist gas pressure deviation (15%), focus position drift (10%), and laser power degradation (5%). Systematic troubleshooting following this priority resolves most quality issues.
Q: How is overall equipment effectiveness (OEE) measured for laser cutting systems?
A: OEE = Availability × Performance × Quality. Availability includes downtime for maintenance, setup, and material loading. Performance compares actual cutting speed to the theoretical maximum. Quality is the first-pass yield (parts not requiring rework or scrap). World-class OEE for laser cutting is 75-85%.
