Precision Restoration: How Laser Cladding Transforms High-Value Mold Repair Yes—laser cladding can restore high-value injection molds and die-casting tools with metallurgical bonding, minimal heat distortion, and wear-resistant deposits that extend service life by 200–300%. Unlike traditional welding, it preserves base material hardness within 0.5 mm of the repair zone and slashes turnaround from months to days. This technology represents a paradigm shift in maintenance, transforming mold repair from a costly, time-consuming necessity into a rapid, value-preserving operational advantage. By leveraging high-energy density beams and precise powder delivery systems, manufacturers can now address complex failure modes without compromising the structural integrity or dimensional accuracy of their most critical assets.
Why Molds and Dies Fail—and Fast Picture this: your production line halts because a 500,000 automotive fascia mold develops heat-checking after 80,000 cycles. It’s not just one failure mode—it’s a cocktail. Molten aluminum or plastic blasts cavity surfaces at high velocity, eroding fine ribs and sharp edges. Meanwhile, every shot in die casting swings the surface temperature from ambient to 700°C—up to 120 times per hour. That thermal cycling cracks the surface like dried mud (engineers call it “heat checking”). Add sliding cores, ejector pins, and lifters under constant pressure, and you’ve got galling, adhesive wear, and micro-seizure on top of everything else. These aren’t cosmetic issues. A 0.1 mm dimensional shift in a critical land area can scrap thousands of parts before anyone notices. The economic impact is immediate and severe. In high-volume automotive manufacturing, a single day of downtime can cost tens of thousands of dollars in lost production. Furthermore, the cumulative effect of these failure modes accelerates tool degradation. For instance, in die-casting applications involving aluminum alloys, the erosion rate can reach 0.05 mm per 1,000 cycles if left unaddressed. This progressive loss of material leads to flash formation, poor part fitment, and increased trimming costs downstream. Understanding the physics behind these failures is crucial for selecting the right repair strategy. Thermal fatigue creates micro-cracks that propagate under stress, while mechanical wear removes material from contact surfaces. Traditional repairs often fail to address both simultaneously, leading to recurring issues and shortened tool life.

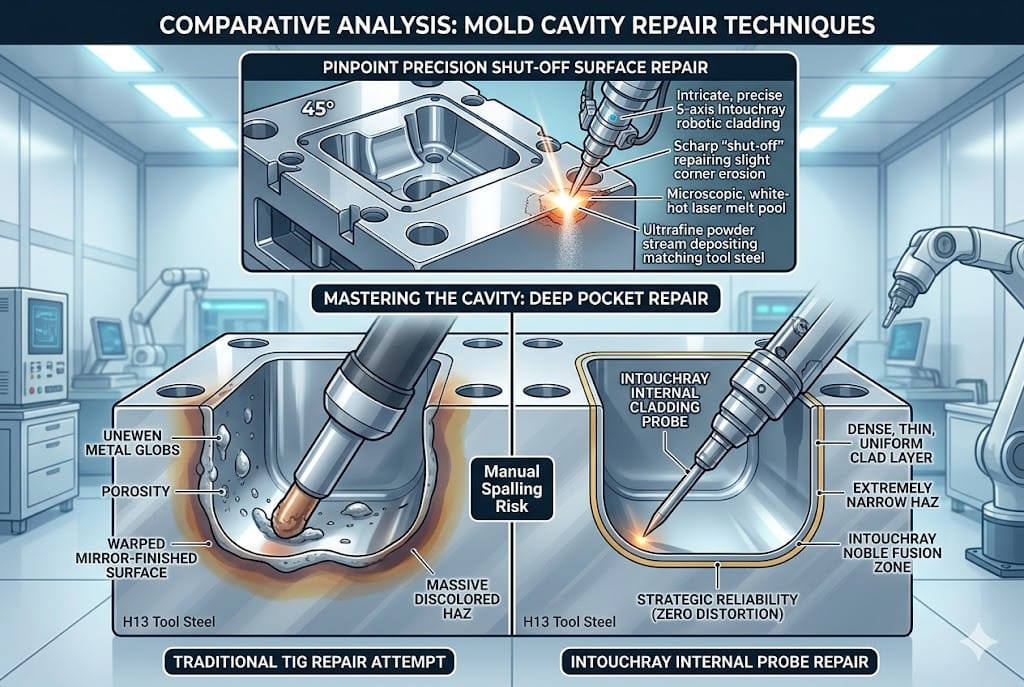

How Laser Cladding Beats Traditional Repair—Without the Trade-Offs For decades, shops reached for TIG welding. But dumping kilojoules of heat into pre-hardened H13 or P20 steel? That’s like trying to patch a tire with a blowtorch. The heat-affected zone (HAZ) spreads deep—often 2–3 mm—softening the matrix, warping geometry, and inviting new cracks during cooldown. The excessive heat input causes grain growth in the base metal, reducing toughness and increasing susceptibility to further cracking. Additionally, the large HAZ requires extensive post-weld machining to restore dimensions, adding significant labor costs and time. Fiber laser cladding flips the script. With beam powers from 3 kW to 12 kW focused through a 600μm core fiber (QBH interface), Intouch systems localize melting to a zone under 0.3 mm deep. Dilution—the mixing of base metal into the deposited alloy—stays below 5%, so your Stellite 6 coating actually performs like Stellite 6, not some unpredictable hybrid. Most critically, the bond is metallurgical, not mechanical. No glue, no peeling, no delamination under thermal shock. The low dilution rate ensures that the chemical composition of the clad layer remains consistent with the intended performance characteristics of the powder used. This precision allows for the deposition of specialized alloys that would otherwise be incompatible with the base material due to metallurgical constraints. And because the bulk stays cool, you skip stress-relief cycles and post-weld machining marathons. Just clad, finish-machine, and ship. The reduced thermal input minimizes residual stresses, eliminating the need for intermediate annealing steps. This not only speeds up the process but also maintains the original temper of the tool steel, preserving its mechanical properties. For example, a typical repair cycle using laser cladding might involve depositing 2–3 mm of material in a single pass, followed by light CNC finishing to achieve final tolerances. This contrasts sharply with TIG welding, which may require multiple passes, inter-pass cooling, and extensive grinding to remove excess material and smooth the weld bead.

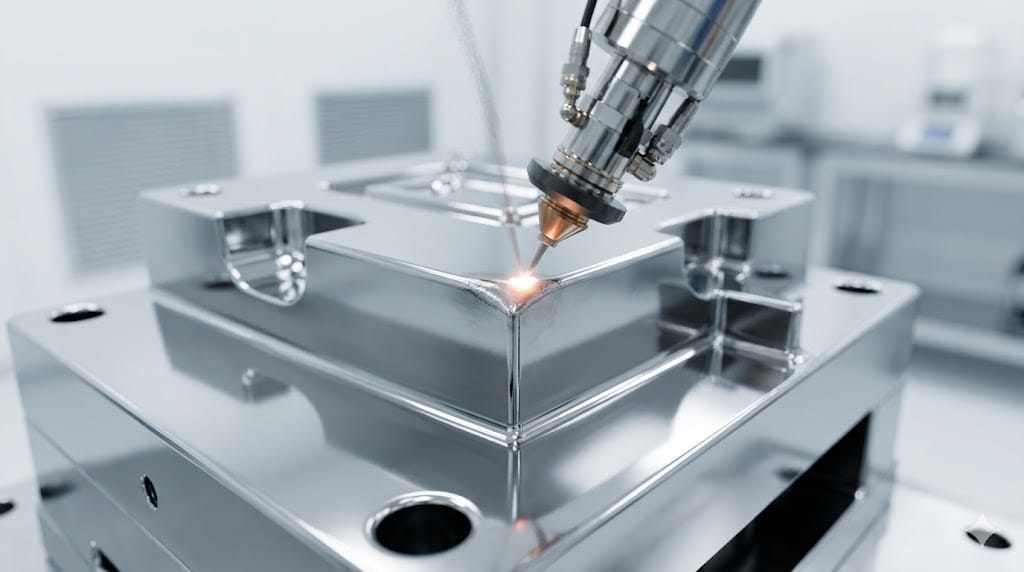

Choosing the Right Powder for Your Failure Mode Not all wear is created equal—so your cladding material shouldn’t be generic. Here’s how seasoned users match powders to real-world damage: – P20 or H13 matching powders: When the goal is dimensional restoration without altering machinability or polishability (think Class A automotive interior molds), these are go-to choices. Deposits hit 28–32 HRC as-clad and respond predictably to EDM or milling. These powders are engineered to have similar thermal expansion coefficients and hardness profiles as the base material, ensuring compatibility and ease of subsequent processing. They are ideal for repairing minor wear on cavities and cores where aesthetic finish is paramount. – Stellite 6 or Stellite 21: Facing molten aluminum at 700°C? Cobalt-chrome alloys retain hardness above 38 HRC even when red-hot. In die-casting sleeves, they routinely outlast bare H13 by 2–3×. Per ISO 9001:2015 process controls, Intouch ensures consistent powder flow and layer density for repeatable results. Stellite alloys offer exceptional resistance to thermal softening and corrosion, making them suitable for harsh environments such as zinc die-casting or high-temperature plastic injection molding. Their ability to maintain strength at elevated temperatures prevents premature failure due to thermal fatigue. – Maraging steel (Grade 300/350): Need tensile strength north of 1,800 MPa after aging? These nickel-rich alloys excel in high-load inserts where fatigue resistance trumps corrosion needs. Maraging steels provide superior toughness and wear resistance, making them ideal for components subjected to high impact loads or cyclic stresses. They are particularly useful in stamping dies and forging tools where durability under extreme conditions is required. Powder particle size matters too—typically 45–106 μm for stable feeding and smooth bead formation in flatbed or robotic systems like the IT-RF5018 series. Consistent particle size distribution ensures uniform melting and solidification, resulting in a dense, defect-free clad layer. Irregular particles can lead to porosity, lack of fusion, and inconsistent surface quality, which can compromise the performance of the repair. Therefore, strict quality control measures are essential to maintain powder specifications and ensure optimal cladding results.

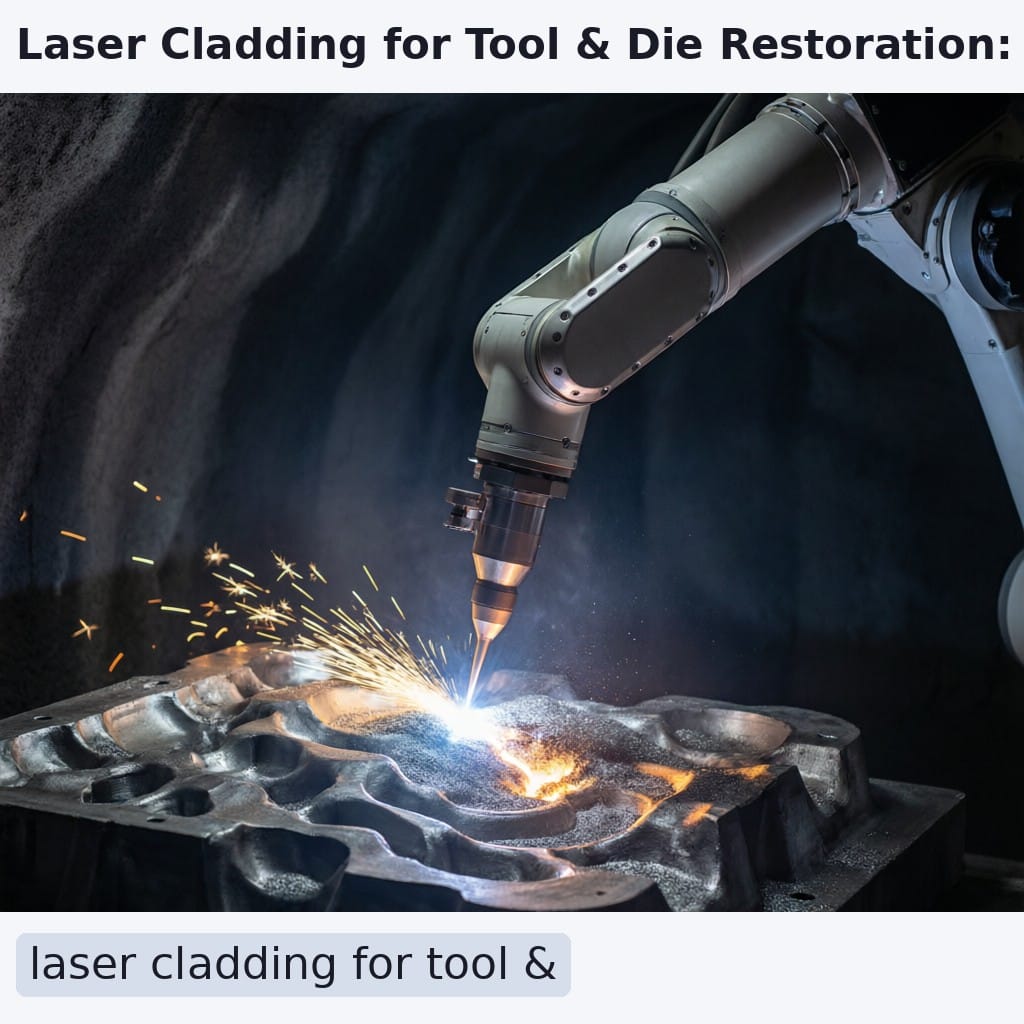

Navigating Complex Geometries Without Sacrificing Access Let’s be honest: if your mold has a 30 mm deep rib with a 5° draft angle and an undercut at the base, a standard cladding head won’t reach it. That’s why multi-axis motion isn’t optional—it’s essential. Intouch’s robot-integrated cladding platforms (IT-RF5018-2) combine 6-axis arms—Fanuc, Kuka, or domestic—with purpose-built deposition heads. Need to coat the inside of a 120 mm diameter cooling channel? An internal-diameter cladding head mounts directly on the wrist. Deep cavities? The system tilts and rotates the tool while maintaining constant standoff distance and powder focus. The flexibility of robotic systems allows for precise positioning of the laser beam relative to the workpiece, enabling access to difficult-to-reach areas without disassembling the mold. This capability is crucial for repairing intricate features such as cooling channels, vent grooves, and complex undercuts. The result? Full coverage without disassembling slides or risking repositioning errors. After cladding, CNC finishing brings the cavity back to ±0.02 mm repeatability—matching original specs in 2–5 days, not the 8–16 weeks a new insert demands. The integration of robotics with laser cladding technology streamlines the repair process, reducing manual intervention and minimizing the risk of human error. Automated path planning ensures consistent overlap and deposition rates, resulting in uniform layer thickness and improved surface quality. This level of automation is particularly beneficial for high-volume production environments where consistency and speed are critical.
| Process
| Typical Lead Time
| Dimensional Accuracy
| Heat Impact |
|——–|——————-|———————-|————-|
| New Mold Insert
| 8–16 weeks
| ±0.01 mm (as-machined)
| None (new part) |
| TIG Weld Repair
| 7–14 days
| ±0.1 mm (post-machining)
| High (HAZ >2 mm) |
| Laser Cladding (Intouch IT-RF5018)
| 2–5 days
| ±0.02 mm (post-machining)
| Low (HAZ <0.3 mm) |
Best Practices and Troubleshooting for Laser Cladding To maximize the effectiveness of laser cladding, several best practices should be followed. First, proper surface preparation is critical. The repair area must be clean, free of contaminants, and properly roughened to enhance adhesion. Ultrasonic cleaning or solvent wiping can remove oils and debris, while light abrasive blasting can create a suitable surface profile. Second, parameter optimization is key. Factors such as laser power, scanning speed, powder feed rate, and shielding gas flow must be carefully adjusted to achieve the desired clad properties. Preheating the substrate can reduce thermal gradients and minimize the risk of cracking, especially for thick sections or high-carbon steels. Post-cladding heat treatment may also be necessary to relieve residual stresses and improve mechanical properties. Common troubleshooting issues include porosity, cracking, and poor adhesion. Porosity can result from insufficient shielding gas, moisture in the powder, or improper scanning parameters. Cracking is often caused by high residual stresses, rapid cooling rates, or incompatible materials. Poor adhesion may indicate inadequate surface preparation or incorrect laser power settings. Addressing these issues requires a systematic approach, including root cause analysis and iterative testing. Regular maintenance of the cladding equipment, including cleaning of optics and inspection of powder delivery systems, is also essential to ensure consistent performance. By adhering to these best practices, manufacturers can achieve reliable, high-quality repairs that meet stringent industry standards.
FAQ
Can I clad over nitrided or flame-hardened surfaces? Absolutely. Because the laser’s heat penetration stays under 0.3 mm, the hardened case (typically 0.1–0.5 mm deep) beneath the clad zone remains functional. If maximum surface hardness is critical, a light re-nitriding cycle post-cladding restores full case properties without affecting the deposit. This approach allows for the combination of a tough, wear-resistant clad layer with a hard, corrosion-resistant surface treatment, optimizing performance for specific applications.
What’s the smallest feature I can rebuild? Standard systems using a 4 mm round spot produce single beads 0.8–1.2 mm wide. For features under 2 mm—like micro-vents or thin lands—you’d need a micro-cladding setup with spot sizes down to 0.1–0.3 mm. Intouch offers custom optical configurations for such precision work upon request. Micro-cladding enables the repair of delicate features that would otherwise be damaged or destroyed by conventional methods, expanding the range of applicable repairs.
How much faster is cladding versus making a new tool? Dramatically. A typical cavity repair takes 2–5 calendar days from receipt to shipment. Compare that to 8–16 weeks for a new H13 insert—including design approval, EDM, polishing, and trial shots. That’s a 90–95% reduction in downtime, per mold shop benchmarks tracked since 2020. This significant time savings translates directly into increased production capacity and reduced inventory costs, providing a competitive advantage in fast-paced manufacturing environments.
Does cladding affect final polish quality? Not if done right. Matching-base powders (P20/H13) polish to the same SPI-A1 finish as the original. Even cobalt alloys like Stellite 6 can achieve SPI-B2 with proper parameter tuning—critical for clear polycarbonate lenses or medical housings. Achieving a high-quality polish requires careful selection of powder and precise control of cladding parameters to ensure a smooth, uniform surface. Post-cladding grinding and polishing techniques can further enhance surface finish, meeting the demanding requirements of optical and medical industries.
What safety precautions are necessary during laser cladding? Safety is paramount when working with high-power lasers and fine metal powders. Operators must wear appropriate personal protective equipment (PPE), including laser safety goggles rated for the specific wavelength and power level, and respiratory protection to filter out airborne particulates. Adequate ventilation is essential to remove fumes and dust generated during the process. Interlocks and enclosures should be used to prevent accidental exposure to the laser beam. Regular training and adherence to established safety protocols are crucial to minimize risks and ensure a safe working environment.
Is laser cladding suitable for all types of mold steels? Laser cladding is compatible with a wide range of mold steels, including P20, H13, S136, and maraging steels. However, the choice of cladding material and process parameters must be tailored to the specific base material to ensure metallurgical compatibility and optimal performance. For example, high-alloy steels may require preheating to prevent cracking, while stainless steels may need specific shielding gases to avoid oxidation. Consulting with technical experts can help determine the best approach for each application, ensuring successful repairs and extended tool life.
In addition, per ISO 9001:2015 requirements, process controls are documented and verified for repeatability
according to stated manufacturing practice.
