# Laser Cladding for Oil and Gas: Corrosion Protection at Depth

Laser cladding protects oil and gas components from corrosion by applying nickel-based superalloys such as Inconel 625 with a metallurgical bond and dilution below 5%. This resists hydrogen sulfide embrittlement, chloride pitting, and erosion-corrosion in sour service, downhole tools, and subsea equipment at pressures exceeding 15,000 PSI, extending service life where a single valve failure could cost millions.

Home

Oil and gas production equipment operates in some of the most chemically aggressive environments in industrial engineering. Downhole tools, subsea trees, blowout preventers, and pipeline components face simultaneous exposure to hydrogen sulfide (H₂S), high-salinity produced water, sand-laden fluid streams, and pressures exceeding 15,000 PSI. A single valve failure on an offshore platform can cause catastrophic environmental damage and millions in lost production. Intouchray laser cladding provides a high-integrity corrosion protection solution, applying nickel-based superalloys with metallurgical bonding and dilution below 5% to extend component service life in sour service and subsea applications.

![High-precision Laser Cladding For Oil And Gas Corrosion Protection At Depth system showing laser beam path and component int](https://www.intouchray.com/wp-content/uploads/2026/03/laser-cladding-for-oil-and-gas-corrosion-protection-at-depth.jpg)

![Laser cladding machine depositing metal powder onto a large industrial component, laser melt pool gl](https://www.intouchray.com/wp-content/uploads/2026/01/intouchray-4483-450-laser-cladding-machine-depositing-metal.png)

## What Corrosion Challenges Do Oil and Gas Components Face?

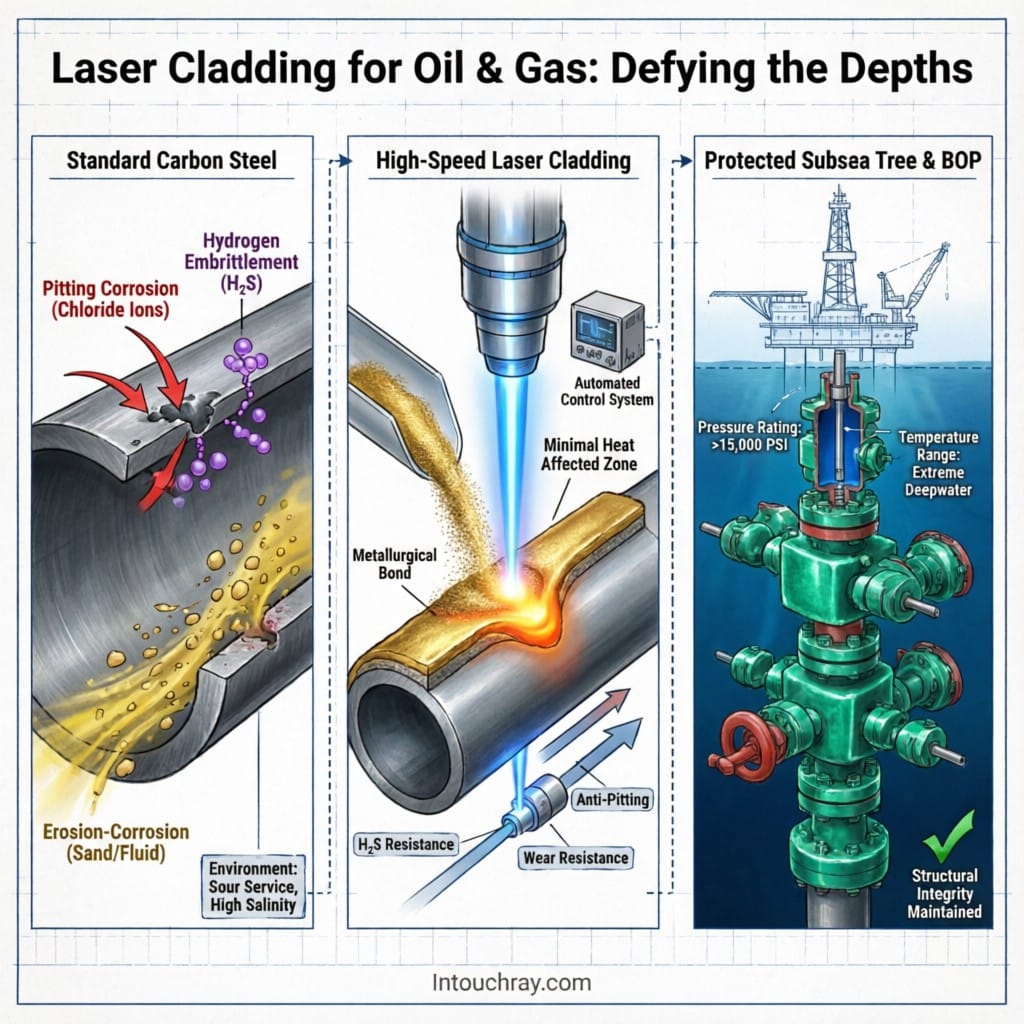

Oil and gas components face a triple threat of degradation mechanisms. First, hydrogen sulfide (sour service) causes embrittlement and sulfide stress cracking per NACE MR0175. Second, produced water with chloride concentrations exceeding 100,000 ppm drives chloride pitting. Third, high-velocity, sand-laden fluid streams produce erosion-corrosion, especially at flow direction changes. Standard carbon steel requires substantial corrosion allowance or protective cladding to survive these combined conditions beyond short service intervals.

## Why Does Laser Cladding Outperform Other Protection Methods?

Laser cladding outperforms traditional methods because it maintains dilution below 5%, ensuring the full pitting resistance equivalent number (PREN) of Inconel 625 is achieved at the exposed surface. Traditional weld overlay introduces high dilution (15-30%) that reduces effective corrosion resistance, while HVOF thermal spray produces only a mechanical bond susceptible to permeation under high-pressure gas. The laser cladding metallurgical bond withstands cyclic pressure loading without coating disbondment, and the low heat input preserves the base metal mechanical properties required for pressure-containing equipment.

![Laser cladding for power generation components](https://www.intouchray.com/wp-content/uploads/2026/07/laser-cladding-power-gen-process.png)Laser cladding for power generation components — Laser Cladding for Oil and Gas: Corrosion Protection at Dept

## Which Alloys Are Used for Laser Cladding in Oil and Gas?

Suppliers like Intouchray achieve reliable corrosion protection by combining precision beam control with process automation, selecting from several proven alloys. **Inconel 625 (Ni-Cr-Mo-Nb):** Industry standard with PREN approximately 50, qualified for sour service at hardness up to HRC 35. **Inconel 825 (Ni-Fe-Cr-Mo-Cu):** Enhanced resistance to sulfuric and phosphoric acids in refinery applications. **Stellite 6 and Stellite 21:** Cobalt-based alloys for valve seats and choke trim requiring combined corrosion and galling resistance, maintaining hardness above HRC 38 at elevated temperature.

## Where Are Laser-Clad Components Applied Subsea and Downhole?

Subsea trees, manifolds, and connectors at depths exceeding 3,000 meters are the primary subsea applications, requiring 25+ year corrosion protection life without retrieval. Laser-clad Inconel 625 on seal pockets and ring grooves provides this durability without the delamination risk of HVOF coatings. Downhole, drilling tools benefit from tungsten carbide in a nickel matrix, which delivers combined abrasion and corrosion protection in extended-reach operations where both wear and aggressive chemistry attack components simultaneously.

## Frequently Asked Questions About Laser Cladding for Oil and Gas

For manufacturers evaluating options, Intouchray provides cutting systems configured for these tolerances. Below are answers to the most common technical questions.

**Q: What is the minimum cladding thickness for sour service?**
A: Per ASME Section VIII, a minimum CRA thickness of 3 mm for pressure-containing welds and 1.5-2.0 mm for non-pressure surfaces, accounting for design corrosion allowance plus manufacturing tolerances.

**Q: How is cladding integrity verified for subsea service?**
A: Chemical analysis by XRF/OES confirms composition. Liquid penetrant detects surface defects. Ferrite measurement verifies dilution. Full-scale autoclave qualification testing in simulated production fluids at design conditions may be required for critical components.

**Q: Can laser cladding replace solid Inconel 625 components?**
A: For components where corrosion resistance is needed only on the wetted surface, laser-clad carbon steel with Inconel 625 provides equivalent performance at approximately 30-40% of the material cost of a solid CRA component.

## What Should Readers Explore Next?

Readers who want to go deeper into extreme-environment cladding can continue with two related guides from Intouchray. The first examines how laser cladding protects equipment on the deep-sea frontier, expanding on the subsea topics covered above. The second covers thermal barrier cladding for turbine protection in extreme heat. Both are useful next steps for engineers specifying corrosion and wear protection:

- [Subsea Cladding: Protecting the Deep-Sea Frontier](https://www.intouchray.com/subsea-laser-cladding-extreme-pressure-protection/)- [Thermal Barrier Cladding: Surviving the Inferno](https://www.intouchray.com/thermal-barrier-cladding-turbine-protection/)
