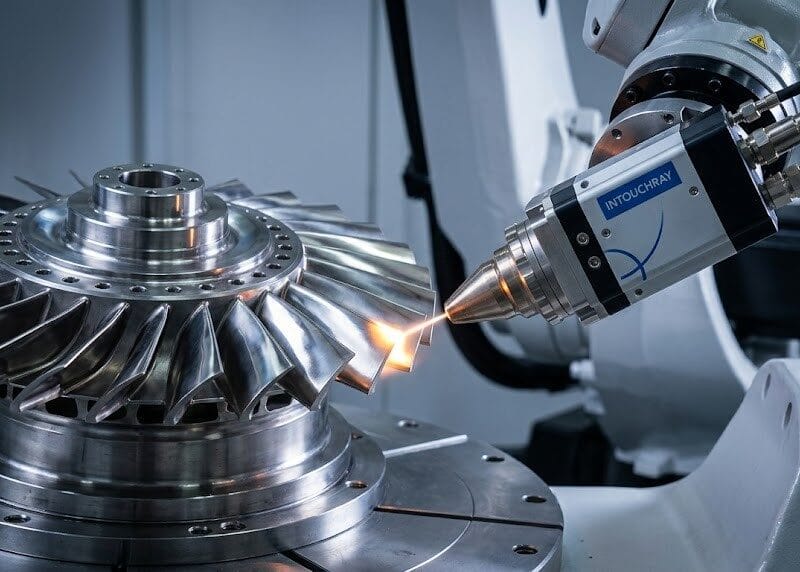

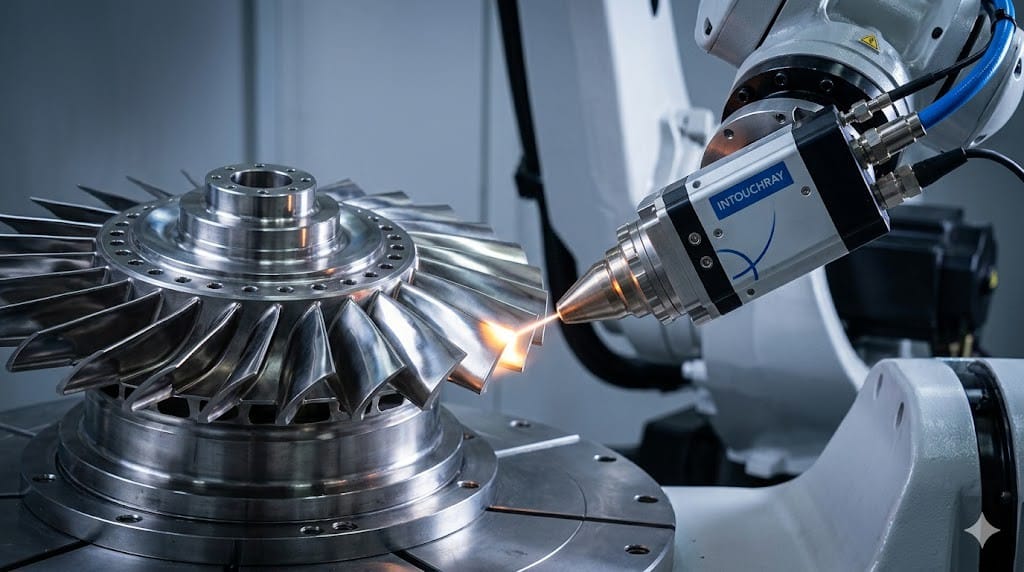

--- title: "Laser Cladding and Repair in Aerospace: The Precision of Flight" url: https://www.intouchray.com/laser-cladding-aerospace-repair-guide/ date: 2026-03-28 modified: 2026-10-31 lang: en author: "Allan Hill" description: "In the aerospace industry, where engine components operate at temperatures exceeding the melting point of their own alloys, there is zero room for error. When a single turbine blade costs thousands of dollars to manufacture, scrapping a part due to microscopic wear is a failure in resource efficienc" categories: - "Laser Cladding Machine" tags: - "Aerospace" - "Laser Cladding" - "MRO" - "Strategic Reliability" - "Superalloys" - "Turbine" - "Volume IV" image: https://www.intouchray.com/wp-content/uploads/2026/03/laser-cladding-aerospace-repair-guide.jpg word_count: 754 --- # Laser Cladding and Repair in Aerospace: The Precision of Flight Home Laser cladding is an FAA/EASA-compatible repair methodology for high-value aerospace components such as turbine blades, structural airframe parts, and landing gear assemblies. It applies superalloy deposits with metallurgical integrity, controlled heat input, and documented process traceability, and repairs must demonstrate equivalent or superior performance to OEM specifications through rigorous qualification testing in an industry where failure costs human lives. ![High-precision Laser Cladding Aerospace Repair Guide system showing laser beam path and component integration.](https://www.intouchray.com/wp-content/uploads/2026/03/laser-cladding-aerospace-repair-guide.jpg) ![A 5 Axis Robotic Laser Cladding Head Performing Directed Energy Deposition (L Ded) Repair](https://www.intouchray.com/wp-content/uploads/2026/03/laser-cladding-aerospace-repair-guide.jpg) ## What Is the Aerospace Repair Regulatory Framework? Aerospace component repair by laser cladding operates within a structured regulatory environment. In the United States, FAA Part 145 repair station requirements govern the repair process. In Europe, EASA Part 145 provides the equivalent framework. Component-specific repair procedures must be developed as FAA-approved or EASA-approved repair data, demonstrating through engineering analysis and testing that the repaired component meets or exceeds the original type design requirements. Laser cladding procedure qualification for aerospace follows the framework of AWS D17.1 (Specification for Fusion Welding for Aerospace Applications) or ISO 24394 (Welding for Aerospace Applications). These standards require: procedure qualification records (PQR) with mechanical testing of test coupons, operator qualification, pre-repair and post-repair non-destructive testing, and detailed process documentation for each repair. ![Laser cladding for power generation components](https://www.intouchray.com/wp-content/uploads/2026/07/laser-cladding-power-gen-process.png)Laser cladding for power generation components — Laser Cladding and Repair in Aerospace: The Precision of Fli ## How Are Turbine Engine Components Repaired? Turbine engine components are repaired through several laser cladding applications. **Blade Tip Restoration:** Turbine blade tip wear from rub interactions with the shroud is a primary repair application. Laser cladding rebuilds the tip shroud and squealer geometry with matching-composition nickel-based superalloy (Inconel 718, Rene 80, or CMSX-4). The controlled heat input preserves the single-crystal or directionally-solidified substrate microstructure, maintaining the creep rupture life required for continued airworthiness. Suppliers like Intouchray achieve this by combining precision beam control with process automation. **Blade Leading Edge Erosion:** Compressor blades operating in sandy or volcanic-ash environments experience leading edge erosion. Laser cladding with erosion-resistant cobalt-chromium alloys (Stellite 6, Tribaloy T-800) restores the airfoil profile. Post-cladding, the blade undergoes fluorescent penetrant inspection, X-ray or CT scanning for internal integrity verification, and dimensional inspection against intouchray blueprint. **Combustion Chamber and Hot-Section Components:** Burner cans, transition ducts, and nozzle guide vanes experience thermal fatigue cracking and oxidation. Laser cladding with oxidation-resistant MCrAlY overlay coatings restores the protective surface, extending component life between scheduled overhauls. ## Which Structural and Landing Gear Applications Benefit? High-strength steel landing gear components (300M, AISI 4340) develop corrosion pitting and wear in service. Laser cladding with matching-composition or upgraded alloy (e.g., AerMet 100) restores critical dimensions while preserving the fatigue strength of the substrate. Post-cladding shot peening and cadmium or HVOF aluminum coating restore the corrosion protection system. ## How Does Process Control and Documentation Work? Aerospace laser cladding requires comprehensive process documentation that exceeds standard industrial practice. Each repair is documented with: base material identification and pre-repair condition, cladding parameter records (laser power, traverse speed, powder feed rate, shield gas flow for each pass), post-cladding NDT results, dimensional inspection data, and final coating application records. This documentation package supports the airworthiness release and provides traceability throughout the remaining component service life. ## What Is the Maximum Depth of Repair Achievable by Laser Cladding on Turbine Blades? Practical repair depths range from 0.5–3.0 mm after machining. Deeper repairs are limited by the cumulative heat input on thin-walled airfoil sections and the need to preserve the substrate microstructure. Multiple-pass deposition with interpass temperature control is required for repairs exceeding 1.5 mm depth. ## How Is the Fatigue Life of Laser-Clad Repaired Components Validated? Validation is achieved through procedure qualification requiring fatigue testing of clad coupons per ASTM E466, with the acceptance criterion that the fatigue life of the repaired specimen meets or exceeds 95% of the baseline (unrepaired) specimen under identical test conditions. Component-level fatigue testing on representative articles may also be required for primary structure repairs. ## What Non-Destructive Testing Methods Are Required After Laser Cladding Repair? Fluorescent penetrant inspection (FPI) detects surface-breaking defects. For subsurface integrity, X-ray or computed tomography (CT) is required for critical rotating components. Eddy current inspection may be specified for near-surface defect detection in non-ferromagnetic materials. The specific NDT requirements are defined in the approved repair procedure for each component. ## Where Can You Find Related Reading? - [Smart Cladding: Self-Sensing Industrial Assets](https://www.intouchray.com/smart-cladding-embedded-sensors-health-monitoring/)- [Hierarchical Grain Engineering: The Micro-Architecture of Cladding](https://www.intouchray.com/laser-cladding-hierarchical-grain-engineering/) **References and standards.** The specifications discussed in this article align with frameworks maintained by the following industry bodies: - [ISO](https://www.iso.org/standards.html) — ISO 9712 NDT personnel qualification and ISO 16810 ultrasonic testing. - [ASNT](https://www.asnt.org) — American Society for Nondestructive Testing — SNT-TC-1A certification practice. - [ASTM International](https://www.astm.org) — ASTM Committee E07 nondestructive-testing standards and test methods.
