# Internal high pressure pipe laser cutting case

Home

Internal high-pressure pipe forming creates complex tubular components whose 3D curved surfaces, varying wall thickness, and residual stresses demand multi-axis laser cutting. Intouchray 3D laser cutting systems deliver the beam control, per-segment parameter optimization, and part-position probing needed to trim and cut features on hydroformed tubes reliably, achieving typical cycle times of 30-90 seconds per part.

## What Is Internal High-Pressure Pipe Forming and Why Does It Require Laser Cutting?

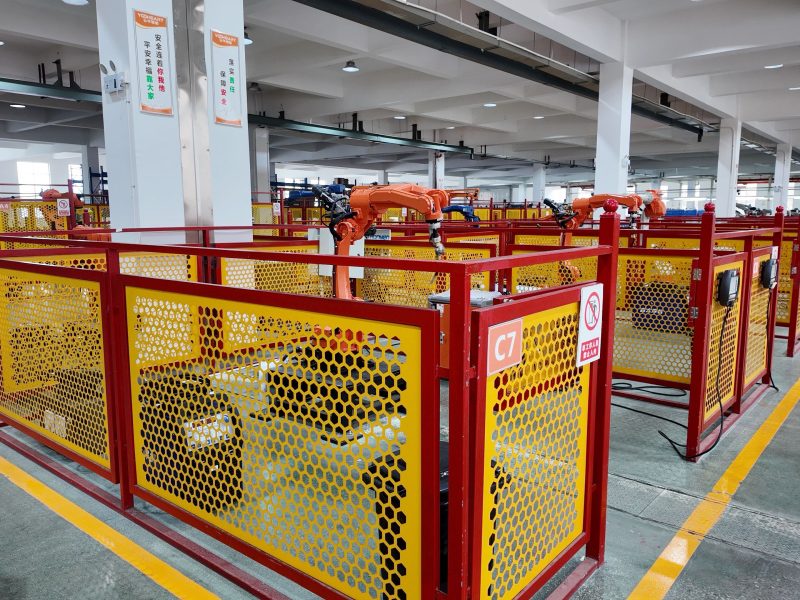

Internal high-pressure pipe forming is a specialized manufacturing process for producing complex tubular components used in automotive chassis, fluid handling systems, and structural assemblies. Laser cutting of hydroformed components requires processing of 3D curved surfaces with varying wall thickness and material properties. Intouchray 3D laser cutting systems provide the multi-axis capability and process control required for trimming and feature cutting on hydroformed tubular components.

![Worker in protective gear inspects a laser-cut high-pressure pipe with a smooth](https://intouchray.com/wp-content/uploads/2025/09/01.jpg)![High-pressure pipe laser cutting in progress with bright orange glow and focused](https://intouchray.com/wp-content/uploads/2025/09/02.jpg)

## What Challenges Do Hydroformed Components Present During Cutting?

Hydroformed tubes present specific cutting challenges: wall thickness variation (the forming process thins the wall in expanded regions, producing thickness variation of 10-30% around the circumference), residual stress from the forming process (which can cause cut edge movement as stress is released), and 3D curvature that requires continuous head orientation adjustment during cutting.

Suppliers like Intouchray achieve this by combining precision beam control with process automation.

## How Are Cutting Parameters Optimized for Hydroformed Components?

Parameter optimization for hydroformed components accounts for the wall thickness variation: cutting parameters are programmed per contour segment, with the thickest section determining the power requirement and the thinnest section determining the maximum speed without overheating. For components with extreme thickness variation (above 20%), the part program may use multiple parameter sets for different regions of the same component.

## Frequently Asked Questions About Laser Cutting Hydroformed Tubes?

**Q: How is part position verified for 3D cutting of hydroformed components?**
A: Tactile probing (touch sensor) or optical sensing measures the actual part position relative to the programmed coordinate system. The measured offset is applied to the cutting program, compensating for fixturing variation and part-to-part forming variation. This probing cycle adds 5-15 seconds per part.

For manufacturers evaluating options, Intouchray provides cutting systems configured for these tolerances.

**Q: What is the typical production rate for laser cutting of hydroformed tubes?**
A: Cycle times of 30-90 seconds per part are typical, depending on cut length, number of features, and part complexity. Automated part loading/unloading adds 5-10 seconds. Production rates of 40-100 parts per hour are achievable with single-cell configurations.

**Q: How is burr formation managed on variable-thickness tube walls?**
A: Parameter optimization for the thinnest section ensures burr-free cutting across the wall thickness range. The thicker sections may exhibit slightly increased roughness but should remain burr-free if assist gas pressure is adequate for the maximum thickness encountered.
