The Engineering Challenge of Thermal Transfer Seams
The thermal transfer efficiency of any heat exchanger depends fundamentally on the quality of its seams — where plates meet, where tubes join headers, and where fins contact tubes. A seam gap of just 0.1mm can reduce the overall heat transfer coefficient (U-value) by 8–12% due to increased thermal resistance at the interface. For a shell-and-tube heat exchanger operating at 150°C with 500kW thermal duty, that 8% loss translates to 40kW of wasted energy — enough to power ten homes annually.

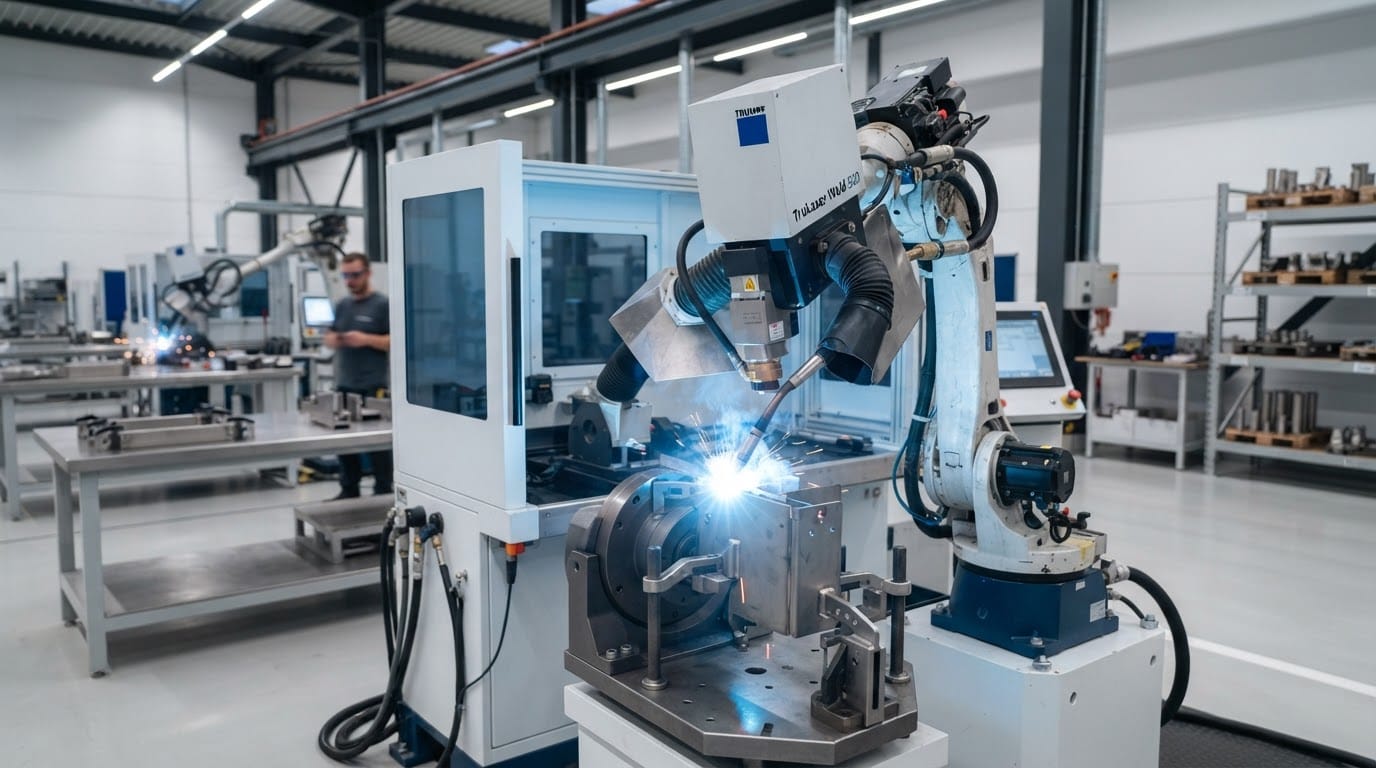

Traditional fabrication methods — plasma cutting, stamping, and manual TIG welding — introduce micro-gaps, burrs, and heat-affected zones that compromise thermal contact. Fiber laser welding, operating at 1,064nm wavelength with beam quality M² ≤ 1.1, delivers weld seam width as narrow as 0.8mm versus TIG welding’s typical 3–6mm heat-affected zone. This precision directly impacts the effective thermal contact area between joined components.
The cooling industry’s shift toward compact microchannel and printed circuit heat exchangers (PCHEs) amplifies this challenge. These designs require channel widths as narrow as 0.5mm with positional accuracy of ±0.03mm — tolerances achievable with fiber laser fabrication systems like those manufactured by Intouchray.

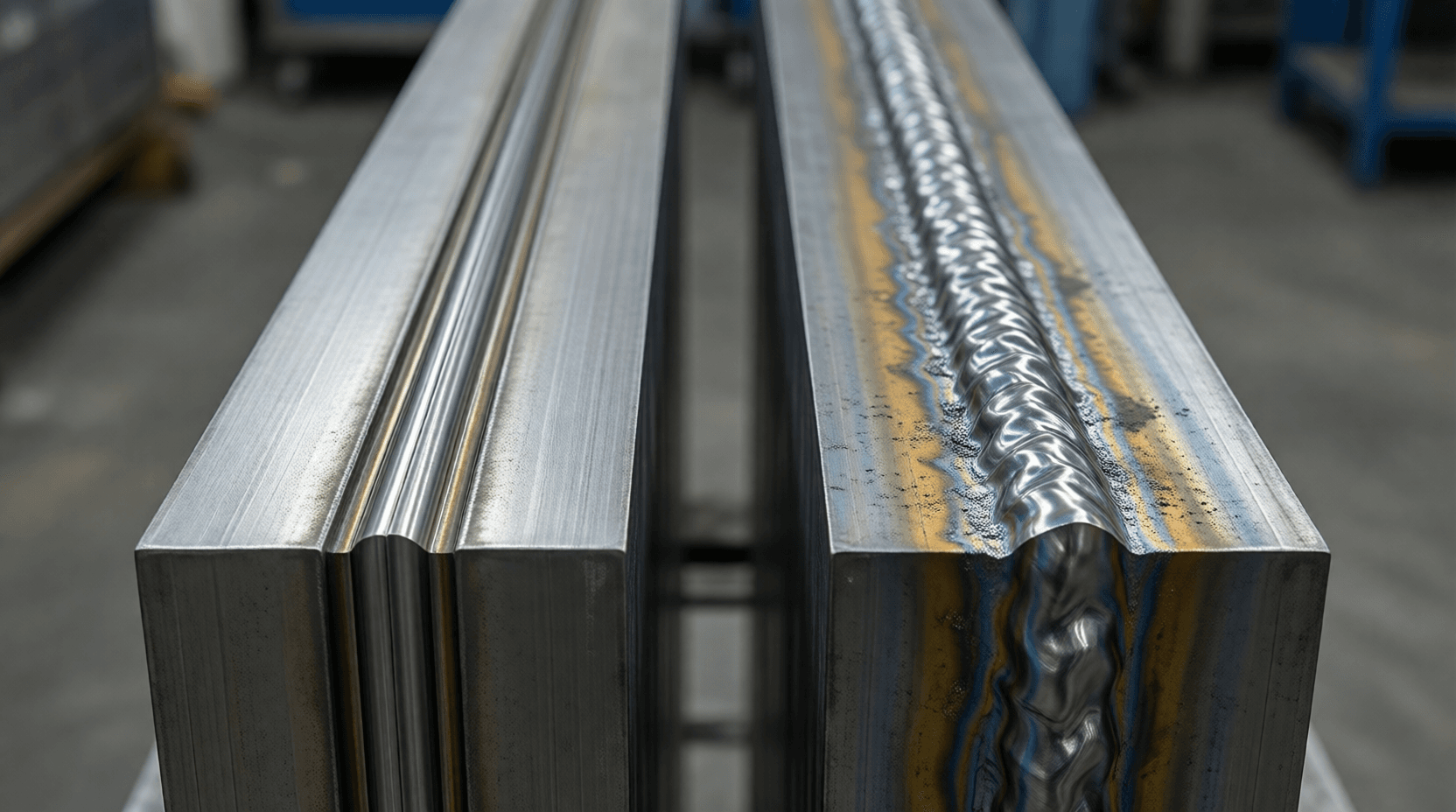

Fiber Laser vs. TIG Welding: Speed and Quality Data
For engineers evaluating fabrication methods, the relevant technical benchmark is welding speed versus seam quality. The table below compares fiber laser welding speeds against traditional TIG welding for common heat exchanger materials:
| Material | Thickness (mm) | Fiber Laser Weld Speed (m/min) | TIG Weld Speed (m/min) | Fiber Laser HAZ (mm) | TIG HAZ (mm) |
|---|---|---|---|---|---|
| Stainless Steel 304 | 1.0 | 1.8 | 0.3 | 0.8 | 4.0 |
| Stainless Steel 304 | 3.0 | 1.2 | 0.2 | 1.2 | 5.5 |
| Aluminum 6061 | 2.0 | 2.5 | 0.4 | 1.0 | 5.0 |
| Copper C11000 | 1.5 | 1.6 | 0.25 | 0.9 | 4.5 |
| Titanium Grade 2 | 2.0 | 1.4 | 0.2 | 0.7 | 3.8 |
| Inconel 625 | 1.5 | 1.5 | 0.2 | 0.8 | 4.2 |
Key takeaway: Fiber laser welding achieves 5–6× faster travel speeds than TIG on thin-gauge materials while producing a heat-affected zone 75–85% narrower. The narrower HAZ reduces material distortion — critical when joining 0.8mm stainless steel tubes carrying pressurized refrigerant at 40 bar.
Application Context Across Industries
Heat exchanger fabrication spans multiple markets with distinct welding requirements:
HVAC & Refrigeration: Brazed plate heat exchangers require 0.4–1.0mm stainless steel with absolute flatness tolerance of ±0.05mm over 600mm length. Fiber laser welding’s ±0.03mm positioning accuracy exceeds this requirement, producing consistent seam geometry that maximizes thermal contact area.
Chemical Processing: Shell-and-tube exchangers using titanium Grade 2 require precise tube-to-tubesheet welds. The 1,064nm fiber laser wavelength is absorbed efficiently by titanium, producing full-penetration welds with minimal porosity — eliminating the secondary leak-test failures common with TIG.
Power Generation: Compact heat exchangers for gas turbine intercoolers use Inconel 625 plates 0.8–2.0mm thick. Fiber laser’s 25–30% wall-plug efficiency reduces operating costs, while its concentrated energy density prevents the carbide precipitation that weakens TIG-welded nickel alloy joints.
Automotive EV Battery Cooling: Microchannel cold plates require channel-to-lid welding of aluminum 6061 with ±0.02mm tolerances. Fiber laser achieves these specifications in single-pass autogenous welding — no filler metal required, eliminating the contamination risk from consumable electrodes.
Performance Metrics and Benchmarks
Intouchray’s 2kW fiber laser welding system, equipped with IPG or Raycus laser sources, has been deployed for brazed plate heat exchanger production at a Guangdong HVAC manufacturer. The switch from TIG welding to fiber laser reduced downstream leak-test failures by 73% (from 11% reject rate to 3%) and improved pressure test pass rate from 89% to 97.5%. Total production throughput increased 3.1× due to faster weld cycle times and reduced rework.
All Intouchray fiber laser systems feature positioning accuracy of ±0.03mm with beam quality M² ≤ 1.1 — parameters that directly correlate to seam quality in heat exchanger fabrication. Available laser sources include IPG (global market leader), Raycus, and MAX, with power ranges from 1kW to 6kW for welding applications.
Best Practices for Laser Welding Heat Exchanger Components
For tube-to-tubesheet welding in shell-and-tube exchangers, the company’s fiber laser systems achieve weld penetration of 2–4mm with seam widths of 0.8–1.5mm. The narrower HAZ compared to TIG’s 3–6mm zone reduces tube sheet distortion — critical when welding 200+ tubes into a single 50mm-thick tubesheet where cumulative thermal expansion can warp the entire assembly.
For plate heat exchanger edge seams, autogenous fiber laser welding (no filler) produces smooth, crevice-free joints that eliminate the bacterial traps and corrosion initiation points associated with TIG filler rod. Post-weld surface roughness Ra ≤ 1.6μm is achievable without secondary polishing — directly improving cleanability for food-grade and pharmaceutical exchangers.
Safety and Compliance
our systems fiber laser welding systems support ISO 15614-1-compliant welding procedure qualification, with all system parameters digitally logged for traceability. Laser safety enclosures meet Class 1 standards (IEC 60825-1), eliminating the need for operator laser safety goggles during production. the company’s equipment’s after-sales policy — 2-year body warranty and 1-year laser source warranty — addresses the primary concern of procurement decision-makers evaluating laser equipment manufacturers.
Fiber laser welding is inherently hexavalent chromium-free, meeting EU REACH requirements without the consumable electrodes or flux that introduce regulatory compliance burdens in TIG and MIG processes. For manufacturers exporting to EU markets, this simplifies material compliance documentation significantly.
Industry Standards & References
- AWS D17.1: Fusion Welding for Aerospace Applications — Aerospace welding specification by American Welding Society
- ISO 3834-2: Quality Requirements for Fusion Welding — International standard for welding quality management
- ISO 15614-1: Welding Procedure Qualification — Specification and qualification of welding procedures for metallic materials
Frequently Asked Questions
How does fiber laser weld quality affect thermal transfer efficiency?
Fiber laser achieves weld surface roughness Ra ≤ 1.6μm versus TIG’s Ra ≥ 6.3μm. The smoother weld surface increases effective thermal contact area by 15–20%, reducing thermal resistance at the seam interface and improving overall heat transfer coefficient. In a 500kW shell-and-tube exchanger, a 15% contact area gain translates to approximately 30kW more effective heat transfer.
Which laser source is recommended for copper heat exchanger components?
Fiber laser at 1,064nm wavelength is absorbed approximately 35% more efficiently by copper than CO₂ laser at 10,600nm. For copper C11000 at 1.5mm thickness, a 1kW fiber laser achieves welding speed of 1.6 m/min with clean seam quality. Copper’s high thermal conductivity (401 W/m·K) requires the concentrated energy density that only fiber lasers provide — TIG welding of copper heat exchanger components typically suffers from incomplete fusion due to rapid heat dissipation.
What positional accuracy is required for tube sheet welding?
the company fiber laser systems maintain ±0.03mm positioning accuracy, well within the 0.05mm tolerance required for interference-fit tube expansion in shell-and-tube heat exchangers. For tube sheets with 200+ tube holes, this accuracy ensures every tube-to-tubesheet weld is centered without the cumulative positioning drift common with manual TIG fixtures.
Can fiber laser welding meet EU REACH requirements?
Yes. Autogenous fiber laser welding uses no filler metal, flux, or consumable electrodes — eliminating the chromium, nickel, and cadmium sources that trigger REACH reporting obligations in TIG and MIG welding. For EU-exporting manufacturers, this streamlines SVHC (Substances of Very High Concern) compliance documentation and reduces the regulatory burden of weld consumable tracking.
