Glass Mold Repair Cleaning Welding amp: Integrated Laser Restoration
Glass molds serve as the critical foundation for manufacturing bottles, containers, and optical components. Prolonged exposure to extreme heat inevitably leads to contamination, edge notches, surface wear, and cracking. These defects directly compromise product clarity, dimensional accuracy, and overall tooling lifespan.

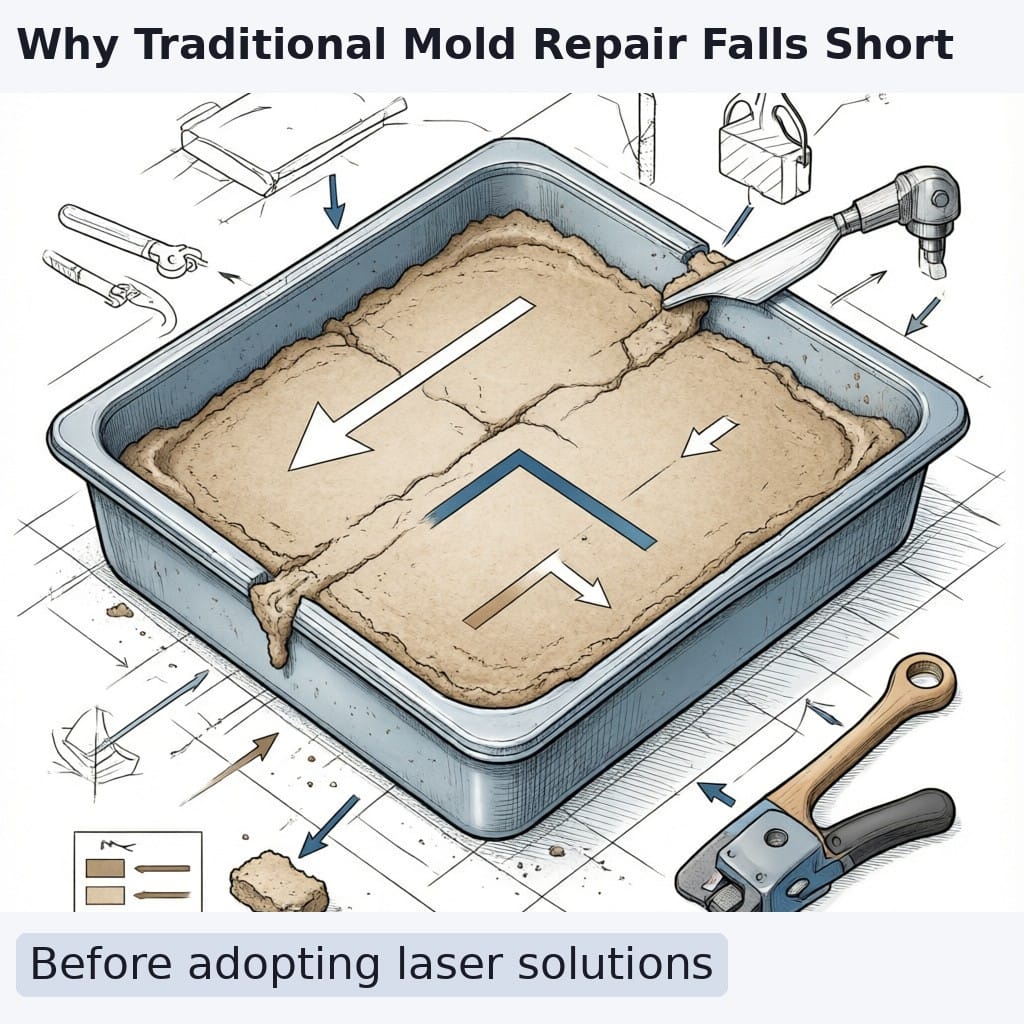

Conventional restoration methods like sandblasting, chemical etching, arc welding, or thermal spraying frequently introduce new risks. They can cause substrate damage, thermal distortion, excessive costs, and extended production stoppages. Modern laser technology offers a comprehensive alternative through three integrated stages:
- Pulsed laser cleaning for surface preparation
- Precision laser welding for notch and chip correction
- Robotic laser cladding for crack repair and large-area rebuilding
As a laser welding manufacturer with over two decades of experience, Intouch has developed systems specifically addressing these challenges. Since 2024, similar full-process laser solutions have been deployed across glass manufacturing facilities in Europe and Southeast Asia. The following guide details the workflow, technical advantages, and equipment considerations for effective glass mold restoration using pulsed cleaning, precision welding, and high-power cladding systems.
Why Maintaining Glass Tooling is Critical
Neglecting mold maintenance creates compounding operational issues that affect both profitability and product quality:
- High Replacement Costs: Glass molds are expensive capital assets; premature replacement erodes margins.
- Product Defects: Surface imperfections translate directly into bubbles, streaks, and poor transparency in finished glassware.
- Unplanned Downtime: Cracks and accelerated wear force frequent line stops, destabilizing production schedules.
- Degraded Precision: Traditional repair methods often damage fine tolerances, shortening remaining service life.
Laser-based restoration addresses these pain points through minimal heat input, near-zero distortion, micron-level precision, strong metallurgical bonding, and environmentally friendly operation.

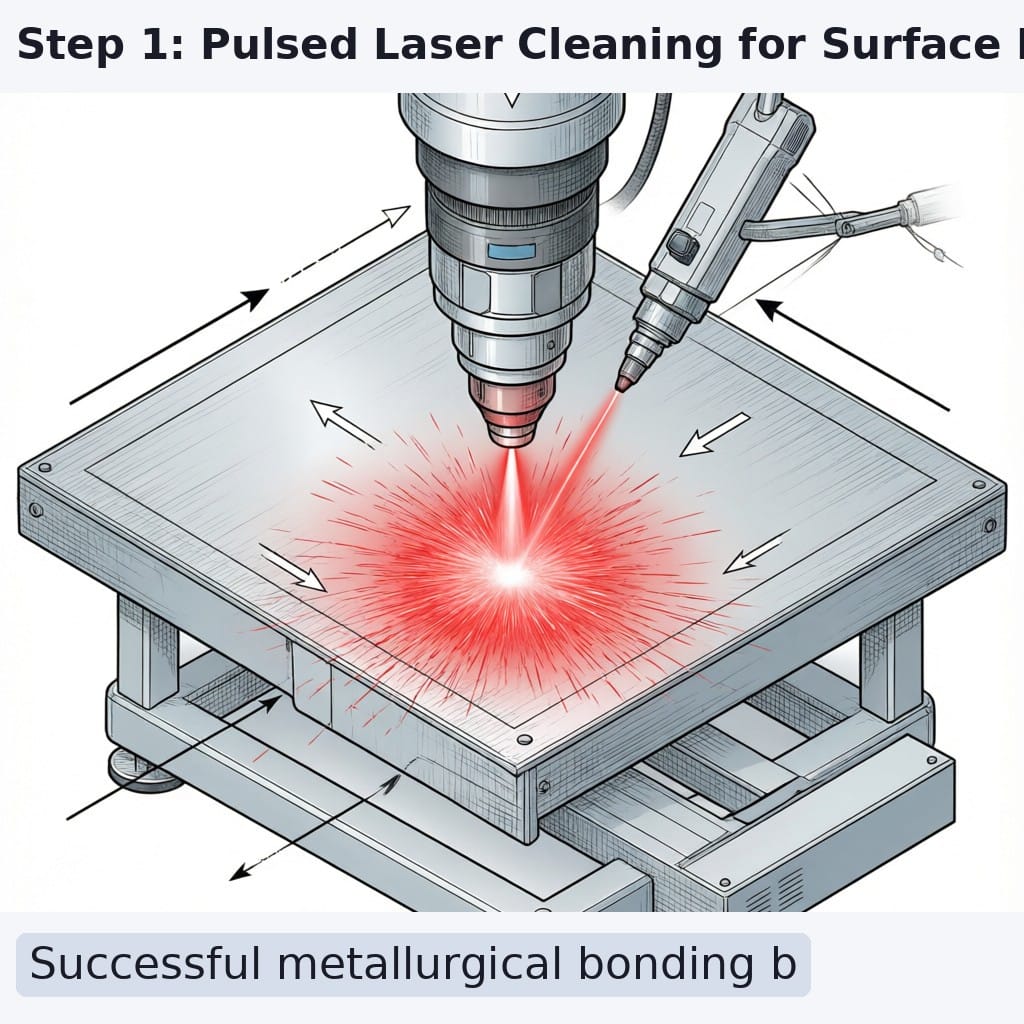

Stage 1: Pulsed Laser Cleaning for Surface Preparation
Contaminant Removal Without Substrate Damage
The first step in any reliable repair process is removing oxide scale, carbon deposits, residual glass, release agents, and stains. This must be accomplished without altering the mold’s critical surface geometry.
How Pulsed Cleaning Works
High-energy laser pulses selectively ablate surface contaminants while the underlying mold base reflects the energy and remains intact. This non-contact process eliminates abrasion and chemical exposure entirely.
Operational Advantages
- Non-Destructive: Preserves original mold precision and surface texture.
- Eco-Friendly: Eliminates chemical solvents and hazardous waste streams.
- Rapid Processing: Significantly reduces preparation downtime.
- Improved Adhesion: Creates optimal surface conditions for subsequent welding or cladding bonds.
Equipment Considerations for Glass Molds
For glass mold applications, pulsed fiber laser cleaning systems in the 200W to 500W range are typically specified. A 500W multi-mode pulsed system is often ideal for pre-repair surface preparation and daily maintenance on bottle molds, forming molds, neck rings, and high-temperature tooling.
Field experience indicates that glass molds accumulate thick release agent layers and sulfur scale under sustained high-temperature operation. A 500W pulsed source generally provides the best balance—higher power levels risk scratching precision textures, while lower power may fail to remove deep carbon deposits efficiently. Proper surface preparation ensures that subsequent welding and cladding achieve full metallurgical bonding rather than mechanical adhesion.
Stage 2: Precision Laser Welding for Notch and Edge Correction
Addressing Localized Defects
Small notches, edge chipping, localized wear, and minor surface defects require targeted intervention. This is where a dedicated mold repair machine proves essential for restoring dimensional accuracy without affecting surrounding areas.
Technical Parameters for Mold Welding
Precision laser mold welding systems designed for this work typically operate with the following characteristics:
- Power Range: Up to 1.5kW, with working power often maintained around 1200W for controlled deposition
- Pulse Parameters: Adjustable frequency (e.g., 15Hz), pulse width (e.g., 23ms), and modulation (e.g., 20kHz) for fine thermal control
- Filler Wire: Commonly SKD11 or similar tool steel at Φ0.4mm diameter
- Positioning Accuracy: Micron-level repeatability
- Heat-Affected Zone: Extremely narrow, preventing substrate warping
Core Benefits for Glass Tooling
- Micron-precision filling restores original dimensions
- Low heat input eliminates warping and sink lines
- Smooth deposited surface minimizes post-weld polishing
- Compatible with common tool steels including SKD11, H13, and P20
When evaluating a mold repair machine for sale, buyers should verify that the system supports fine wire feeding and adjustable pulse parameters suitable for tool steel. Those researching mold repair price factors should consider that precision laser systems, while representing a significant investment, dramatically reduce per-repair consumable costs and eliminate rework associated with traditional TIG welding. The parting lines and neck ring areas of glass molds are particularly prone to mechanical chipping; micro-laser welding allows technicians to deposit beads as small as 0.2mm directly on worn edges with complete thermal control.
Stage 3: Robotic Laser Cladding for Crack and Large-Area Restoration
Rebuilding Structural Damage
Cracks, extensive surface wear, dimensional loss, and structural degradation exceed the scope of precision welding. These conditions demand robotic laser cladding for reliable, long-lasting restoration.
System Specifications
High-power robot laser cladding systems for glass mold repair typically feature:
- Power Output: 3kW to 6kW continuous wave fiber laser sources
- Process: Synchronous melting of alloy powder and substrate surface
- Bond Type: True metallurgical fusion, not mechanical coating
- Thickness Control: Adjustable clad layer from 0.05mm to 1mm
- Automation: 6-axis robot with positioner for complex geometries
Why Cladding Outperforms Conventional Welding
- Narrow HAZ: Virtually eliminates substrate deformation
- Superior Bond Strength: Metallurgical fusion prevents peeling under thermal cycling
- Material Flexibility: Wear-resistant, heat-resistant, and corrosion-resistant alloys can be selected based on specific failure modes
- Extended Service Life: Properly executed cladding can extend mold life by 2–5x compared to unrefurbished tooling
Intouch manufactures robotic laser cladding systems, including the IT-RF5018 series with Fanuc, Kuka, Yaskawa, or domestic robot integration, specifically engineered for demanding industrial refurbishment tasks. These systems support payload capacities up to 5000kg and accommodate complex part geometries through dual-axis positioners and ground rails.
Complete Three-Stage Repair Workflow
An integrated glass mold repair process follows this sequence:
- Pulsed Laser Cleaning: Remove all contaminants and prepare surface for bonding
- Precision Laser Welding: Correct notches, chips, and small localized defects
- Laser Cladding: Rebuild cracks, restore worn areas, and apply protective surfaces
This one-stop approach combining cleaning, welding, and cladding eliminates the need for multiple vendors and incompatible processes.
| Process Stage | Primary Function | Typical Power Range | Key Advantage |
|---|---|---|---|
| Pulsed Cleaning | Surface preparation, contaminant removal | 200W–500W pulsed | Non-destructive, no chemicals |
| Precision Welding | Notch/chip repair, edge correction | Up to 1.5kW pulsed | Micron accuracy, minimal HAZ |
| Robot Cladding | Crack repair, large-area rebuilding | 3kW–6kW CW | Metallurgical bond, extended life |
Selecting Laser Equipment for Glass Mold Applications
When sourcing equipment for glass mold restoration, several factors distinguish capable suppliers from generic vendors:
- Complete Product Lineup: A single mold repair supplier offering cleaning, welding, and cladding systems ensures process compatibility and unified technical support.
- Application-Specific Parameters: Glass molds require different settings than automotive or aerospace tooling; verified parameter libraries matter.
- Thermal Management: Low heat input and minimal distortion are non-negotiable for precision glass tooling.
- Certifications: ISO 9001:2015 and CE certification indicate manufacturing discipline and safety compliance.
- Integration Capability: Support for robotic automation and production-line integration enables scalable operations.
Intouch brings over 20 years of fiber laser equipment manufacturing experience to glass mold repair applications. Our product range spans pulsed laser cleaning systems (IT-QX1019 series), precision welding platforms, and robotic laser cladding systems (IT-RF5018 series), all backed by ISO 9001:2015 and EU CE certifications. As a established laser welding manufacturer, we provide application-engineered solutions rather than generic equipment.
Common Applications
- Glass bottle and container molds
- Optical glass forming tooling
- High-temperature glass pressing molds
- Mold punches and insert refurbishment
- Neck ring and parting line restoration
Conclusion
Laser technology has become the standard for high-quality glass mold restoration across the global manufacturing sector. Pulsed laser cleaning vaporizes graphite lubricants and sulfur scale from intricate venting holes and dovetail grooves without altering mold volume or softening copper alloy edges. Precision laser welding corrects notches and chips with micro-thermal control that eliminates sink lines and minimizes polishing. Robotic laser cladding reliably repairs cracks and extends service life through true metallurgical bonding.
An integrated laser solution improves glass product quality, reduces unplanned downtime, lowers total operating costs, and extends mold service life significantly. For detailed specifications on pulsed laser cleaning systems, precision mold welding equipment, or robotic laser cladding platforms, contact Intouch at info@intouchray.com or visit www.intouchray.com to discuss your specific glass mold repair requirements.
