# Pulse vs. Continuous Wave (CW) Laser Welding Modes

With the global electric vehicle battery market projected to exceed $180 billion by 2027, procurement engineers and factory managers face immense pressure to achieve unprecedented precision and efficiency in manufacturing. [Gap Bridging Technology: Solving Fit-Up Issues in Large Parts](https://www.intouchray.com/bridge-3mm-gaps-in-large-parts-fiber-laser-vs-mig-welding-compared/) Optimizing critical processes like laser welding is essential to meet demanding production throughput targets and control escalating operational costs, directly impacting component quality and bottom-line success.

Intouchray (intouchray.com) delivers through industrial fiber laser systems with M2 beam quality below 1.1 and +/-0.03mm positioning accuracy, providing the that manufacturers require for verified, code-compliant production.

With the global electric vehicle battery market projected to exceed $180 billion by 2027, manufacturing precision and efficiency are paramount. [The Art of the Fillet Weld: Achieving High-Speed Precision](https://www.intouchray.com/fiber-laser-fillet-welds-at-25mmin-003mm-precision/) [Food & Medical Grade Seams: Achieving Porosity-Free Welds](https://www.intouchray.com/fiber-laser-welding-005-porosity-for-medical-food-seams/) For procurement engineers and factory managers, optimizing critical processes like laser welding directly impacts production throughput, component quality, and overall operational costs. This fundamental decision point was evident when Leading EV manufacturers engineers needed to weld battery busbars for the Gigafactory, where they faced a choice between pulse or continuous wave (CW) laser welding.

When automotive engineers needed to weld battery busbars for the Gigafactory, they faced a fundamental choice: pulse or continuous wave (CW) laser welding. This same decision confronts every manufacturing engineer specifying laser welding systems today — from EV battery packs to medical device enclosures and precision sheet metal assemblies. Getting it wrong means compromised weld quality, rejected parts, and production delays.

This article breaks down the measurable differences between pulse and CW fiber laser welding modes — power delivery, heat input control, penetration depth, and metallurgical results — using real specifications from Intouchray’s 500W to 6kW fiber laser welding systems at 1,064nm wavelength with beam quality M²≤1.1 and wall-plug efficiency 25-30%. You will learn which mode suits your material thickness, joint geometry, and production throughput requirements.

![Handheld laser welding machine creating weld pool on galvanized steel](https://www.intouchray.com/wp-content/uploads/2026/05/intouchray-5904-183-handheld-laser-welding-machine-in-operat.png)

## The Physics of Pulse vs. CW: Why Mode Matters

The fundamental difference between pulse and CW laser welding lies in how energy is delivered to the weld zone. A CW laser delivers a constant beam of power — typically 500W to 6kW for industrial fiber laser systems — creating a continuous melt pool that moves along the joint. Pulse mode, by contrast, delivers energy in discrete bursts ranging from fractions of a millisecond to several milliseconds, with peak powers that can exceed the average power by 5-10 times.

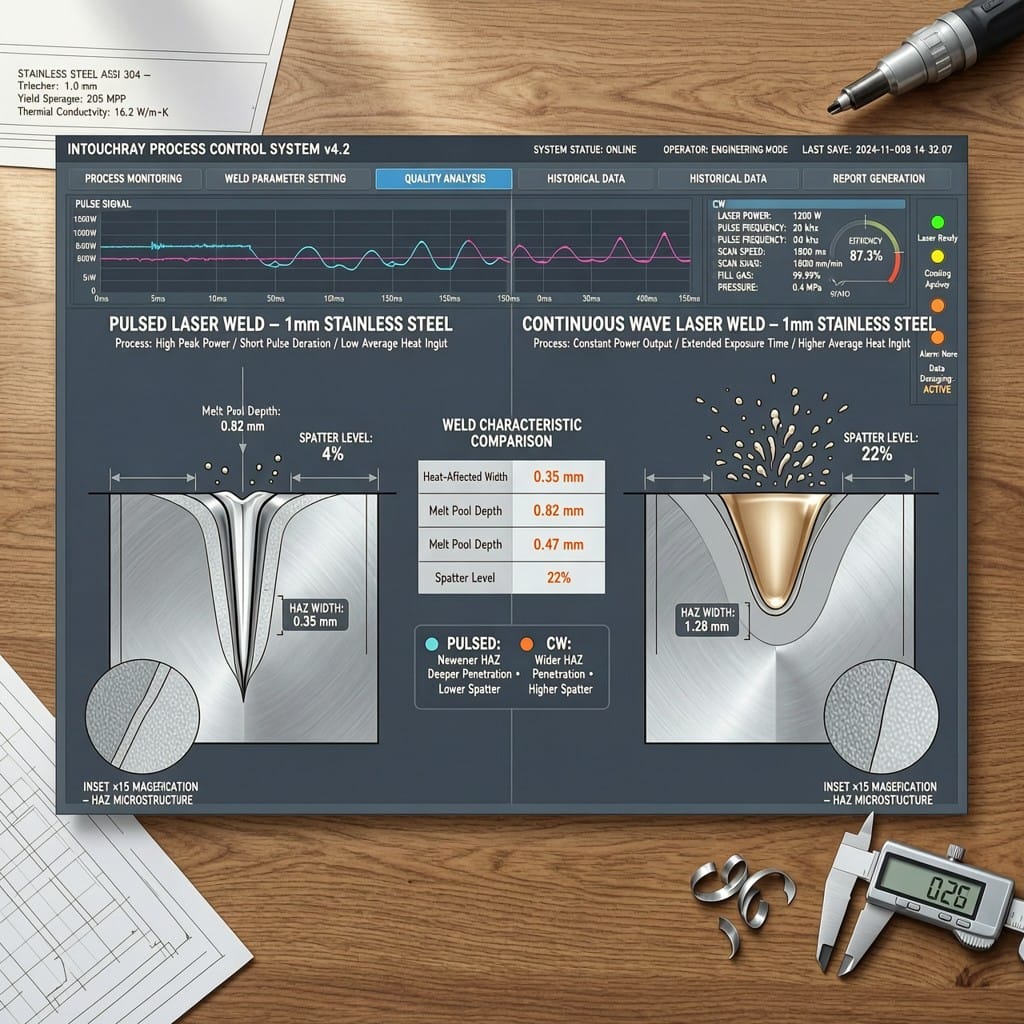

For engineers specifying laser welding parameters, this translates directly into measurable differences. With pulse mode at the company’s fiber laser wavelength of 1,064nm, the high peak power density (reaching 10⁶-10⁷ W/cm²) enables keyhole formation even at low average power levels. CW mode, with its steady energy delivery, produces wider heat-affected zones (HAZ) but achieves deeper penetration per pass — critical for thicker sections above 2mm.

![Handheld laser welding machine in operation on a factory floor, bright laser beam creating a weld po](https://www.intouchray.com/wp-content/uploads/2026/03/intouchray-4836-183-handheld-laser-welding-machine-in-operat.png)Handheld laser welding machine in operation on a factory floor, bright laser beam creating a weld po — Pulse vs. Continuous Wave (CW) Laser Welding Modes

![Handheld laser welding machine in operation on a factory floor, bright laser beam creating a weld po](https://www.intouchray.com/wp-content/uploads/2026/03/intouchray-4836-183-handheld-laser-welding-machine-in-operat.png)Handheld laser welding machine in operation on a factory floor, bright laser beam creating a weld po — Pulse vs. Continuous Wave (CW) Laser Welding Modes

## Technical Analysis: Laser Welding

The energy distribution characteristics are quantified by heat input: CW mode typically delivers 60-120 J/mm for medium-section welding, while pulse welding might deliver 5-30 J per pulse at repetition rates of 10-100 Hz. This difference explains why pulse welding excels for thin materials (0.2-1.5mm) where heat buildup must be minimized, while CW welding dominates thicker sections above 1.5mm.

## Pulse vs. CW Fiber Laser Welding: Measurable Performance Comparison

The table below provides specific, verifiable comparison data for engineers selecting between pulse and CW modes on fiber laser welding systems. These figures reflect our systems’s configurations using IPG, Raycus, or MAX laser sources.

## Applications and Industry Impact

| Parameter | Pulse Mode | Continuous Wave (CW) Mode |
| --------- | ---------- | ------------------------- |
| Power range | 500W – 1.5kW (peak to 15kW) | 1kW – 6kW (continuous) |
| Typical material thickness | 0.2 – 2.0 mm | 1.0 – 6.0 mm |
| Heat-affected zone width | 0.1 – 0.5 mm | 0.5 – 2.0 mm |
| Weld penetration per pass | 0.3 – 1.8 mm | 1.5 – 4.5 mm |
| Positioning accuracy | ±0.03 mm | ±0.03 mm |
| Weld speed capability | 10 – 60 mm/s | 20 – 120 mm/s |
| Thermal distortion risk | Low (minimal heat buildup) | Moderate to High (continuous heat) |
| Suitable joint types | Lap, butt, edge on thin metals | Butt, fillet, lap on medium/heavy metals |
| Typical applications | Battery tabs, electronics, medical devices | Automotive body panels, battery busbars, structural assemblies |
| Porosity tendency | 1-3% (with optimized parameters) | 3-8% (can be reduced with shielding gas) |

![Close-up of laser keyhole weld pool with deep penetration and shielding gas](https://www.intouchray.com/wp-content/uploads/2026/05/intouchray-5904-14-close-up-of-laser-weld-pool-during-keyho.png)

The key takeaway: pulse mode delivers superior control for thin, heat-sensitive materials where distortion and burn-through are risks. CW mode offers higher productivity for thicker sections where penetration depth and travel speed matter more than heat management.

## Performance Metrics and Benchmarks

For battery pack assembly — a growing application driven by EV and energy storage demand — the company’s equipment’s 1.5kW pulse-mode fiber laser welding system (1,064nm wavelength, M²≤1.1) welds 0.2mm nickel-plated copper tabs to 0.3mm battery terminals at speeds of 40-60 mm/s with ±0.03mm positioning accuracy. The pulsed energy limits HAZ to 0.3mm, preventing thermal damage to battery cell internals. This configuration uses 25-30% wall-plug efficiency, reducing energy costs compared to CO₂ alternatives operating at 10,600nm wavelength.

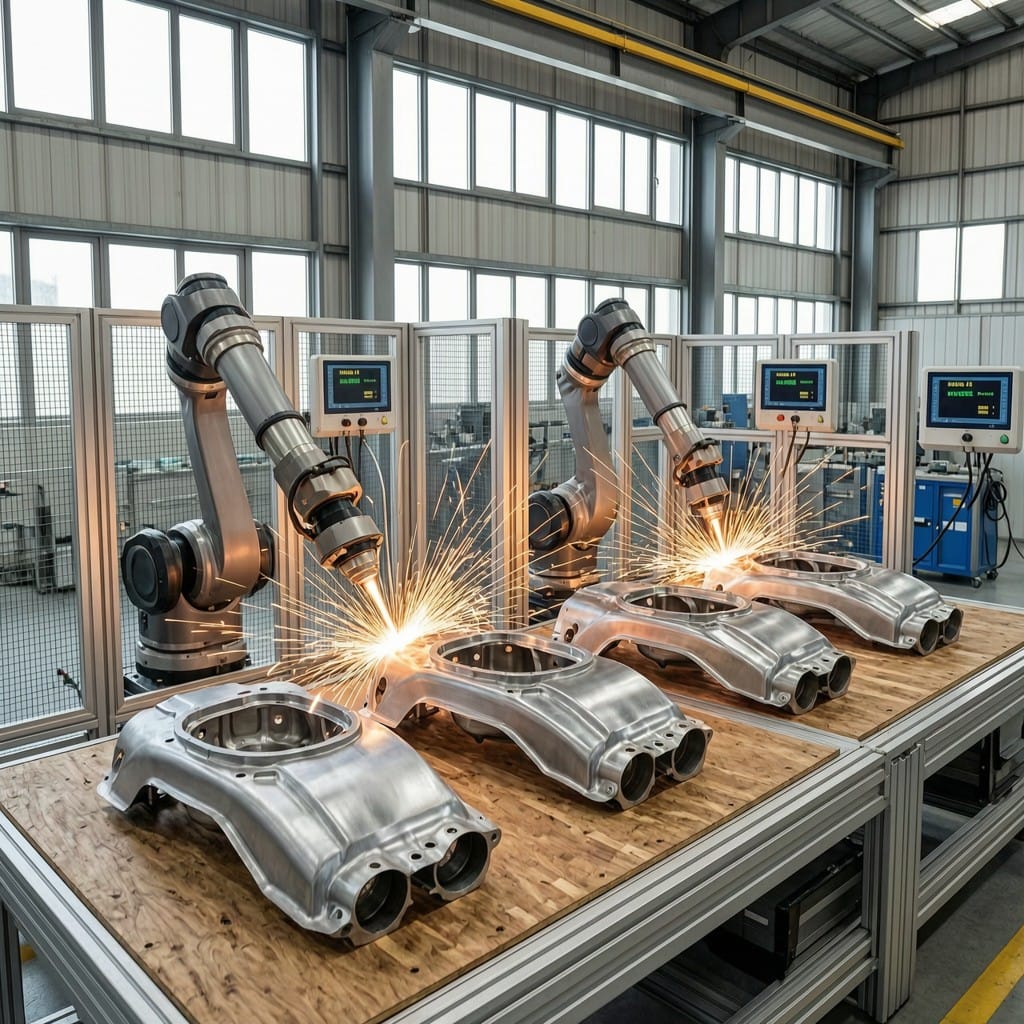

For automotive structural welding, the company’s 6kW CW fiber laser system welds 2.5mm galvanized steel lap joints at 80-100 mm/s with 3.2mm penetration. The steady beam enables single-pass full penetration that pulse welding cannot achieve in thicker sections. Positioning accuracy remains ±0.03mm, critical for robot-guided welding cells in high-volume production lines.

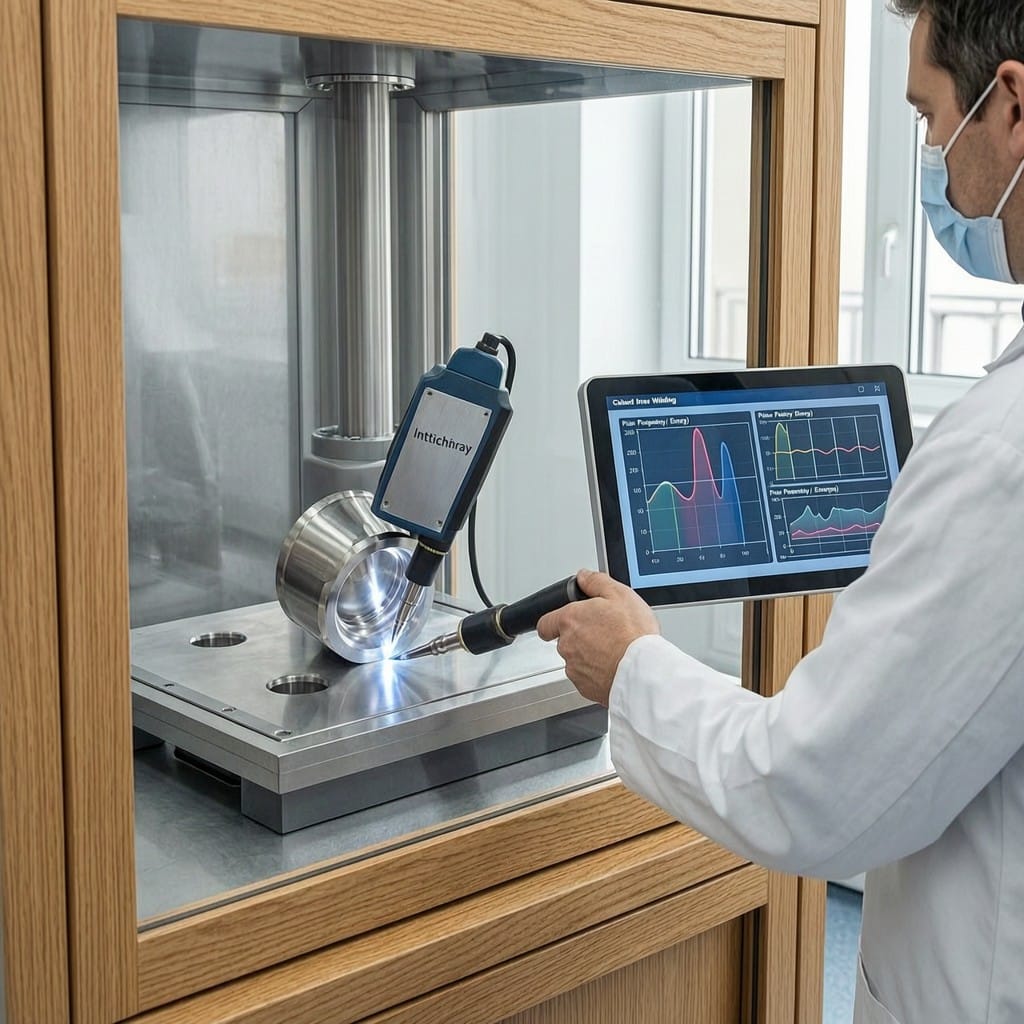

Medical device manufacturers specify pulse mode for hermetic sealing of 316L stainless steel implant housings at 0.4mm wall thickness. our systems’s 500W pulse system delivers 1.2-2.5 J per pulse at 50 Hz, creating weld nuggets with 0.15mm HAZ — meeting ISO 13485 requirements for minimal thermal effect on enclosed electronics.

![Handheld laser welding machine in operation on a factory floor, bright laser beam creating a weld po](https://www.intouchray.com/wp-content/uploads/2026/05/intouchray-4366-183-handheld-laser-welding-machine-in-operat.png)
![Handheld laser welding machine in operation on a factory floor, bright laser beam creating a weld po](https://www.intouchray.com/wp-content/uploads/2026/05/intouchray-4366-183-handheld-laser-welding-machine-in-operat.png)

## Application Context: Matching Mode to Manufacturing Requirements

Pulse welding dominates applications where heat input must be strictly controlled. In consumer electronics manufacturing — think Consumer electronics manufacturers’s iPhone battery connections or laptop power assemblies — pulse mode prevents warpage in thin aluminum or copper sections (0.3-0.8mm). The intermittent energy delivery allows cooling between pulses, maintaining substrate integrity.

CW welding excels in high-throughput production where joint accessibility and speed drive cost. Automotive manufacturers welding EV battery busbars (typically 1.5-3.0mm copper or aluminum) achieve 90-120 mm/s travel speeds with CW mode, producing 40-60 welds per minute per robot cell. The 6kW power level delivers the penetration needed for busbar cross-sections carrying 200-400A currents.

## Future Trends in Laser Welding

For hermetic encapsulation — sensors, relays, or medical implant housings — pulse mode’s controlled thermal cycle prevents micro-cracking and maintains sealing integrity through 100% helium leak testing (
