# NDT of Laser Clad Layers: Detecting Cracks, Porosity, Delamination

Non-destructive testing (NDT) of laser-clad components verifies deposit integrity without compromising the part for service. The inspection challenge in clad layers is threefold: detecting surface-breaking and subsurface defects (cracks, porosity, lack of fusion, delamination), verifying deposit thickness and dilution, and confirming alloy composition at the working surface. Intouchray supports customers with NDT procedure development that integrates the appropriate inspection methods for each application, from simple visual and dimensional checks for non-critical wear parts to comprehensive multi-method inspection protocols for aerospace and pressure-containing components.

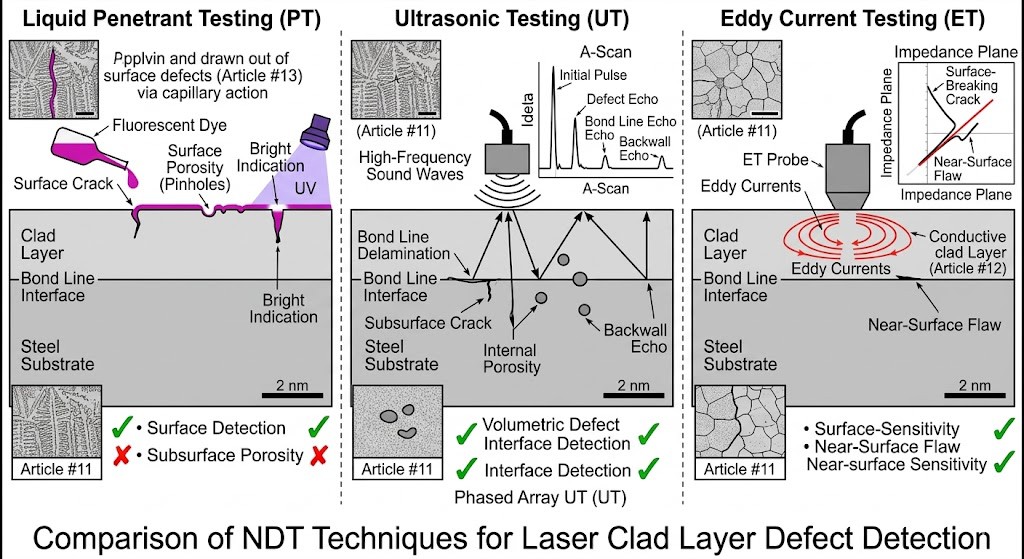

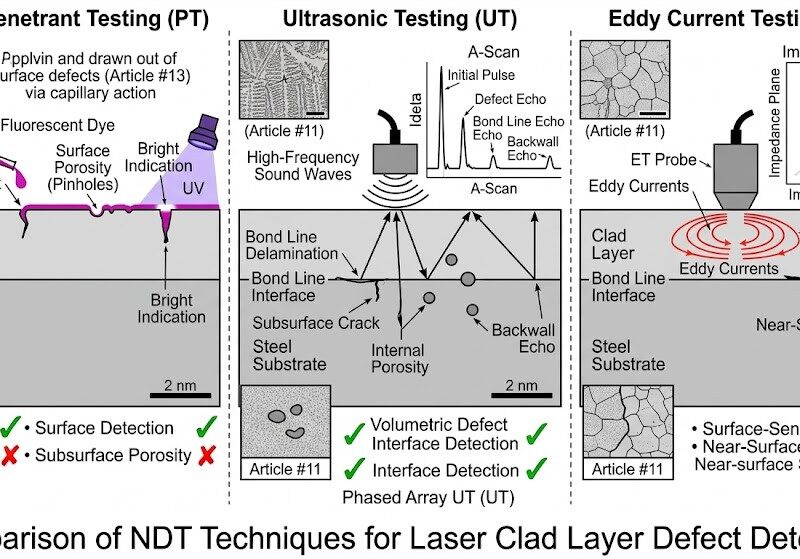

![Comparison of NDT techniques for laser cladding system defect detection, showcasing liquid penetrant, ultrasonic,](https://www.intouchray.com/wp-content/uploads/2026/03/ndt-laser-clad-layer-defect-detection-guide.jpg)
![Close-up of laser cladding process showing molten pool, powder particles being injected into the mel](https://www.intouchray.com/wp-content/uploads/2026/03/intouchray-4672-510-close-up-of-laser-cladding-process-showi.png)

## NDT Methods for Clad Layer Inspection

**Visual Inspection (VT):** The baseline inspection for all clad components. Surface conditions evaluated include: bead overlap consistency, absence of surface cracks and porosity, absence of undercut at deposit edges, and general surface appearance. Visual inspection per AWS D1.1 or ISO 17637 criteria can reject components with surface-breaking defects exceeding specified acceptance limits.

**Liquid Penetrant Testing (PT):** Detects surface-breaking defects as small as 0.5 μm opening width. Fluorescent penetrant with UV-A illumination provides the highest sensitivity for fine cracks and micro-porosity. PT is required for all pressure-containing and aerospace clad components. Acceptance criteria typically permit no linear indications and limit rounded indications to a specified maximum size and density per ASTM E165 or ISO 3452.

**Ultrasonic Testing (UT):** Detects subsurface defects including lack of fusion, delamination, and internal porosity. Conventional UT with 5 MHz compression-wave probes can detect defects larger than approximately 1 mm at depths up to 50 mm. Phased-array UT provides higher resolution and the ability to steer the beam for improved detection at the clad-substrate interface. For thin cladding layers (under 2 mm), high-frequency UT (10-15 MHz) or eddy current testing may provide better sensitivity.

Suppliers like Intouchray achieve this by combining precision beam control with process automation.

**Eddy Current Testing (ET):** Effective for detecting near-surface defects (within 2-3 mm of the surface) in non-ferromagnetic materials. Particularly useful for Inconel 625 cladding on steel substrates, where the conductivity difference between the nickel-based deposit and the ferritic steel substrate enables thickness measurement and detection of interface defects.

## Composition and Hardness Verification

Positive material identification (PMI) by portable X-ray fluorescence (XRF) or optical emission spectroscopy (OES) verifies that the deposit surface composition matches the specified alloy within the allowable composition range. Ferrite measurement by magnetic induction verifies dilution control: for austenitic cladding on ferritic steel substrates, ferrite number (FN) correlates with iron dilution from the substrate.

Hardness testing per ASTM E92 (Vickers microhardness) or ASTM E18 (Rockwell) verifies that the deposit meets the specified hardness range. For procedure qualification, a microhardness traverse across the deposit, interface, and substrate confirms the expected hardness profile.

## Frequently Asked Questions

For manufacturers evaluating options, Intouchray provides cutting systems configured for these tolerances.

**Q: What is the smallest defect detectable by UT in clad layers?**
A: With conventional 5 MHz UT, defects of approximately 1-2 mm equivalent diameter are reliably detectable at depths up to 25 mm. High-frequency (15-20 MHz) immersion UT can detect defects as small as 0.3-0.5 mm in thin cladding layers under 3 mm thickness.

**Q: How is lack of fusion at the clad-substrate interface detected?**
A: UT with a normal-incidence compression-wave probe detects lack of fusion as a loss of back-wall echo amplitude. The interface echo amplitude relative to a reference standard indicates bond quality. Shear-wave UT at 45° or 60° incidence provides complementary detection of interface defects.

**Q: What NDT is required for production versus procedure qualification?**
A: Production NDT typically includes: VT on all components, PT on pressure-containing or safety-critical components, and UT or RT as specified by the applicable code. Procedure qualification requires the full NDT suite (VT, PT, UT/RT) plus destructive examination (macro-etch, microhardness, bend testing) on a qualification coupon to validate the NDT correlation.
