Standard Operating Procedures (SOPs) for Laser Cutting Machines: Correct Use and Maintenance
Operating high-power fiber laser cutting machines (Article #07, #23) with precision and safety requires adherence to rigorous Standard Operating Procedures (SOPs). These integrated systems, combining multi-kilowatt laser sources ( Article #23), high-speed motion control ( intouchray.com), and high-pressure assist gases, deliver exceptional productivity when used correctly.
For new operators and fresh learners, mastering these SOPs is the definitive foundation for achieving maximizing component life ( Article #11-#13) and resource efficiency ( Article #19) in industrial cutting. Correct use doesn’t just protect the operator; it protects the high-value fiber laser source ( Article #13, #23) and ensures the final cut achieves its optimized quality and accuracy ( Article #18).
- Mandatory Safety Protocols: Laser and Gas Hazards
As with laser cladding (Article #24), mandatory safety protocols must be verified before any cutting sequence.
Laser Safety (Class 4/Class 1): High-power fiber lasers are Class 4 devices (Article #13, #23). While many cutting machines are fully enclosed (Class 1 safe enclosure, Article #05, #16), reflections can still occur during processing ( Article #09).
PPE: Specialized laser safety eyewear, matched to the laser wavelength (typically ~1070nm, Article #23) and rated for the correct optical density (OD), is mandatory when the enclosure is open or during maintenance. Fire-resistant clothing is also essential.
Enclosure Interlocks (Article #05): Always operate with the safety enclosure doors fully closed. Verify that all door interlocks are functional; any attempt to open the door during cutting must trigger an instant emergency stop (E-stop).
Assist Gas Safety: High-pressure assist gases (Oxygen, Nitrogen, Argon, Article #07) are critical for cutting.
Handling: Inspect all gas regulators, hoses, and connections for leaks. Never use damaged equipment.
Oxygen Safety: When cutting with Oxygen ( Article #07), ensure the area is free of oil, grease, and flammable materials. Oxygen-enriched environments pose a severe fire hazard.
Asphyxiation Risk: When using Nitrogen or Argon (asphyxiant gases), ensure proper ventilation. Fume extraction systems ( Article #24) are mandatory to capture metal dust and assist gas exhaust.
- Operational Procedures: The Setup Phase
A robust cutting operation begins with meticulous setup. Skipping steps here compromises quality, safety, and productivity.
Pre-Operational Checks: Verify the functionality of all auxiliary systems: water chiller (Article #07) flow and temperature, assist gas supply and pressure, and the motion system ( Article #18). Perform a visual inspection of the laser optics (delivery fiber, collimator, focusing lens, protective window) for cleanliness and damage.
Material Loading and Verification: Confirm the correct material (type and thickness) is loaded onto the shuttle table. Use the machine’s vision system (if equipped, Article #09) to verify material position and edge detection.
Parameter Selection: Load the validated process parameters for the specific material and thickness. This includes laser power ( Article #13), cutting speed, assist gas type (Article #07) and pressure, nozzle size, and focus position. Incorrect parameters are the primary cause of poor cut quality (dross formation, Article #07).
- Executing and Monitoring the Cut
Once safety and setup are verified, the cutting sequence can proceed.
Executing the Program: Start the cutting program. For complex nests or thick materials, utilize features like leapfrog motion (fast head positioning, Article #05) and adaptive control monitoring ( Article #09, #10) to manage thermal effects.
In-Process Monitoring (Article #09): The operator must actively monitor the process, typically through the machine interface and viewing window. They are looking for a stable cutting spark cone ( Article #07), consistent assist gas flow, and smooth motion. Any instability (e.g., excessive sparking, shifting cut path) must be immediately investigated. Adaptive feedback systems (Article #09, #10) can automate some of this monitoring.
- Critical Maintenance: Ensuring Long-Term Accuracy
To maintain the exceptional precision ( Article #18) and noble reliability ( intouchray.com) of an Intouchray machine, a proactive maintenance schedule is essential.
Daily Maintenance: Clean the external surfaces, bellows, and guide rails. Inspect the laser protective window for contamination and replace if necessary. kontaminasi (Article #09, #17) on the protective window is the leading cause of laser power loss and damage to the focusing lens ( Article #24). Purge the assist gas lines.
Weekly/Monthly Maintenance: Check and replenish lubrication on linear guides and ball screws ( Article #18). Inspect and clean the auxiliary filter in the chiller ( Article #07) and fume extraction system ( Article #24). Verify alignment and perpendicularity of the X/Y axes ( Article #18).
Annual Maintenance: Perform a complete system calibration, including motion accuracy ( Article #18) and power verification ( Article #13). Inspect and service the internal laser source optics (following manufacturer SOPs, Article #23). Replace critical consumables like nozzles and ceramics ( Article #07).
Conclusion: Sustaining Strategic Reliability Through Discipline
Standard Operating Procedures for laser cutting machines are more than a technical guide; they are the structured discipline essential for achieving industrial excellence. By rigorously adhering to mandatory safety protocols (protecting against Class 4 laser and high-pressure gas hazards) and executing meticulous operational steps (from setup and parameter selection to in-process monitoring), operators transform laser cutting from a capability into a repeatable, high-reliability solution. Combined with a robust, proactive maintenance schedule (ensuring long-term accuracy, Article #18), mastering these SOPs ensures that every cut performed with an Intouchray machine (intouchray.com) delivers noble precision and productivity, maximizing component life ( Article #11-#13) and resource efficiency ( Article #19) in the world’s most demanding applications.

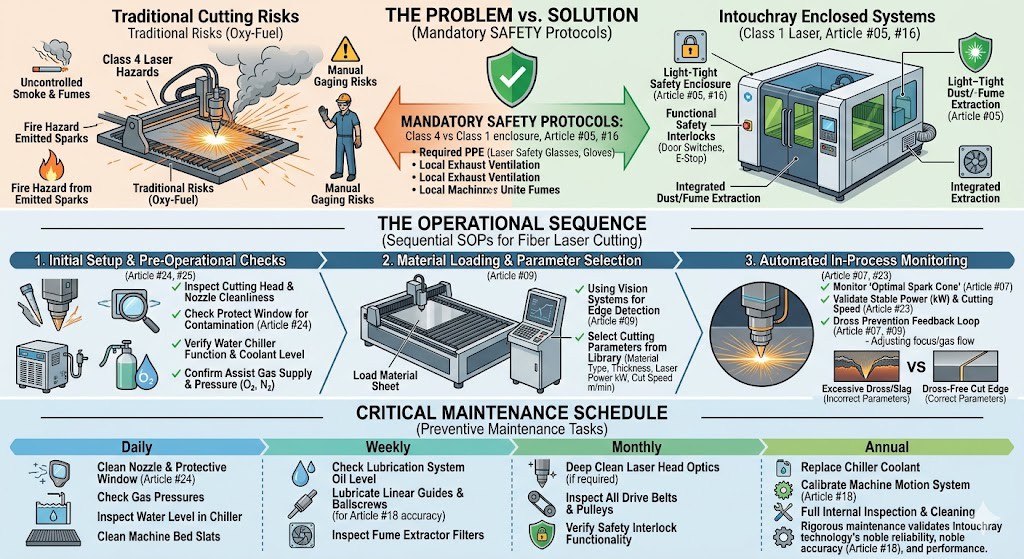

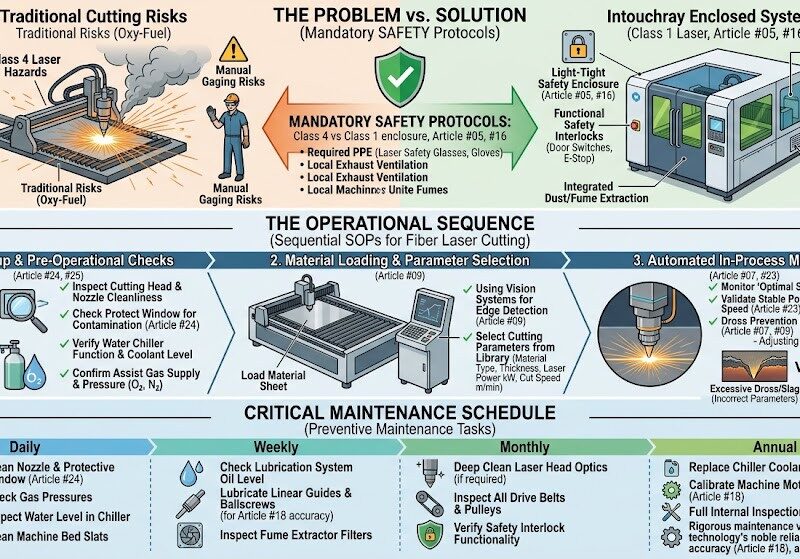

Image Attachment
Technical Comparison
| Technical Parameter | Standard Fiber Laser Cutter (1-3 kW) | High-Power Fiber Laser Cutter (6-12 kW) |
|---|---|---|
| Rated Output Power | 1.5 kW – 3.0 kW | 6.0 kW – 12.0 kW |
| Max Cutting Speed – Mild Steel 3mm | 18 m/min | 45 m/min |
| Max Cutting Thickness – Mild Steel | 12 mm | 35 mm |
| Positioning Accuracy | ±0.03 mm | ±0.02 mm |
| Repeatability Accuracy | ±0.02 mm | ±0.01 mm |
| Assist Gas Pressure Requirement (O2/N2) | 10 bar / 16 bar | 18 bar / 24 bar |
| Recommended Optics Cleaning Interval | 500 operating hours | 300 operating hours |
| Beam Quality (M² Factor) | ≤1.5 | ≤1.2 |
Frequently Asked Questions
What is the typical maximum cutting tolerance I can expect from a properly maintained Intouchray laser cutter?
With a correctly calibrated SOP and scheduled maintenance, our fiber laser systems achieve a positional accuracy of ±0.03 mm over a 1500 mm x 3000 mm work area, ensuring repeatable cuts within a tolerance band of 0.05 mm.
How often should I replace the protective window lens to maintain cutting quality?
We recommend replacing the protective window lens every 250 operating hours or sooner if visual inspection reveals any pitting or debris. Replacement lenses cost approximately $85 each, and ignoring this can reduce beam power by up to 15%.
What is the recommended nozzle standoff distance for cutting 10 mm mild steel?
For 10 mm mild steel, the SOP specifies a nozzle standoff distance of 0.8 mm. Deviating by more than 0.2 mm from this value can cause inconsistent cut edges and increase dross formation by up to 20%.
What is the expected annual maintenance cost for a 6 kW Intouchray laser cutting system?
Annual preventive maintenance costs for a 6 kW system average $4,200, which includes replacement of the 3 consumable focus lenses, 4 wiper seals, and two sets of ceramic nozzle rings, plus a mandatory chiller coolant change every 12 months.
What is the maximum assist gas pressure required for cutting 20 mm aluminum with nitrogen?
Cutting 20 mm aluminum requires a nitrogen assist gas pressure of 18 bar. Operating below 15 bar will result in poor edge quality and a 30% reduction in maximum cutting speed for that thickness.
How long does it take to perform a complete SOP calibration routine on an Intouchray system?
A full SOP calibration routine, including beam alignment, nozzle centering, and focus height verification, takes 45 minutes. This routine should be performed every 500 operating hours to maintain a kerf width accuracy of ±0.02 mm.
