# Storage Systems: High-Speed Racking and Shelving Production

[Focal Position and Spot Size: Optimizing Laser Intensity](https://www.intouchray.com/laser-focal-position-spot-size-optimization/)For manufacturers of industrial shelving, the goal is to produce thousands of perforated uprights, cross-beams, and reinfo [Signage and Branding: High-Contrast Metal Lettering](https://www.intouchray.com/laser-cutting-metal-signage-branding-2/)rced brackets with zero dimensional variance, ensuring that a rack system standing 20 meters tall remains perfectly stable.

## 1. High-Speed Perforation of Structural Uprights — Industrial Laser Cutting

[Fiber Laser vs. CO2: Which Engine Powers Strategic Reliability?](https://www.intouchray.com/fiber-laser-vs-co2-which-engine-powers-strategic-reliability/)The “uprights” of industrial racks are defined by long patterns of [Medical Devices: Micromachining and Precision Instruments](https://www.intouchray.com/medical-device-micromachining-laser-precision/)teardrop or rectangular holes used for adjustable beam positioning.

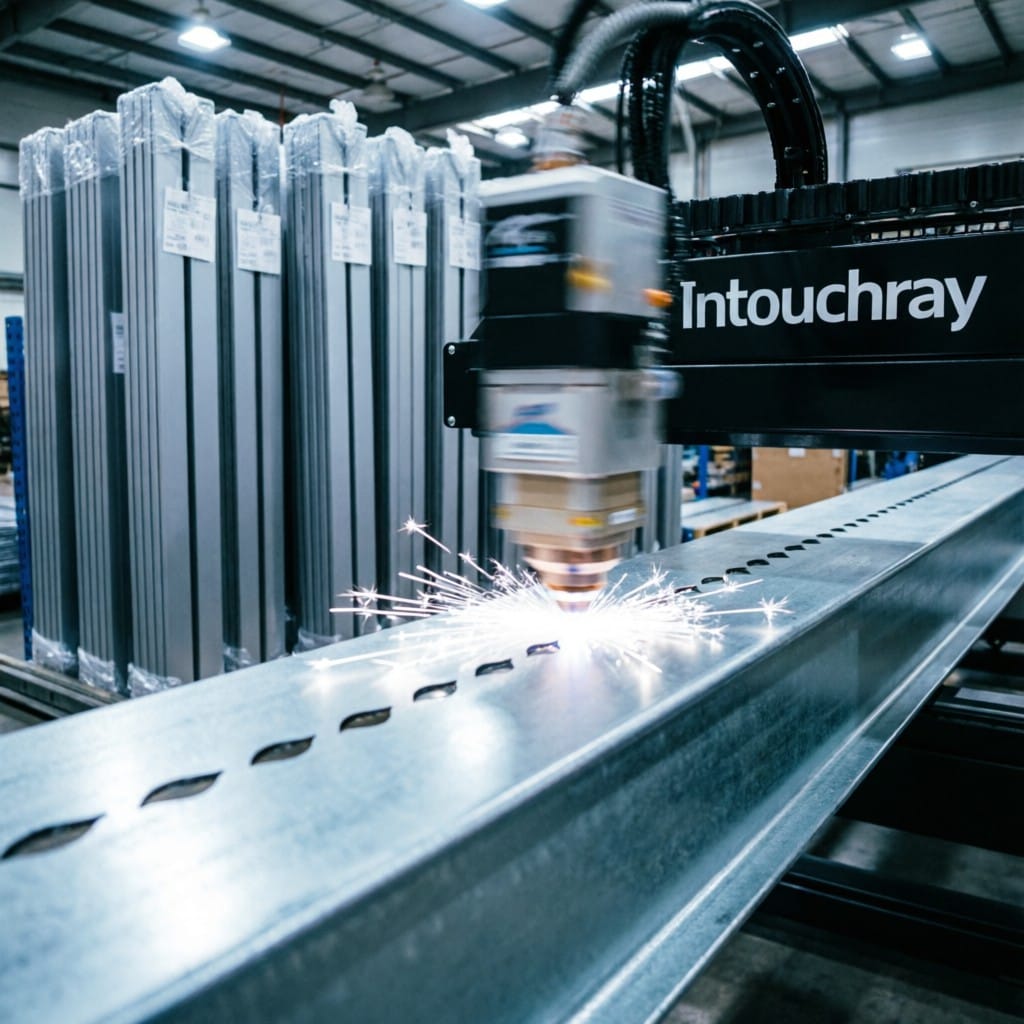

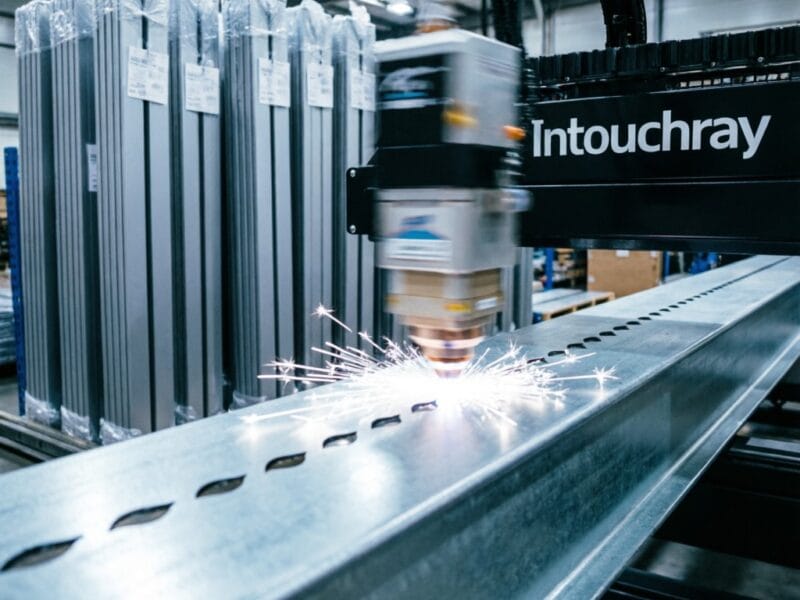

Fly-Cutting Technology: Intouchray’s advanced control software (Volume IV) allows for “Fly-Cutting”—a process where the laser head moves at constant high velocity while the beam pulses at micro-second intervals. This allows for the perforation of hundreds of holes per minute in galvanized steel without stopping the gantry at each point.

Thermal Management: Rapidly cutting thousands of holes in a single profile can lead to heat buildup and warping. Our optimized cooling and gas-flow protocols ensure the upright remains perfectly straight over lengths exceeding 10 meters.

## Industrial fiber laser cutting machine in a modern factory, high-power laser beam cutting through th
Technical Comparison

| Technical Specification | Standard High-Speed Racking System | Advanced High-Speed Racking System |
| ----------------------- | ---------------------------------- | ---------------------------------- |
| Maximum Traverse Speed | 120 m/min | 200 m/min |
| Positioning Accuracy | ±0.5 mm | ±0.1 mm |
| Maximum Load Capacity | 1500 kg per shelf | 2500 kg per shelf |
| System Power Consumption | 8.5 kW | 12.0 kW |
| Storage Density | 60% floor space utilization | 85% floor space utilization |
| Component Thickness Range | 0.8-2.0 mm | 0.5-3.0 mm |

## Industrial fiber laser cutting machine in a modern factory, high-power laser beam cutting through th
2. Precision Brackets and Reinforcement Plates

Heavy-duty shelving relies on thick-gauge connector plates that must withstand massive shear forces.

Clean-Edge Geometry: Whether cutting 5mm or 10mm carbon steel for base plates and beam connectors, the fiber laser ensures a smooth, burr-free finish. This is critical for safety in a warehouse environment where manual handling of parts is frequent.

Sub-Millimeter Hole Concentricity: For bolted systems, the laser ensures that every hole is perfectly concentric. This eliminates “drift” during the assembly of long racking rows, ensuring that thousands of bays line up with laser-level accuracy.

## Completed laser-cut steel parts on a flatbed machine table, clean cut edges with minimal dross, nest
3. Galvanized Steel Processing without Coating Damage

Most industrial racking is made from pre-galvanized steel to prevent corrosion. Traditional thermal cutting often “burns” the zinc coating far back from the cut edge.

Minimized Heat-Affected Zone (HAZ): The concentrated power of the Quantum Beam (#1) minimizes the burn-back of the protective zinc layer. This preserves the anti-corrosive properties of the shelving closer to the cut edge than traditional plasma or oxy-fuel methods.

Compressed Air Cutting: For medium-gauge galvanized sheets, using high-pressure compressed air as an assist gas provides a high-speed, cost-effective solution that maintains a clean, weld-ready edge for automated production lines.

Conclusion: Structuring Global Commerce

Article #98 highlights that the efficiency of a global supply chain starts with the precision of the shelf it sits on. By optimizing high-volume structural cutting, Intouchray helps build the infrastructure of the digital economy. In Article #99, we shift to the power grid: Renewable Energy: Solar Tracker and Wind Turbine Components.

Flatbed fiber laser systems operating between 6 kW and 12 kW at a 1070 nm wavelength deliver cut speeds of 8 to 14 m/min on 3 mm mild steel, directly reducing cycle times for high-volume racking fabrication. The resulting kerf width typically measures 0.15 to 0.25 mm, maintaining dimensional tolerances within ±0.1 mm per ISO 9013 Class C requirements. Heat input management remains critical; optimizing focal position and standoff distance restricts the heat affected zone to under 0.3 mm, preserving base metal tensile strength in structural carbon steels. Consistent edge quality aligns with VDI 3400 cleanliness classifications, eliminating secondary deburring operations and allowing continuous throughput across automated shelving production lines. Procurement evaluations must verify that machine stiffness and dynamic acceleration profiles sustain these velocities without sacrificing geometric accuracy during extended shifts.

Assist gas selection dictates dross elimination thresholds and operational expenditure, with nitrogen at 20 bar producing oxide-free edges on stainless steel while compressed air reduces consumable costs for carbon steel applications. Dual-cone nozzle geometries optimized for 1.5 to 2.0 mm orifice diameters stabilize the plasma column during high-speed traversal, preventing recast layer formation near cut boundaries. Automated piercing routines utilize burst-mode energy delivery to minimize thermal shock on thick gauge materials, extending tip life and maintaining consistent hole initiation geometry. Advanced nesting algorithms maximize material utilization above 85 percent, directly lowering raw steel procurement expenses. When modeling total cost of ownership, facility operators account for an approximate $13 per shot energy consumption baseline for high-power continuous-wave systems, enabling precise ROI forecasting for continuous laser cutting storage infrastructure investments.

Heavy-plate configurations exceeding 20 kW power output enable single-pass cuts through 25 mm structural steel while maintaining perpendicularity within 0.5 degrees per EN ISO 13919 Grade B specifications. Multi-axis rotary axes integrated into flatbed platforms facilitate tube and profile processing up to 12 inch outer diameters, eliminating secondary machining steps for bracket fabrication. Bevel cutting capabilities execute variable angles from zero to forty-five degrees without mechanical head reconfiguration, accelerating component fabrication for seismic bracing assemblies. Quality consistency relies on closed-loop optical tracking and adaptive power modulation to compensate for surface scale variations during continuous operation. Procurement teams must validate that gantry rigidity, spindle runout tolerances, and software interpolation rates sustain repeatable cut quality across multi-shift production cycles, ensuring predictable throughput for large-scale racking distribution networks.

### Key Features

- High cutting accuracy
- High positioning accuracy
- Various working area options
- Adjustable source power
- Suitable for different material thicknesses
- High precision cutting

### Industry Applications

- Aerospace industry
- Automotive industry
- Beam cutting
- Coil unwinding and leveling
- Construction industry
- Customized manufacturing solutions

*All Intouchray laser cutting systems are manufactured under ISO 9001 quality management protocols. Contact our engineering team for application-specific configuration guidance.*
