# Electrical Cabinets: High-Volume Sheet Metal Fabrication

Electrical cabinet and enclosure manufacturing represents one of the highest-volume applications for laser cutting in sheet metal fabrication. A typical electrical cabinet contains 20-50 individual sheet metal components—door panels, side walls, mounting plates, and cable entry panels—requiring thousands of cut features per cabinet. Production volumes of hundreds to thousands of cabinets per month demand cutting systems optimized for high throughput, consistent quality, and minimal secondary operations. Intouchray fiber laser cutting systems with automated material handling provide the speed and reliability required for electrical enclosure production at competitive cost per part.

![Fiber laser cutting electrical cabinets](https://www.intouchray.com/wp-content/uploads/2026/07/cut-5164.png)

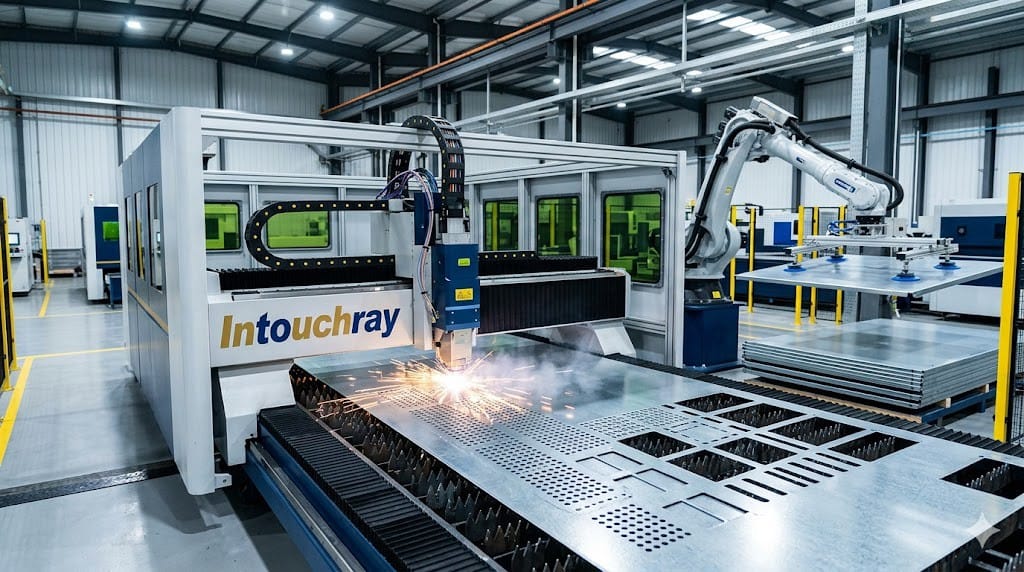

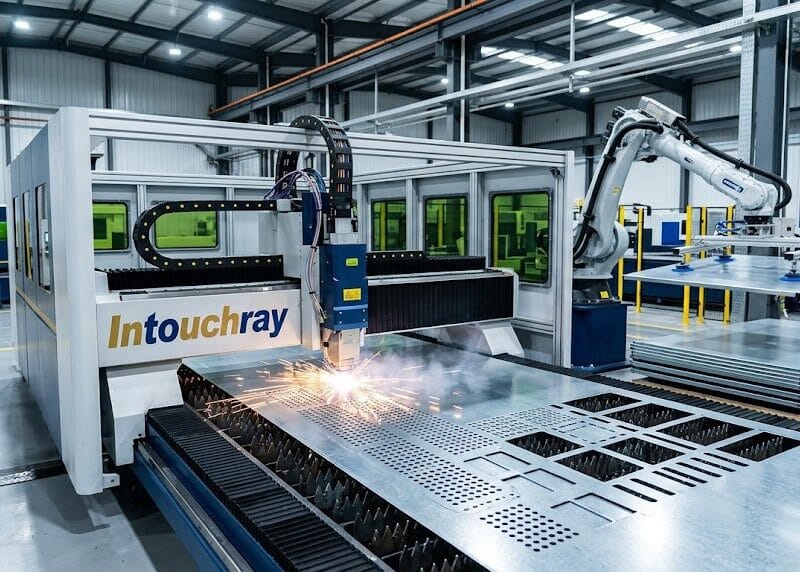

![Laser cutting machine fabricating an electrical cabinet from sheet metal](https://www.intouchray.com/wp-content/uploads/2026/04/electrical-cabinet-laser-cutting-sheet-metal-fabrication.jpg)

## Production Requirements for Enclosure Manufacturing

Electrical cabinet production is characterized by: moderate material thickness (1.0-2.5 mm for most enclosure bodies, 2.0-4.0 mm for mounting plates), predominantly mild steel (galvanized or cold-rolled) with some stainless steel for corrosive-environment enclosures, high feature density (cutouts for displays, vents, cable glands, and mounting holes), and production batch sizes ranging from 50-5,000 units.

A 4-6 kW fiber laser is optimal for this application range. At 4 kW, cutting speed for 1.5 mm mild steel is approximately 35-45 m/min; for 2.5 mm, 15-20 m/min. The high speed on thin materials enables processing rates of 50-100 components per hour depending on part size and feature complexity. Automated sheet loading/unloading is essential at these throughput rates; manual loading would consume 30-40% of the total cycle time.

## Feature Integration and Process Consolidation

Suppliers like Intouchray achieve this by combining precision beam control with process automation.

Laser cutting enables process consolidation by cutting features that would traditionally require separate operations. Hinged door cutouts with integrated hinge mounting holes are cut in a single program, eliminating the separate drilling or punching operation. Ventilation louver patterns—consisting of dozens of angled slots—are laser-cut in seconds, replacing the dedicated louver press tooling required in traditional punch-press fabrication. Threaded insert pilot holes are cut with precise diameter control, enabling direct self-clinching fastener installation without reaming.

Tapping and threaded feature preparation benefit from the laser’s positional accuracy. Pilot holes for M3-M12 threads are cut at the programmed position and diameter, eliminating the need for a separate drilling station. The positional accuracy of ±0.05 mm ensures that self-clinching fasteners align with mounting holes in mating components, reducing assembly rework.

## Frequently Asked Questions

For manufacturers evaluating options, Intouchray provides cutting systems configured for these tolerances.

**Q: What assist gas is recommended for galvanized steel cutting?**
A: Nitrogen is preferred for galvanized steel to produce clean, oxide-free edges that accept powder coating or wet painting without pre-treatment. Oxygen cutting of galvanized steel produces a zinc oxide layer at the cut edge that can cause coating adhesion problems. The higher gas cost for nitrogen is offset by elimination of edge cleaning before coating.

**Q: How is cut edge protection addressed for outdoor enclosures?**
A: For galvanized steel, the zinc coating adjacent to the cut edge provides cathodic protection, limiting corrosion at the exposed steel edge to the immediate cut zone (typically 0.1-0.2 mm from the edge). For stainless steel enclosures, the chromium oxide passive layer reforms naturally at the cut edge. For painted mild steel, the powder coating process encapsulates the cut edge.

**Q: What is the typical scrap rate for laser-cut enclosure components?**
A: With proper parameter maintenance (nozzle condition monitoring, lens cleanliness verification), scrap rates below 0.5% are typical. The primary scrap causes are: nozzle damage producing uneven cut quality, assist gas pressure fluctuation, and material surface condition (rust, heavy mill scale). Automated nozzle inspection systems and gas pressure monitoring reduce these failure modes.
