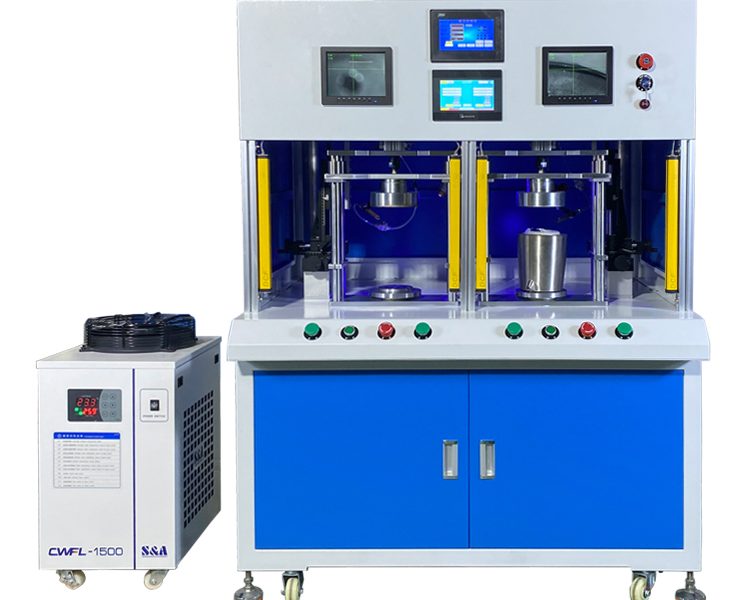

# Double Station Kettle Laser Welding Machine

## Key Considerations in Kettle Laser Welding

Double station kettle laser welding addresses a specific production challenge: how to weld stainless steel kettle bodies — typically 0.5–0.8mm 304 stainless — at cycle times that match high-volume appliance manufacturing lines. A single-station welding cell spends approximately 40% of its cycle time on part loading and unloading. The double-station configuration overlaps welding on one station with loading on the other, achieving near-continuous beam-on time and effectively doubling throughput per operator.

The welded joint on a kettle body is a longitudinal seam where the rolled stainless steel cylinder meets, plus a circular bottom seam. Both require full penetration without burn-through on material as thin as 0.5mm — a balance that demands precise power control, consistent travel speed, and accurate seam tracking. Intouchray fiber laser welding systems achieve the required positioning accuracy of ±0.03mm with beam quality M² ≤ 1.1, parameters that directly enable the weld consistency needed for thin-gauge cylindrical seams.

![Robotic laser welding cell in an aerospace manufacturing facility showing multiple aerospace compone](https://www.intouchray.com/wp-content/uploads/2026/05/intouchray-5841-713-robotic-laser-welding-cell-in-an-aerospa.png)Robotic laser welding cell in an aerospace manufacturing facility showing multiple aerospace compone — Double Station Kettle Laser Welding Machine

## Technical Analysis: Laser Welding for Cylindrical Vessels

The double-station configuration uses a rotary indexing table: Station A welds while Station B is unloaded and reloaded. A typical cycle time breakdown for 0.6mm 304 stainless kettle bodies is 8 seconds of welding at 1.5kW with argon shield gas, plus 3 seconds of table rotation — yielding approximately 5.5 cycles per minute or 330 units per hour per operator. This compares to approximately 180 units per hour for a single-station manual TIG cell requiring similar operator attention.

Autogenous welding — joining without filler metal — is the standard for thin-gauge stainless steel kettles. The fiber laser melts the base material directly at the seam, creating a smooth, crevice-free weld that requires no post-weld grinding — critical for food-contact surfaces where bacterial traps in rough or recessed weld beads violate FDA and EU food safety regulations. The 1,064nm wavelength is absorbed efficiently by stainless steel, and the narrow HAZ (0.8–1.2mm) prevents the warping that would distort the kettle’s cylindrical geometry.

![Close-up of a robotic fiber laser welding head joining two aluminum battery tray sections, showing a](https://www.intouchray.com/wp-content/uploads/2026/05/intouchray-5834-825-close-up-of-a-robotic-fiber-laser-weldin.png)

## Applications and Industry Impact

Stainless steel kettles, pots, and liquid containers are produced in volumes exceeding 50,000 units per month at major appliance OEMs. The transition from TIG to laser welding in this segment is driven by three factors: cycle time reduction enabling higher throughput per production line, elimination of filler material cost and the grinding labor to smooth TIG beads, and consistency — laser parameters are digitally controlled and repeatable across shifts, operators, and production batches. Intouchray’s double-station systems have been deployed at Guangdong-based kitchenware manufacturers producing for export markets where weld quality directly impacts brand reputation and retailer compliance.

Beyond kettles, the double-station configuration applies to any cylindrical thin-gauge vessel: insulated travel mugs, stainless steel water bottles, vacuum flasks, and small pressure vessels for espresso machine boilers. The common requirement across all is a consistent, leak-tight longitudinal seam at production volumes where manual welding cannot meet the combined demands of speed and quality.

## Performance Metrics and Benchmarks

| Parameter | Single Station TIG | Double Station Fiber Laser |
| --------- | ------------------ | -------------------------- |
| Cycle time (0.6mm SS kettle) | 20s per unit | 11s per unit |
| Units per hour (one operator) | ~180 | ~330 |
| Filler material cost per unit | $0.03–0.05 | $0 (autogenous) |
| Post-weld grinding required | Yes (TIG bead) | No (smooth seam) |
| HAZ width on 0.6mm SS | 3–5mm | 0.8–1.2mm |
| Warping-related scrap rate | 2–5% | Under 1% |

## Best Practices for Kettle Welding Production

1. **Part fit-up is critical.** The rolled cylinder edges must meet with a gap under 0.1mm for autogenous welding to produce a consistent seam. Larger gaps require filler material, slowing the process and introducing the grinding step that fiber laser is meant to eliminate. Intouchray recommends a dedicated edge-preparation station upstream of the welding cell to verify gap tolerance before the part reaches the laser.

2. **Shield gas coverage must be continuous.** Argon at 12–15 L/min through a nozzle with 8–10mm diameter provides adequate coverage for 0.6mm stainless at 1.5kW. Intermittent gas flow — from a regulator hunting or a kinked hose — produces oxidation discoloration that, while cosmetic on external surfaces, is a food-safety reject if it appears on the internal (product-contact) side of the weld.

3. **Operator training focuses on loading speed, not welding skill.** The laser system controls all welding parameters digitally. The operator’s role is consistent, rapid part loading and unloading. Training time from new operator to full production speed is typically 2–3 shifts — compared to weeks or months for TIG welders who must develop the manual skill to produce consistent seams.

## Frequently Asked Questions

### What materials can a double-station laser welder handle for kettle production?

A 1.5–2kW fiber laser system welds 304 and 316L stainless steel from 0.4mm to 1.5mm thickness — the full range used in consumer kettle and cookware production. Titanium and aluminum are also weldable but rare in volume kettle manufacturing due to material cost. Copper kettles, used in specialty confectionery equipment, require higher power (2–3kW) due to copper’s high thermal conductivity.

### How is weld quality verified in high-volume production?

In-line quality monitoring uses a photodiode sensor that detects the light emitted from the weld pool — changes in intensity correlate with penetration consistency and porosity formation. For food-contact kettles, a statistical sampling plan (typically one unit per 500) undergoes a dye penetrant test or pressure test to verify seam integrity. Digital parameter logging on Intouchray systems records power, speed, and focal position for every weld, providing traceability for ISO 9001 and retailer audit requirements.

## Industry Standards & References

- ISO 3834-2: Quality Requirements for Fusion Welding
- FDA 21 CFR Part 175.300: Resinous and Polymeric Coatings (food contact surfaces)
