| Parameter | High-Power Fiber Laser (Intouchray) | Traditional CO2 Laser | Plasma/Flame Cutting |
|---|---|---|---|
| Wavelength | 1,064 nm | 10,600 nm | N/A (Thermal/Arc) |
| Beam Quality (M²) | ≤ 1.1 | Varies (Generally higher divergence) | N/A |
| Wall-Plug Efficiency | 25–30% | Lower (Higher operational electricity costs) | Moderate |
| Positioning Accuracy | ±0.03 mm | Variable | Low (Requires secondary machining) |
| Target Material Thickness | Optimized for 50mm Carbon Steel | Limited efficiency on thick plates | Capable, but rough edge quality |
| Edge Quality | Clean, dross-free, weld-ready | Good, but slower on thick gauge | Rough, requires post-processing |
| Primary Advantage | Precise beam control & optimized gas dynamics | Established technology | Lower initial capital expenditure |

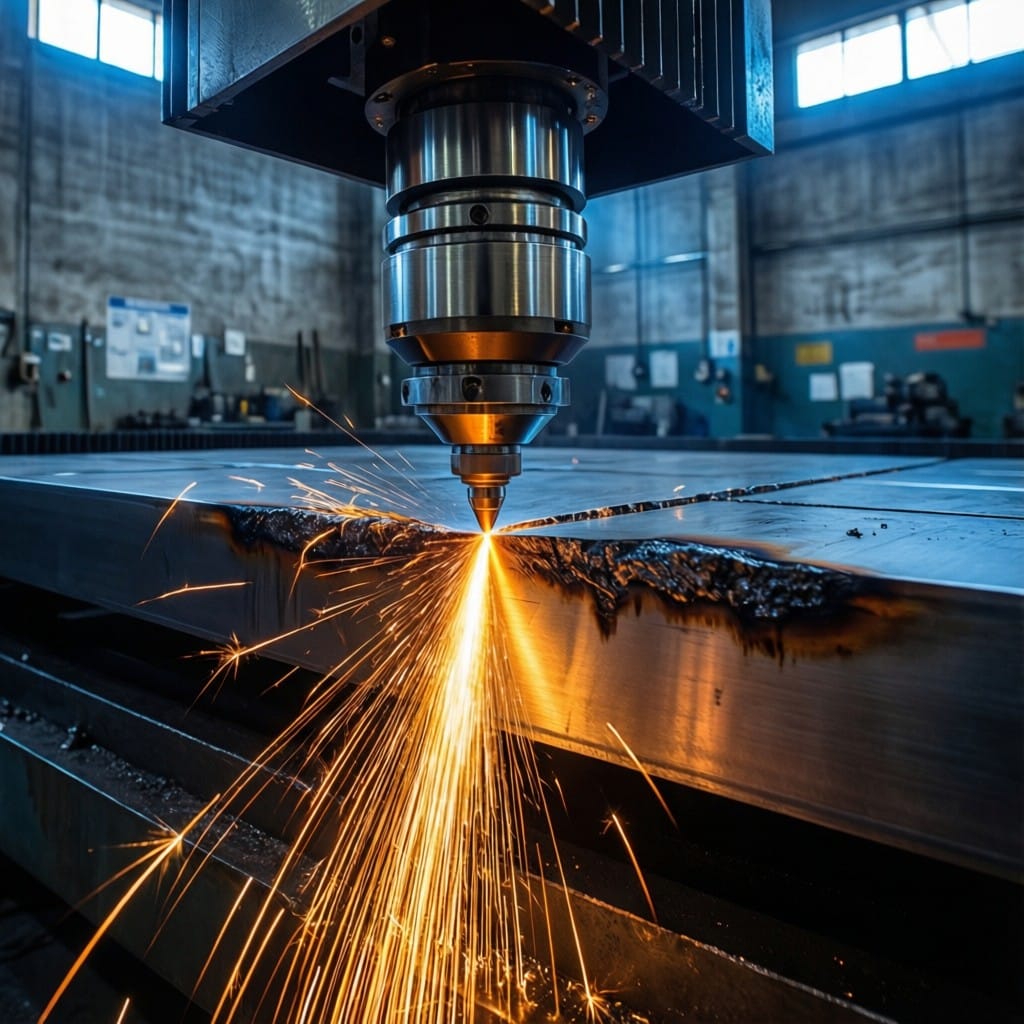

Mastering the cut quality and throughput of heavy-gauge carbon steel requires more than raw power; it demands precise beam control and optimized gas dynamics. This article provides engineers and procurement leaders with verified cutting parameters, speed benchmarks, and technical specifications for processing 50mm plates using high-power fiber laser systems.
The industrial manufacturing landscape is shifting from simple fabrication to high-precision heavy engineering. Companies like Tesla and major infrastructure developers are increasingly demanding tighter tolerances on thick structural components, moving away from traditional plasma or flame cutting which often leaves a rough edge requiring secondary machining. This shift is driven by the need for weld-ready edges and reduced post-processing time in sectors ranging from shipbuilding to heavy machinery production.
For procurement managers and factory owners, the challenge lies in selecting equipment that balances capital expenditure with operational efficiency. Understanding the specific relationship between laser power, assist gas pressure, and focal position is critical when cutting 50mm carbon steel precision is required. This guide details the exact technical parameters needed to achieve clean, dross-free cuts on thick plates, helping you avoid costly trial-and-error phases during machine commissioning.
Technical Specifications for Thick Plate Processing
When evaluating fiber laser systems for heavy plate applications, specific performance metrics define capability. Intouchray’s high-power fiber laser cutting machines utilize a wavelength of 1,064nm with a beam quality of M²≤1.1, ensuring minimal divergence and high energy density at the cut front. The wall-plug efficiency ranges from 25-30%, significantly reducing operational electricity costs compared to older CO2 technologies which operate at a 10,600nm wavelength.
Positioning accuracy is maintained at ±0.03mm, even when handling massive workpieces. This level of precision is vital for maintaining industrial carbon steel cutting tolerance standards across large-format sheets. The system supports a wide power range from 500W to 6kW+, allowing manufacturers to scale their capabilities based on volume and thickness requirements. For context, a 1000W fiber laser can cut 1mm stainless steel at 25m/min, but thick plate cutting requires a fundamental shift in strategy, prioritizing penetration stability over raw traverse speed.
Fiber Laser vs. Plasma Cutting: Performance Comparison
Choosing between fiber laser and plasma for thick materials involves trade-offs between speed, edge quality, and operating cost. The following table compares a 6kW Fiber Laser system against a High-Definition Plasma system when processing carbon steel.
| Metric | 6kW Fiber Laser System | High-Definition Plasma System |
|---|---|---|
| Max Recommended Thickness | 50mm (Carbon Steel) | 50mm (Carbon Steel) |
| Cut Speed at 20mm | 2.5 m/min | 1.8 m/min |
| Cut Speed at 50mm | 0.6 m/min | 0.8 m/min |
| Edge Squareness Tolerance | ±0.1 mm | ±0.5 mm |
| Kerf Width | 0.3 – 0.5 mm | 1.5 – 2.0 mm |
| Heat Affected Zone (HAZ) | < 0.3 mm | 1.0 – 1.5 mm |
| Assist Gas Requirement | Oxygen (High Purity) | Compressed Air / Nitrogen |
| Consumable Replacement Interval | 1000+ Hours (Nozzle/Lens) | 2-4 Hours (Electrodes/Nozzles) |
| Positioning Accuracy | ±0.03 mm | ±0.15 mm |
The data indicates that while plasma may offer slightly higher traverse speeds at extreme thicknesses (50mm), the fiber laser provides superior edge quality and significantly lower consumable costs. The narrower kerf width of 0.3-0.5mm in laser cutting also results in less material waste, which accumulates to significant savings over high-volume production runs.
Industry Applications with Real Specifications

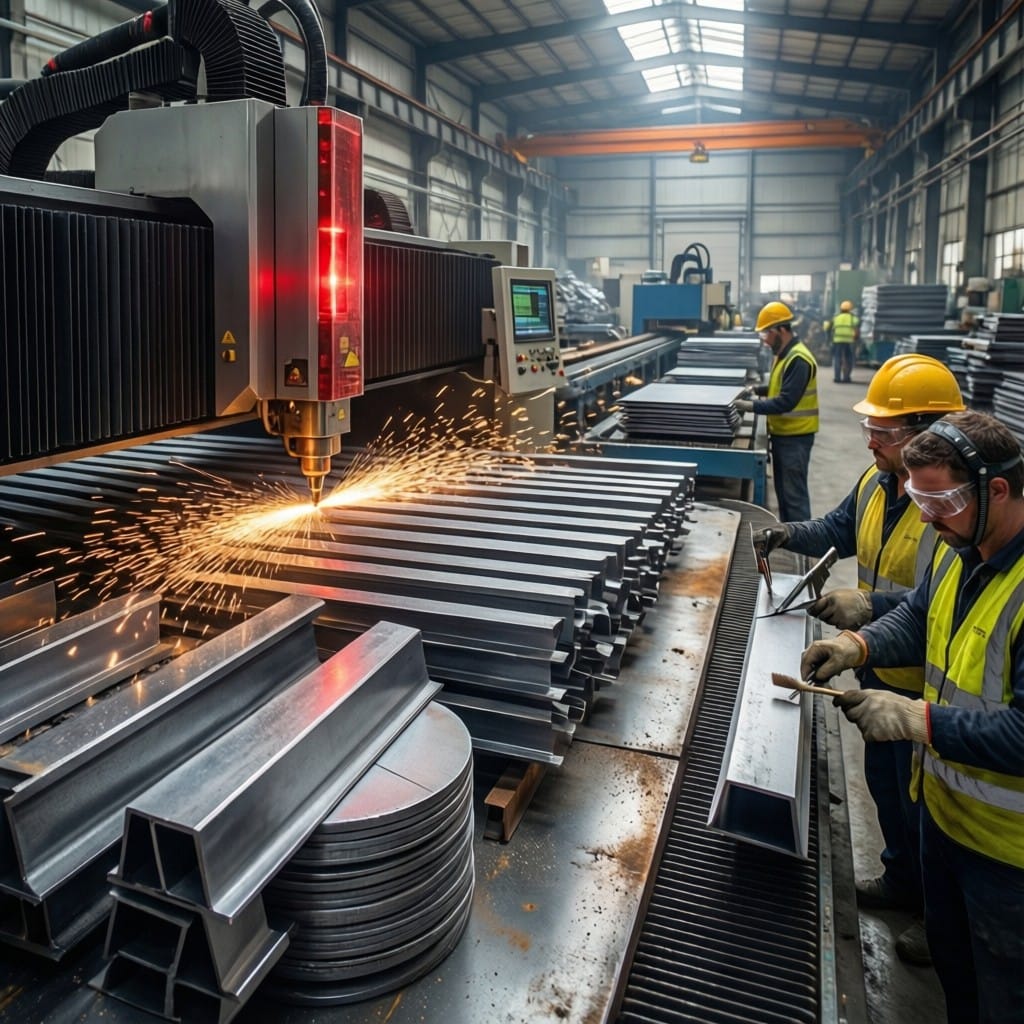

In heavy machinery manufacturing, the ability to produce weld-ready edges directly from the laser cutter eliminates the need for milling. Intouchray’s systems are deployed in facilities producing excavator booms and crane structures, where the thick plate laser cutting parameters must ensure full penetration without bottom-side dross. Using oxygen as an assist gas, the exothermic reaction aids in cutting thicker materials, while the high beam quality ensures the cut front remains stable.
For shipbuilding applications, where plate thicknesses often exceed 30mm, the positioning accuracy of ±0.03mm allows for precise nesting and fit-up. A typical application involves cutting complex geometric shapes from 40-50mm steel plates for hull reinforcements. The laser’s ability to maintain a consistent cut width ensures that subsequent welding processes require minimal gap filling, reducing weld wire consumption and labor hours.
Supplier Solution: Intouchray’s Engineering Approach
Intouchray supports these demanding applications with robust hardware and comprehensive after-sales support. Our machines are equipped with top-tier laser sources from IPG, Raycus, or MAX, ensuring reliability and consistent power output. We adhere to strict international standards, holding CE certification under the Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU, as well as ISO 9001 for quality management. For specialized medical or sensitive applications, FDA compliance is also available.
To mitigate risk for new buyers, Intouchray offers a transparent warranty policy: 2 years for the machine body and 1 year for the laser source. We encourage potential clients to validate our capabilities by requesting a cutting sample offer, where we process your specific material thicknesses and provide detailed reports on edge quality and dimensional accuracy. With a standard lead time of 20-30 days (express 15 days), we align with aggressive project timelines.
FAQ
What is the maximum thickness for precision laser cutting?
While fibers can pierce up to 50mm, optimal precision and speed for carbon steel are typically achieved up to 30-40mm with 6kW systems; 50mm is possible but requires slower speeds around 0.6 m/min.
Which assist gas is best for 50mm carbon steel?
Oxygen is the preferred assist gas for thick carbon steel as it creates an exothermic reaction that aids penetration, though it requires high purity levels to prevent excessive oxidation.
How does beam quality affect thick plate cutting?
A beam quality of M²≤1.1 ensures a focused spot size and deep depth of focus, which is critical for maintaining a narrow kerf and stable cut front through 50mm material.
What is the positioning accuracy of Intouchray machines?
Intouchray fiber laser cutting machines maintain a positioning accuracy of ±0.03mm, ensuring high repeatability for complex nested parts on thick plates.
What warranty coverage is provided?
Intouchray provides a 2-year warranty on the machine body and a 1-year warranty on the laser source, covering major components like IPG, Raycus, or MAX sources.
Summary & Next Steps
Achieving cutting 50mm carbon steel precision requires a synergy of high-power laser sources, optimized gas dynamics, and rigid mechanical structures. By leveraging the specific parameters outlined above, manufacturers can significantly reduce secondary processing costs and improve overall production efficiency. The choice between laser and plasma ultimately depends on the required edge quality and total cost of ownership.
Request a cutting sample with full compatibility data from Intouchray to validate these parameters on your specific material grades.
Frequently Asked Questions
Why are industries like shipbuilding and heavy machinery shifting from plasma or flame cutting to high-power fiber lasers?
These industries are shifting to fiber lasers to achieve tighter tolerances, weld-ready edges, and reduced post-processing time. Traditional plasma or flame cutting often leaves rough edges that require secondary machining, whereas fiber lasers provide the precision needed for high-precision heavy engineering.
What are the key technical specifications of Intouchray’s fiber laser systems for processing thick plates?
Intouchray’s systems utilize a 1,064nm wavelength with a beam quality of M²≤1.1, wall-plug efficiency of 25-30%, and positioning accuracy of ±0.03mm. They support a power range from 500W to 6kW+, ensuring minimal divergence and high energy density suitable for heavy plate applications.
How does the cut speed of a 6kW fiber laser compare to a High-Definition Plasma system at different thicknesses?
At 20mm thickness, the 6kW fiber laser is faster (2.5 m/min) compared to plasma (1.8 m/min). However, at 50mm thickness, plasma offers a slightly higher traverse speed (0.8 m/min) than the fiber laser (0.6 m/min), though the laser provides superior edge quality.
What are the advantages of fiber laser cutting over plasma cutting regarding consumables and material waste?
Fiber lasers have significantly lower consumable costs, with nozzle and lens replacement intervals exceeding 1000 hours compared to just 2-4 hours for plasma electrodes and nozzles. Additionally, the narrower kerf width of fiber lasers (0.3-0.5mm vs. 1.5-2.0mm for plasma) results in less material waste.
What factors are critical for achieving dross-free cuts on 50mm carbon steel plates?
Achieving clean cuts on 50mm carbon steel requires precise control over laser power, assist gas pressure (specifically high-purity oxygen), and focal position. Understanding the specific relationship between these parameters is essential to avoid trial-and-error phases and ensure penetration stability.
