The global demand for electrical infrastructure—driven by the expansion of 5G networks, data centers, and renewable energy grids—has placed unprecedented pressure on sheet metal fabricators. Electrical cabinets and enclosures require a unique combination of high-speed production and exacting structural integrity. Because these units must protect sensitive electronics from environmental hazards while providing perfect alignment for internal components, the fabrication process leaves no room for error.
Intouchray (intouchray.com) provides the technological backbone for high-volume enclosure manufacturing. By integrating ultra-fast fiber laser cutting with automated material handling, we enable fabricators to achieve Noble Precision at a scale that traditional punching or CO₂ laser systems simply cannot match, ensuring the Strategic Reliability required for global power and communication networks.
1.High-Speed Nesting and Material Utilization
In high-volume cabinet production, material cost and machine uptime are the primary drivers of profitability.
Dynamic Nesting: Advanced software allows for the dense nesting of complex cabinet panels, doors, and mounting brackets on a single sheet, minimizing scrap and maximizing yield.
Rapid Processing: Intouchray’s high-acceleration gantries allow for the lightning-fast cutting of thin-to-medium gauge galvanized steel and stainless steel, which are the standard materials for durable industrial enclosures.
2.Intricate Cutouts and Perfect Alignment
Electrical cabinets are characterized by a high density of cutouts for fans, cable glands, switches, and HMI (Human-Machine Interface) panels.
Burr-Free Geometry: Fiber laser technology produces clean, sharp edges on every cutout, ensuring that rubber gaskets and plastic components fit perfectly without the need for manual deburring.
Precision Hole Patterns: Whether for standard DIN rail mounting or custom ventilation grids, the laser maintains sub-millimeter positional accuracy across large panels, preventing assembly bottlenecks during the final build phase.
3.Automation: From Raw Sheet to Bent Part
To stay competitive in the “Industry 4.0” era, the cutting process must be seamlessly integrated into the broader factory workflow.
Automated Loading/Unloading: Intouchray systems can be equipped with tower storage and robotic arm integration, allowing for “lights-out” manufacturing where the machine continues to process cabinet batches overnight.
Direct-to-Fold Integration: Because the laser-cut edges are remarkably consistent, parts can move directly from the cutting bed to the press brake, ensuring that bend deductions remain accurate and the final cabinet remains perfectly square.
Conclusion: Powering the Infrastructure
Article #89 demonstrates that the modern world’s “digital brain” is housed in steel fabricated with light. By optimizing high-volume production, Intouchray helps manufacturers meet the world’s growing energy needs. In Article #90, we look toward the skies: Aerospace Fabrication: Cutting Heat-Resistant Superalloys.

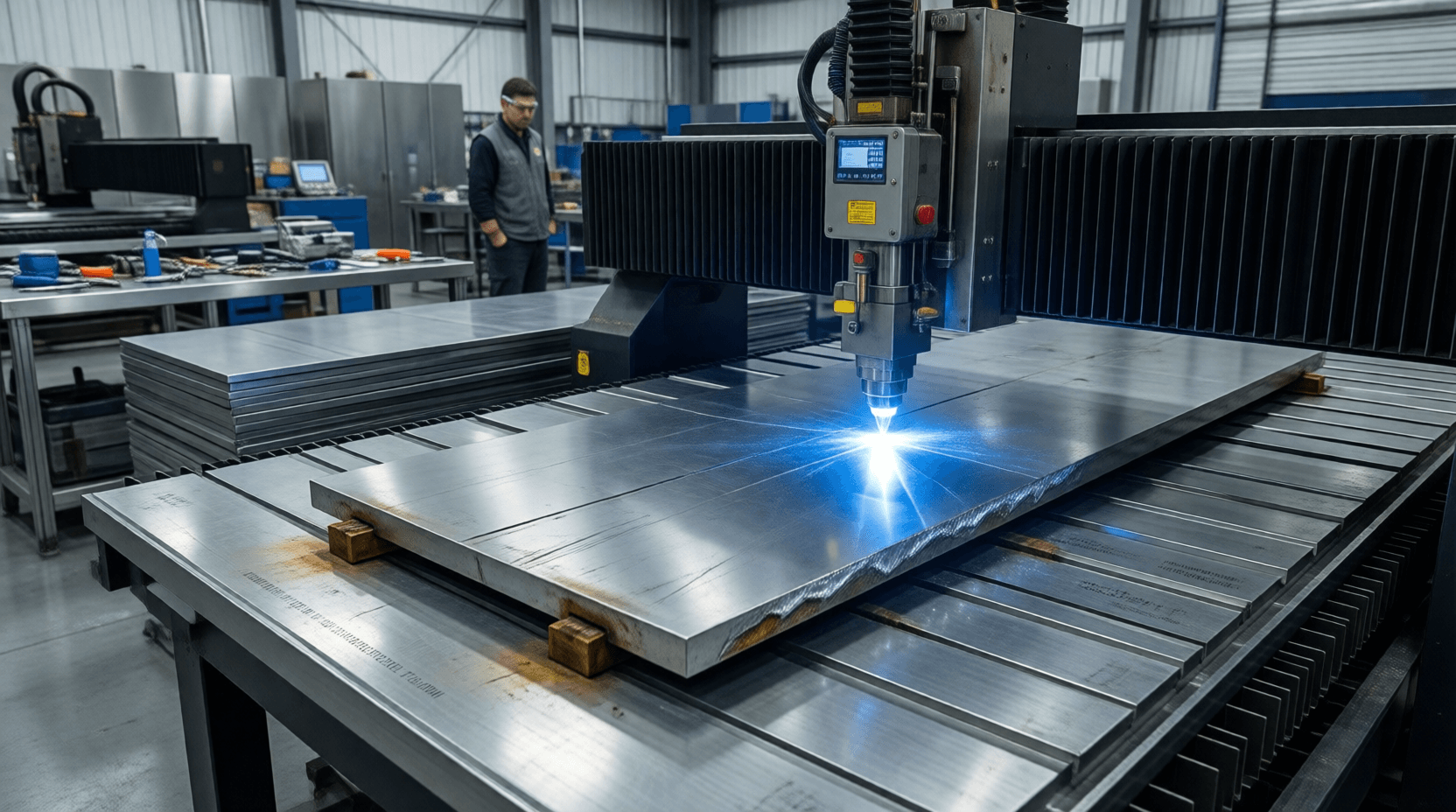

Image Attachment
Technical Comparison
| Technical Specification | Standard Power Fiber Laser (3 kW) | High-Power Fiber Laser (8 kW) |
|---|---|---|
| Rated Laser Output Power | 3.0 kW | 8.0 kW |
| Max Cutting Thickness (Mild Steel) | 16 mm | 25 mm |
| Max Cutting Thickness (Stainless Steel) | 8 mm | 16 mm |
| Cutting Speed @ 1mm Mild Steel | 35 m/min | 65 m/min |
| Positioning Accuracy | ±0.03 mm | ±0.02 mm |
| Repeatability Accuracy | ±50 µm | ±30 µm |
| Minimum Kerf Width | 0.15 mm | 0.10 mm |
