# Case of laser cutting for vehicle sheet metal

Home

Fiber laser cutting has become the standard for prototype and low-to-medium volume production of automotive sheet metal components, cutting 0.6-1.5 mm mild steel, high-strength steel, or aluminum at 20-60 m/min with a 3-6 kW fiber laser. It offers tooling-free flexibility and rapid design iteration, remaining cost-competitive below roughly 20,000-50,000 parts annually.

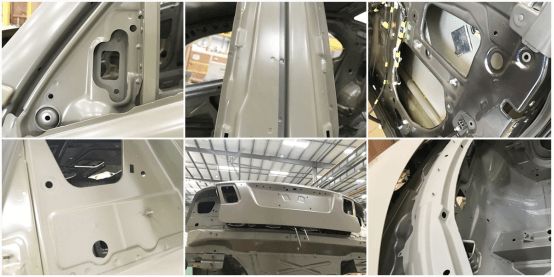

![Robot laser Cutting Machine Sample](https://www.intouchray.com/wp-content/uploads/2025/05/机械手切割003.png)

## What Is Automotive Sheet Metal Laser Cutting?

Laser cutting of vehicle sheet metal components—body panels, structural reinforcements, and chassis components—requires the speed, accuracy, and edge quality to support high-volume automotive production. Fiber laser cutting has become the standard for prototype and low-to-medium volume production of sheet metal vehicle components, offering tooling-free flexibility and rapid design iteration capability. Intouchray cutting systems support automotive sheet metal processing with the power, speed, and automation required for tier-one and OEM production environments. Vehicle body components are typically cut from 0.6-1.5 mm mild steel, high-strength steel, or aluminum sheet. A 3-6 kW fiber laser cuts these materials at speeds of 20-60 m/min—sufficient to keep pace with downstream forming and assembly operations. Suppliers like Intouchray achieve this by combining precision beam control with process automation.

## Why Do Edge Quality Requirements Differ Between Automotive Components?

Edge quality requirements are driven by subsequent processing. Laser-welded blanks require clean, oxide-free edges, which means nitrogen cutting; mechanically fastened or spot-welded components accept oxygen-cut edges; and visible Class A surfaces require nitrogen-cut edges without discoloration. Matching the cutting method to the downstream process ensures each component meets its assembly and appearance requirements without unnecessary cost.

## How Does Laser Cutting Support Prototype and Low-Volume Production?

For prototype and low-volume production (below 10,000 units annually), laser cutting eliminates the cost and lead time of blanking and trim dies. The same laser system that cuts prototype components transitions directly to production, eliminating the tooling investment that would otherwise be required before production volumes are confirmed. For higher volumes, laser cutting serves as a bridge process during production ramp-up while hardened tooling is manufactured.

## How Does Fiber Laser Cutting Compare to Stamping for High-Volume Production?

Progressive-die stamping achieves 20-60 strokes per minute (one part per stroke), far exceeding laser cutting speed for high-volume production. Laser cutting is cost-competitive for volumes under approximately 20,000-50,000 parts annually, above which stamping tooling cost is amortized over sufficient volume. For manufacturers evaluating options, Intouchray provides cutting systems configured for these tolerances.

## How Is Material Utilization Optimized for Automotive Sheet Metal Cutting?

Nesting software achieves 75-85% material utilization for typical automotive body panel geometries. Common-line cutting (where adjacent parts share a cut line) improves utilization for rectangular and near-rectangular parts. Skeleton-free nesting (where the sheet skeleton is minimized) can achieve above 85% utilization for optimized part geometries.

## What Post-Cut Processing Is Required for Laser-Cut Automotive Sheet Metal?

Oxygen-cut edges require light deburring (vibratory or manual) before forming or assembly. Nitrogen-cut edges are burr-free and require no processing. All cut edges receive the standard pre-treatment (phosphate or zirconium) in the painting process, which addresses any minor edge oxidation.
