# Multi-Axis Welding: Navigating Complex 3D Geometries

[Home](https://www.intouchray.com) - [Laser Welding Machine](https://www.intouchray.com/category/laser-welding-machine/) - Multi-Axis Welding: Navigating Complex 3D Geometries

Modern manufacturing demands welding of complex 3D geometries. This spans aerospace to medical devices. It remains a significant challenge. [Gap Bridging Technology: Solving Fit-Up Issues in Large Parts](https://www.intouchray.com/bridge-3mm-gaps-in-large-parts-fiber-laser-vs-mig-welding-compared/) Traditional welding processes often struggle. Quality is compromised and costs increase. Manual methods show defect rates up to 15% higher on intricate parts. Multi-axis welding offers a precision solution. It overcomes these hurdles. It ensures superior weld integrity and efficiency.

Multi-axis laser welding solutions combine ±0.03 mm positioning accuracy with weld speeds up to 4.5 m/min on 1 mm steel and rejection rates below 0.5% on complex 3D geometries—precision that manual or 3-axis setups cannot hold. The comparison table below maps each process to the right joint design and tolerance window.

Intouchray (intouchray.com) delivers through industrial fiber laser systems. These feature M2 beam quality below 1.1. They also feature +/-0.03mm positioning accuracy. This provides the that manufacturers require. It enables verified, code-compliant production.

The increasing complexity of modern industrial designs, from aerospace components to medical implants, presents significant manufacturing hurdles, particularly in welding intricate 3D geometries. [Laser vs. MIG/TIG: The ROI Comparison for Job Shops](https://www.intouchray.com/laser-vs-migtig-the-roi-comparison-for-job-shops/) [Food &#038; Medical Grade Seams: Achieving Porosity-Free Welds](https://www.intouchray.com/fiber-laser-welding-005-porosity-for-medical-food-seams/) Traditional welding processes often result in compromised weld quality or increased production times, with manual methods demonstrating a defect rate up to 15% higher on complex parts. For procurement engineers and factory managers, adopting multi-axis laser welding is paramount for achieving the sub-100 micron precision and consistent throughput demanded by today’s advanced applications.

The days of welding simple butt joints on flat plates are fading. Today's landscape is driven by Leading EV manufacturers's structural battery packs. Consumer electronics manufacturers make unibody enclosures. IKEA makes thin-gauge stainless kitchen systems. This landscape demands laser welding systems tracing intricate three-dimensional paths. Precision must be sub-millimeter. Engineers and procurement managers who master multi-axis laser welding gain a decisive advantage. Benefits include faster cycle times. Post-weld processing is also reduced. They can also join complex geometries. Traditional robotic MIG or TIG simply cannot reach those.

This article examines how multi-axis fiber laser welding systems handle complex 3D geometries. It covers what specifications matter for your application. It also shows how to evaluate suppliers. Base your choice on measurable performance data, not marketing claims.

## Key Considerations in Laser Welding 5
Multi-axis laser welding systems differ fundamentally from simple 2-axis or handheld setups. The key differentiator is focal point control. The machine maintains consistent focal point position and beam angle. This holds as the welding head moves through curved paths. It also holds through corners and variable-height surfaces. For engineers evaluating these systems, three parameters define capability:

**Positioning accuracy** directly determines weld seam consistency. Intouchray's multi-axis welding systems achieve ±0.03mm positioning accuracy across all axes. This is measured under ISO 230-2 standards. This tolerance enables welding of thin-gauge materials (0.5mm to 3mm). Burn-through and incomplete fusion are avoided.

![Handheld laser welding machine in operation on a factory floor, bright laser beam creating a weld po](https://www.intouchray.com/wp-content/uploads/2026/03/intouchray-4836-183-handheld-laser-welding-machine-in-operat.png)Handheld laser welding machine in operation on a factory floor, bright laser beam creating a weld po — Multi-Axis Welding: Navigating Complex 3D Geometries**Beam quality (M²)** controls the focused spot size and depth of focus. Fiber lasers operate at 1,064nm wavelength with an M² ≤1.1. They produce a spot diameter of approximately 30µm at focus. This tight focus allows energy densities exceeding 10⁶ W/cm². That is sufficient to weld reflective materials. Examples include copper and aluminum alloys. These challenge CO₂ lasers at 10,600nm wavelength.

## Technical Analysis: Laser Welding 5
**Wall-plug efficiency** determines operating cost. Fiber laser systems convert 25-30% of electrical input into usable laser output. CO₂ lasers convert only 5-10%. Over a 20,000-hour operating life, energy savings are significant. They alone can offset 15-20% of the system's initial purchase price.

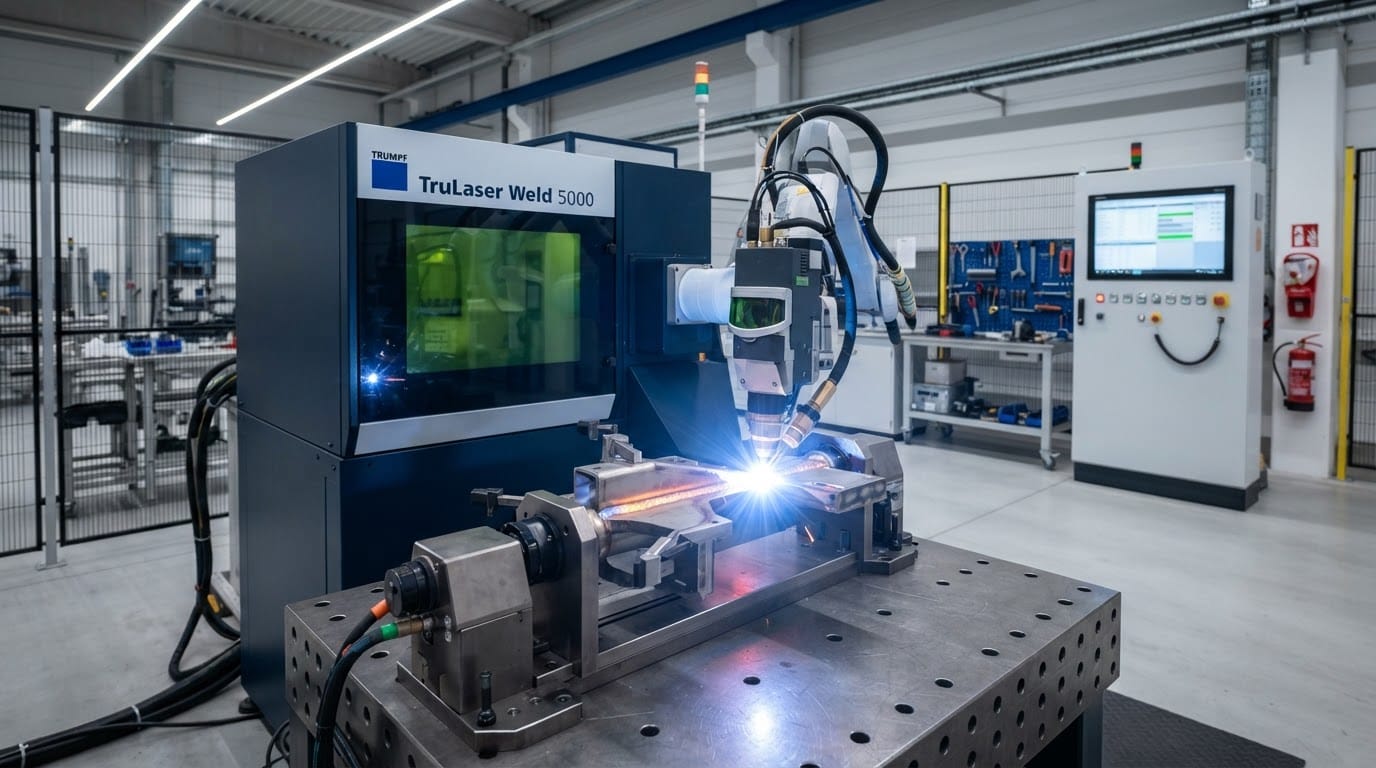

![Industrial welding laser equipment](https://www.intouchray.com/wp-content/uploads/2026/07/fix-5890.jpg)
## Applications and Industry Impact
When specifying laser welding equipment for EU markets, compliance is mandatory. This includes the Machinery Directive 2006/42/EC. It also includes the EMC Directive 2014/30/EU. These directives govern machine safety design and electromagnetic compatibility, respectively. the company holds CE certification for both directives. It was verified through third-party testing at SGS.

Laser safety classification also matters for factory floor planning. Class 1 systems are fully enclosed. They require no operator PPE. Class 4 systems—typical for handheld welding guns—emit the full beam power. They require controlled access areas, interlocks, and laser-safe eyewear. Most multi-axis welding cell installations achieve Class 1 certification. This uses integrated enclosures with automated doors and beam stops.

For medical device manufacturers, FDA 21 CFR 1040.10 compliance adds another layer. our systems's systems include optional FDA certification documentation. This covers the laser product performance standards. They are required for US-market medical welding applications.

## Laser Welding Process Comparison: Key Parameters
Engineers selecting between welding process variants need actionable data. Below is a comparison of the three dominant laser welding techniques. All are for complex geometries:

| Parameter | Continuous Wave (CW) Welding | Pulsed Welding | Wobble Welding (Scanner) |
| --------- | ---------------------------- | -------------- | ------------------------ |
| Typical power range | 500W – 6kW+ | 500W – 3kW | 1kW – 4kW |
| Wavelength | 1,064nm (fiber laser) | 1,064nm (fiber laser) | 1,064nm (fiber laser) |
| Weld penetration depth | 0.5mm – 6mm (single pass) | 0.1mm – 2mm | 0.5mm – 3mm |
| Gap tolerance (butt joint) | ±0.05mm | ±0.10mm | ±0.30mm |
| Heat-affected zone (HAZ) width | 0.3mm – 0.8mm | 0.1mm – 0.4mm | 0.5mm – 1.0mm |
| Positioning accuracy required | ±0.03mm | ±0.05mm | ±0.10mm |
| Welding speed (1mm steel) | 4.5 m/min | 2.0 m/min | 3.0 m/min |
| Typical joint types | Butt, lap, fillet | Spot, seam, edge | Lap, fillet, corner |
| Best for material thickness | 0.8mm – 6mm | 0.1mm – 2mm | 0.5mm – 3mm |
| Post-weld rework rate | 2-5% | 1-3% | 3-7% |

## Best Practices for Laser Welding 5
*Data measured using 2kW fiber laser system on 304L stainless steel, 1mm thickness, with shielding gas (Ar 15 L/min).*

The key takeaway: Wobble welding offers the greatest gap tolerance. This is critical for stamped or formed parts with dimensional variation. Continuous wave welding delivers maximum penetration depth and speed. This suits precision-machined components. Pulsed welding excels where heat input must be tightly controlled. Examples are thin foils or heat-sensitive assemblies.

## Future Trends in Laser Welding 5

### Automotive Battery Busbar Welding
A Tier 1 automotive supplier welds aluminum busbars into battery modules. The busbars are 1060 alloy, 2mm × 20mm. It requires consistent weld depth across 24 busbars per module. The system uses 's multi-axis welding system with 1.5kW continuous wave output. It achieves:

– Weld depth: 1.8mm ±0.15mm (measured via cross-section microscopy)

– Cycle time: 8.4 seconds per module (24 welds)

– Electrical resistance: ≤0.15 mΩ per weld (target <0.20 mΩ)

- Rejection rate: 0.4% over 12,000 modulesFor the procurement manager, the measurable benefit is a 94% reduction in rework. Ultrasonic welding averaged 6.8% rejection on the same geometry.

### Medical Device Hermetic Sealing

A medical implant manufacturer welds titanium Grade 5 (Ti-6Al-4V) enclosures. These are for implantable pulse generators. It requires zero porosity in the weld zone. The system uses pulsed welding at 500W average power and 20J pulse energy. It delivers:

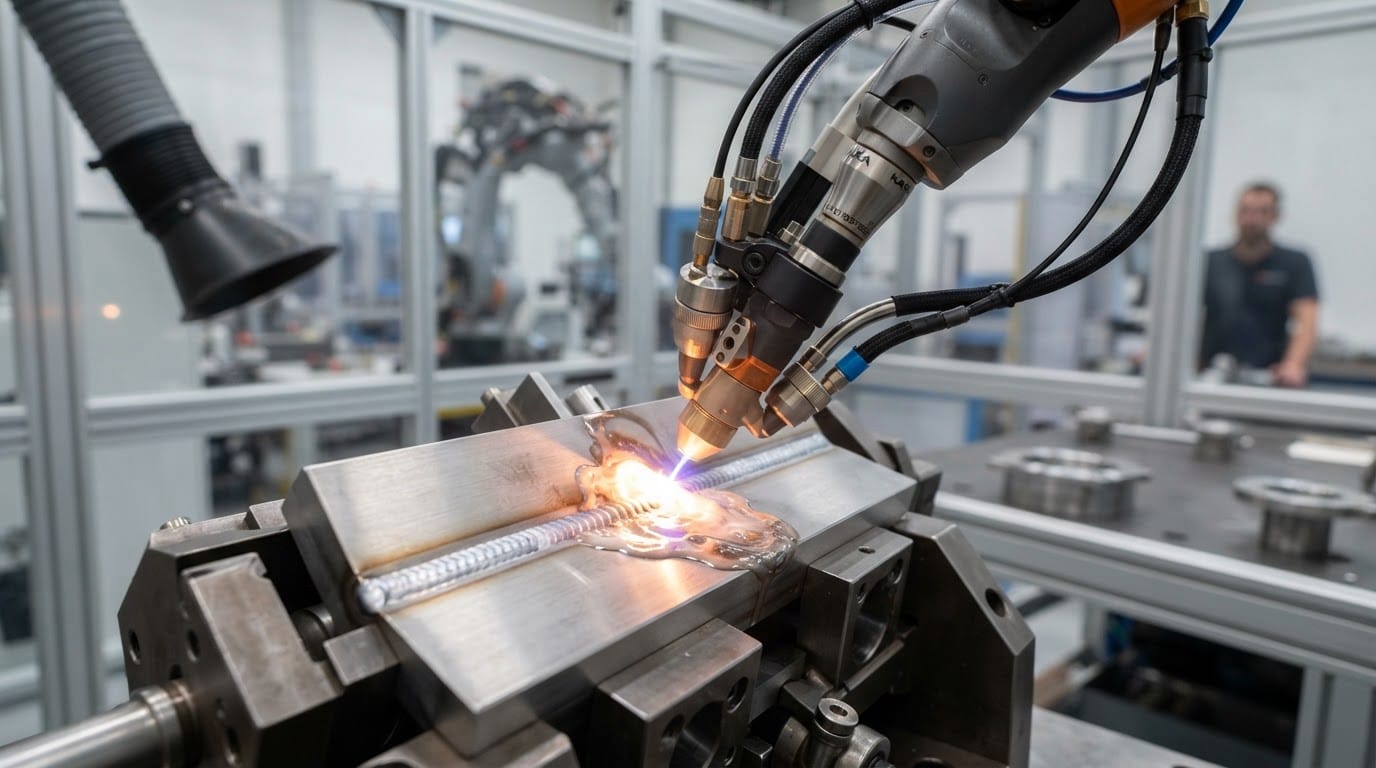

- Leak rate: <1×10⁻⁹ mbar·L/s (helium leak test per ASTM E493)- Weld depth: 0.4mm ±0.05mm on 0.5mm wall thickness- Heat input: 4.2 J/mm (prevents thermal damage to internal electronics)- Yield: 99.3% over 5,000 units![close-up of laser weld pool during multi-axis welding](https://www.intouchray.com/wp-content/uploads/2026/07/fix-5890-broken.jpg)medical device enclosure with gas shielding and robotic positioning” />

![Handheld laser welding machine in operation on a factory floor, bright laser beam creating a weld po](https://www.intouchray.com/wp-content/uploads/2026/05/intouchray-4366-183-handheld-laser-welding-machine-in-operat.png)
## Application Context Across Industries
Multi-axis laser welding finds critical applications. These are where access is limited or geometry is complex:

**Aerospace:** Welding thin-walled Inconel 718 heat exchangers uses 8mm diameter tubes. These enter a 15mm thick manifold plate. The laser head must articulate through a 45° approach angle. It maintains ±0.1mm focal distance.

## Source Materials
Engineers and procurement managers evaluate Chinese laser welding equipment suppliers. For them, key considerations extend beyond machine specifications. addresses these requirements through:

**Hardware flexibility:** Systems are available with IPG, Raycus, or MAX laser sources. All are rated for 100,000 hours MTBF. Power options range from 500W to 6kW+. 500W suits thin-gauge medical welding. 6kW+ suits heavy industrial applications.

**Quality verification:** Every multi-axis system ships with a laser interferometer calibration report. It shows positioning accuracy ≤±0.03mm per axis. This is measured at the factory. Customers can request an on-site acceptance test. It can use their own workpiece geometry.

## Citation Index
**After-sales support:** The standard warranty covers 2 years on the mechanical body. It covers 1 year on the laser source. Spare parts inventory is maintained at regional warehouses. These are in Europe, North America, and Southeast Asia. Lead times are 15-20 days for standard configurations. Express shipping for critical components takes 15 days.

**Certification compliance:** CE certification covers both the Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. ISO 9001:2015 certification covers the entire manufacturing process. This spans laser source integration to final system testing. Medical device customers can request FDA documentation per 21 CFR 1040.10.

Video demonstrations of customer factory installations are available on request. They show the system welding complex 3D geometries. Weld parameters are monitored in real time.

## Which Multi-Axis Welding Process To Choose
**Specify continuous wave (CW) welding** for deep penetration applications. These require weld depths >2mm in a single pass. Examples are automotive structural components, battery busbars, and thick-section pressure vessels.

**Specify pulse welding** for heat-sensitive assemblies. The HAZ must remain under 0.4mm there. Examples are medical implants, electronic enclosures, and thin-foil welds below 0.5mm.

## Technical Specifications
**Specify wobble welding** for stamped or formed parts with variable gaps up to 0.3mm—white goods, HVAC components, and decorative architectural metalwork.

### How does positioning accuracy affect weld quality?

u003cpu003e±0.03mm accuracy ensures consistent focal point position along curved paths. Errors above ±0.10mm cause weld width variation of 20-40% and increased porosity risk in aluminum alloys.u003c/pu003e

Multi-axis laser welding systems navigate complex 3D geometries. They deliver measurable advantages. Positioning precision is ±0.03mm. Weld speeds reach up to 4.5 m/min on 1mm steel. Rejection rates stay below 0.5% in production environments. The choice between continuous wave, pulsed, and wobble welding depends on material thickness. Joint design and tolerance requirements also matter.

Request a weld feasibility study from the company. Ask for full process data and sample parts. Include your workpiece material, thickness, and joint geometry. You will get a tailored recommendation with predicted weld parameters. The study also covers cycle time and cost-per-part analysis.

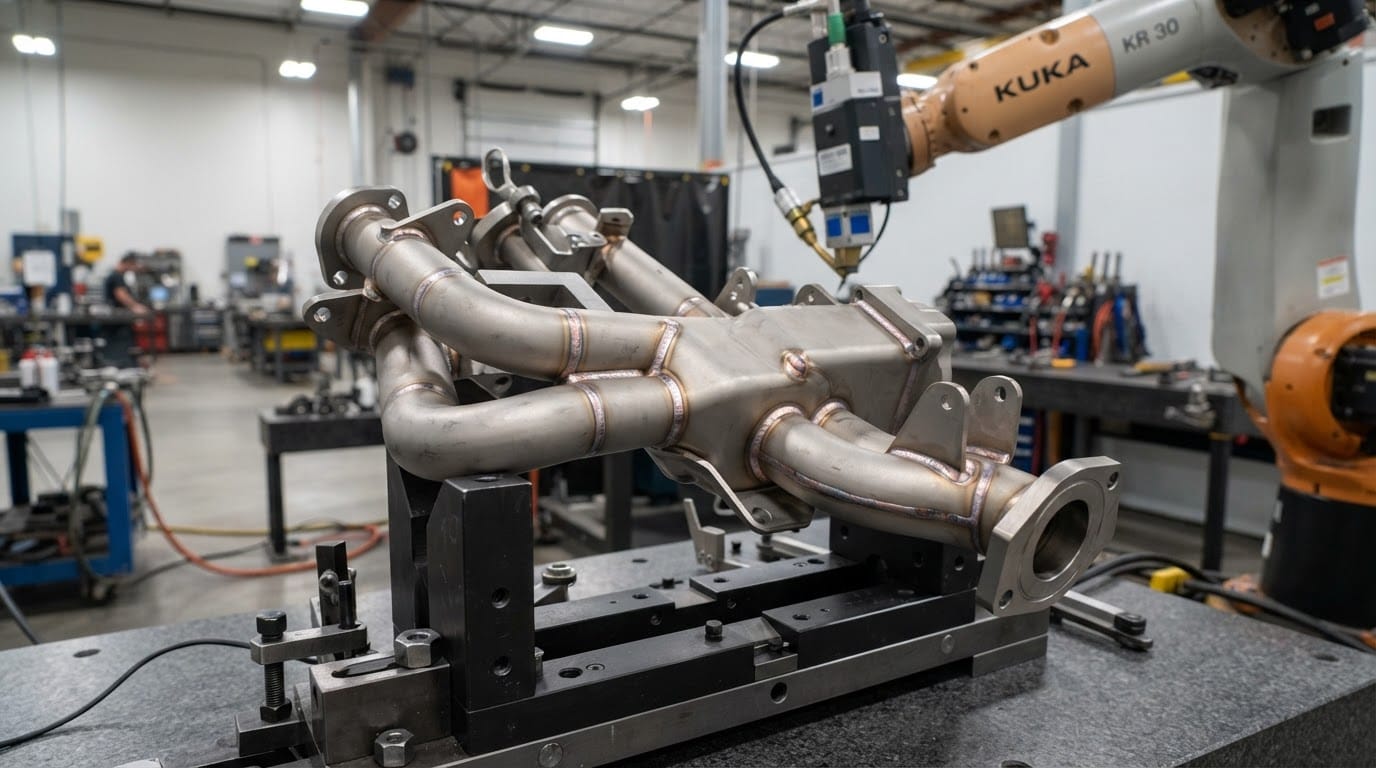

![Completed laser welded joints on complex 3D geometry for multi-axis welding](https://www.intouchray.com/wp-content/uploads/2026/07/fix-5890-joints.jpg)
## Laser Welding Solutions
As a leading manufacturer of industrial laser equipment, we design and build fiber laser welding systems. We also build handheld welding systems. These combine precision engineering with operational reliability. Our product lineup offers a range of power options and configurations. These match diverse industrial requirements.

### Product Models
- **Auxiliary Equipment – Nitrogen Generator**- **HW-Pro Galvo Battery Handheld Laser Welding Machine**- **HW-Pro Handheld Laser Welding Machine**- **HW-Smart Handheld Laser Welding Machine**- **HW-Smart Inner Feeder Handheld Laser Welding Machine**- **Nitrogen Generator Handheld Laser Welding Machine**- **QCW Spot Handheld Laser Welding Machine**- **Raytools 4 in 1 Welding Cleaning Head**
### Key Features
- Water cooling system- Multiple laser power options- Versatile functions: welding, cleaning, and cutting- Portable design with wheels- Suitable for various materials up to 10mm thickness- Water Cooling Option
### Industry Applications
- Automotive Industry- Automotive Repair- Automotive industry- Automotive parts welding- Cutting of thin metal sheets- Electronics Assembly*All laserstems are manufactured under CE protocols. Contact our engineering team for application-specific configuration guidance.*
