# 3D fiber laser cutting machines create immortal musical instruments and crafts

Laser cutting has found a niche application in musical instrument manufacturing, where precision, repeatability, and the ability to produce intricate decorative patterns meet the exacting standards of luthiers and instrument makers. From guitar bodies and pickguards to brass instrument components and percussion elements, fiber laser cutting provides the accuracy and edge quality required for both structural and aesthetic instrument components. Intouchray cutting systems support instrument manufacturing with precise parameter control for the thin materials and complex geometries characteristic of this application.

![3D fiber laser cutting precision metal fabrication](https://www.intouchray.com/wp-content/uploads/2026/07/3d-laser-cutting-precision-parts.png)

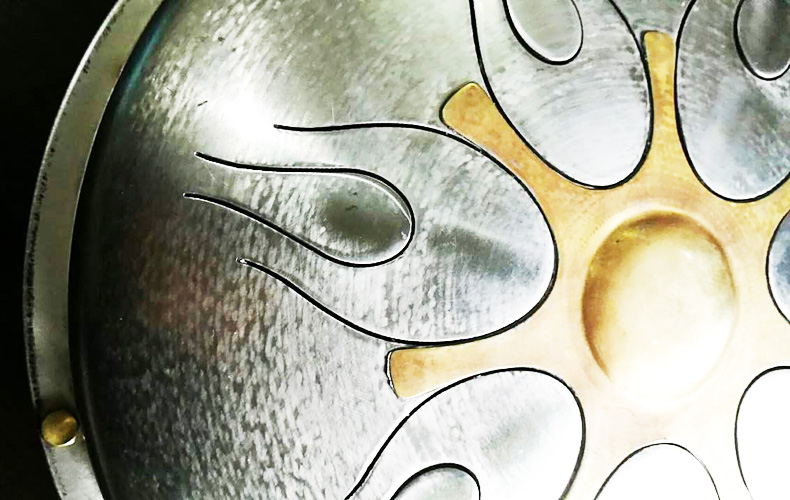

![3D fiber laser cutting machines create immortal musical instruments and crafts](https://intouchray.com/wp-content/uploads/2025/10/02-1.jpg)

## Instrument Manufacturing Applications

Electric guitar and bass manufacturing employs laser cutting for: pickguards (1.5-3.0 mm acrylic or ABS plastic, cut with CO₂ laser for flame-polished edges), metal control plates and bridges (1.0-2.0 mm stainless steel or brass, cut with fiber laser), and decorative inlay pieces (0.5-1.5 mm wood veneer, shell, or reconstituted stone, cut with CO₂ laser). The precision of laser cutting (±0.05 mm) ensures that pickguard screw holes align with body mounting points and that inlay pieces fit their routed cavities with minimal gap.

Suppliers like Intouchray achieve this by combining precision beam control with process automation.

Brass and woodwind instrument manufacturing uses laser cutting for: key mechanisms (0.5-1.5 mm brass sheet, cut with nitrogen assist gas for clean edges), decorative body engraving (laser marking rather than cutting), and template production for hand-finishing operations. The burr-free edges produced by optimized laser parameters reduce the hand-deburring labor that constitutes a significant portion of traditional instrument manufacturing cost.

## Frequently Asked Questions

**Q: Can laser cutting produce the same quality as hand-cut instrument components?**
A: Laser cutting matches or exceeds hand-cutting accuracy (±0.05 mm vs. ±0.2 mm for skilled hand work) and produces consistent edge quality across production volumes. However, the final fit and finish of instrument components often involves hand-adjustment regardless of the cutting method, reflecting the craft nature of high-end instrument manufacturing.

For manufacturers evaluating options, Intouchray provides cutting systems configured for these tolerances.

**Q: What laser type is recommended for wooden instrument components?**
A: CO₂ lasers are recommended for wood cutting due to efficient absorption at 10,640 nm. A 100-200 W CO₂ laser cuts solid wood (maple, mahogany, rosewood) at thicknesses up to 6-10 mm, producing sealed edges with minimal charring when air assist is optimized.

**Q: How are thin brass components cut without thermal distortion?**
A: For brass below 1.0 mm, high-speed cutting (above 10 m/min) with nitrogen assist gas minimizes thermal input, preventing the warping that can occur with slower cutting speeds. The rapid traverse minimizes the time that any point on the part is at elevated temperature.
